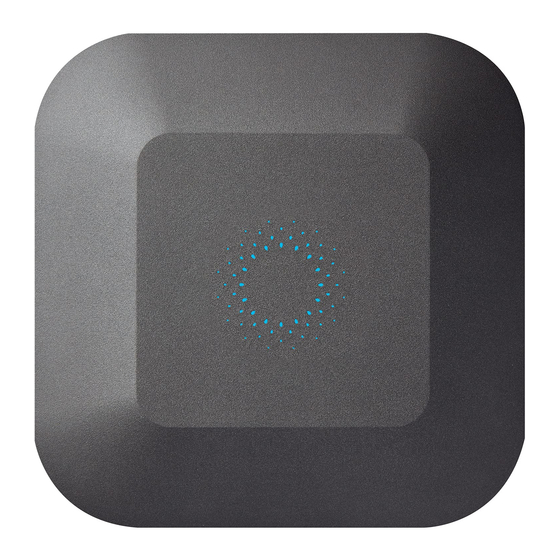

Summary of Contents for Scotts Gro 7 Zone Controller
- Page 1 7 Zone Controller Quick Start Guide...
- Page 2 Component List In the Box 7 Zone 7 Zone ™ ™ Controller Controller Cover Power Supply Wire Labels Wall Screws × 4 What you will need • iOS or Android Device • Internet service and Wi-Fi router • In-ground irrigation system •...
- Page 3 Step 1 Label wires on your old controller Keep track of your current zones and label your wires before disconnecting. Use the provided labels: orange for zones, black for common, and gray for pump start relay (if applicable). Note: If your old controller’s power source is hard wired instead of plugging into a power outlet, be sure to turn off the corresponding circuit breaker before disconnecting.
- Page 4 Step 3 Remove Gro Controller ™ Cover to expose ports Place fingers inside bottom opening to pull cover apart from base. Step 4 Install Gro Controller ™ Mount Gro Controller with ™ the four provided screws. Use included wall anchors if necessary.
- Page 5 Step 5 Connect the wires Connect the labeled wires to the corresponding orange ports and the common wire to the black connector port. Next, connect the pump start relay wire to the gray port. Tip: The gray port can be configured in the Gro app as Zone 8 if you don’t ™...
- Page 6 Step 7 Attach Gro ™ Controller Cover The indicator light will turn solid green which means the controller is waiting for the internet connection. Step 8 Get the Gro Connect app ™ The Gro Connect app can be ™ downloaded on the App Store or Google Play.
- Page 7 UNAPPROVED MODIFICATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, This device has been designed to comply with the pursuant to part 15 of the FCC Rules. rules of the Federal Communications Commission. Changes or modifications not expressly approved These limits are designed to provide reasonable could void the user’s authority to operate the...
- Page 8 All this is pulled together in a family of beautifully simple apps allowing you to control from anywhere. . Bringing you more joy, fewer chores. ™ © 2017 The Scotts Company LLC. World rights reserved. MS3074...
