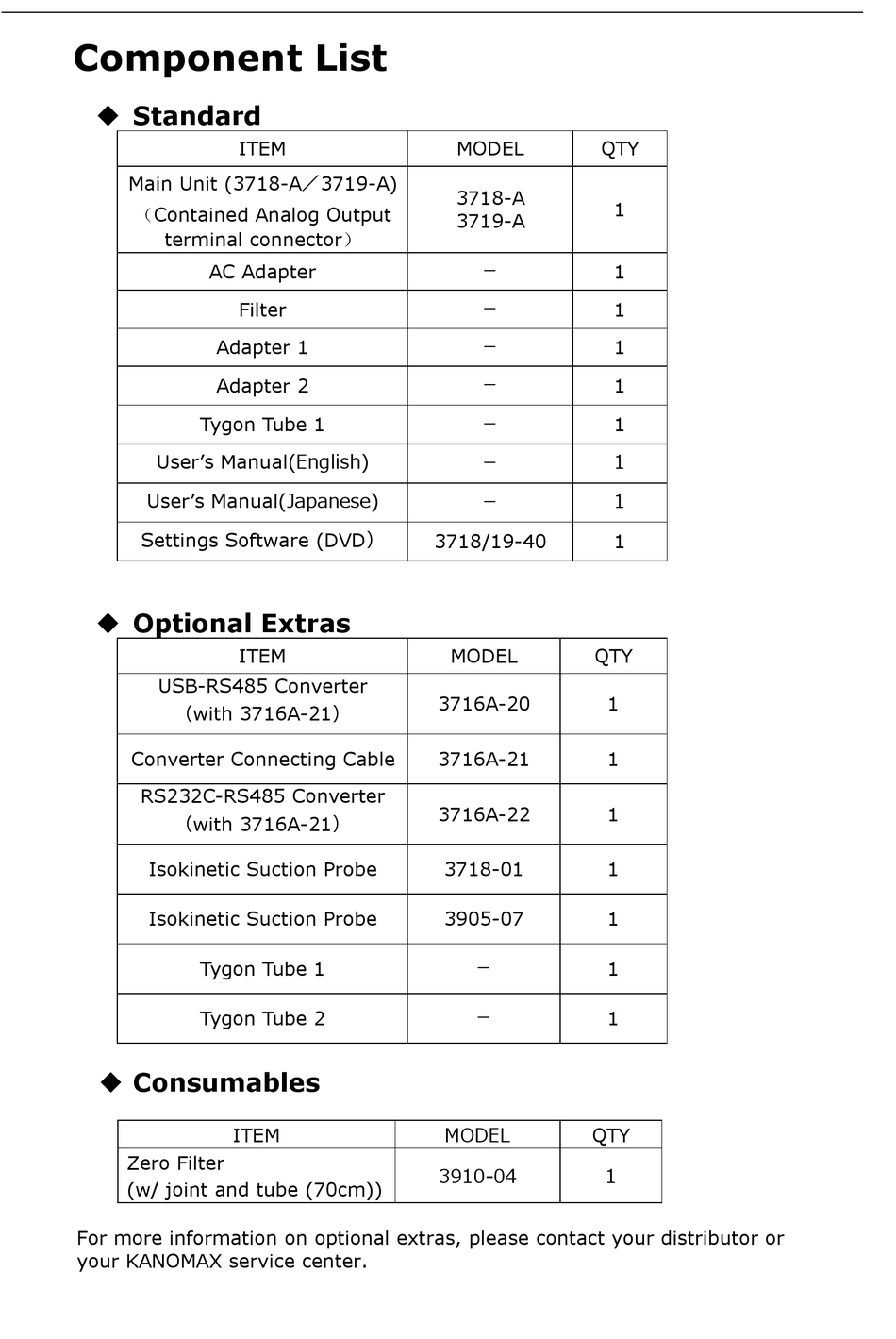

Component List
 Standard
ITEM
Main Unit (3718-A/3719-A)
(Contained Analog Output
terminal connector)
AC Adapter
Filter
Adapter 1
Adapter 2
Tygon Tube 1
User's Manual(English)
User's Manual(Japanese)
Settings Software (DVD)
 Optional Extras
ITEM
USB-RS485 Converter
(with 3716A-21)
Converter Connecting Cable
RS232C-RS485 Converter
(with 3716A-21)
Isokinetic Suction Probe
Isokinetic Suction Probe
Tygon Tube 1
Tygon Tube 2
 Consumables
ITEM
Zero Filter
(w/ joint and tube (70cm))
For more information on optional extras, please contact your distributor or
your KANOMAX service center.
MODEL
QTY
3718-A
3719-A
3718/19-40
MODEL
QTY
3716A-20
3716A-21
3716A-22
3718-01
3905-07
MODEL
QTY
3910-04
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3718-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Kanomax 3718-A

  • Page 1 Component List  Standard ITEM MODEL Main Unit (3718-A/3719-A) 3718-A (Contained Analog Output 3719-A terminal connector) - AC Adapter - Filter - Adapter 1 - Adapter 2 - Tygon Tube 1 User’s Manual(English) - 1 User’s Manual(Japanese) - 1 Settings Software (DVD)...
  • Page 2 Important Safety Information In this manual, warning types and classifications are defined as follows: [Classification] WARNING: To Prevent Serious Injury or Death Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or death. CAUTION: To Prevent Damage to the Product Indicates a potentially hazardous situation which, if not avoided, may result in damage to the product that may void the product warranty.
  • Page 3 …… It may result in electric shock, fire or damage to the instrument. Contact your distributor or your KANOMAX service center for repair.  Do not install the instrument where it will be Water exposed to rain and/or water drops.
  • Page 4: Table Of Contents

    Table of Contents 1. Part Names and Functions………………………………………………………………………1 1.1 General Outline…………………………………………………………………………………1 1.2 Part Names and Functions……………………………………………………………………1 1.3 USB-RS485 Converter…………………………………………………………………………2 1.4 Connection with the Distributor for the CRMS………………………………………………4 2. Getting Started………………………………………………………………………………………5 2.1 Power Supply………………………………………………………………………………5 2.1.1 AC Adapter…………………………………………………………………………………5 2.1.2 DC Power Supply…………………………………………………………………………5 2.2 Parameter Settings………………………………………………………………………………6 2.3 Connecting the Vacuum Source……………………………………………………………8 2.4 Connecting the Analog Output Terminal………………………………………………8...
  • Page 5: Part Names And Functions

    1. Part Names and Functions 1.1 General Outline  This instrument (Model 3718-A/3719-A ) is a light-scattering laser particle sensor using a laser diode as the light source. The output of the measurement data is from 4-20mA, based on the current system.
  • Page 6: Usb-Rs485 Converter

    A USB-RS485 Converter, MODEL 3716A-20 (with a Converter Connecting Cable MODEL, 3716A-21) is available as an optional extra. For more details, please contact your distributor or your KANOMAX service center. When preparing a USB-RS485 Converter, please refer to the instruction on the next ...
  • Page 7  Connection Method The following Figures show how to connect the instrument, a USB-RS485 Converter and a PC. For more details, refer to the information accompanied with USB-RS485 Converter MODEL, 3716A-20 (with a Converter Connecting Cable, MODEL 3716A-21). ・ USB-RS485 Converter Model:USB-4W485-RJ45-T9P Manufacturer: System Sacom Industry Corp.
  • Page 8: Connection With The Distributor For The Crms

     Connecting this instrument with the distributor for the CRMS allows for operation with the Clean Room Monitoring System. For more information on the distributor for the CRMS, please contact your distributor or your KANOMAX service center.  Connection Method...
  • Page 9: Getting Started

     Power also can be supplied through the RS485 connecting terminal. Connecting the RS-485 CRMS distributor and RS485 to supply power to the instrument. For more details on the distributor for the CRMS, please contact your distributor or your KANOMAX service center. DC-IN - 5 -...
  • Page 10: Parameter Settings

     Before starting a measurement, the parameter settings must be configured. Prior to the parameter settings, please read the software operation manual.  Before setting the parameters, connect the 3718-A/3719-A, a power supply for 3718-A/3719-A, the USB-RS485 Converter (converter, connecting cable) and a PC (that has the software installed).
  • Page 11 Baud rate: Select from 4800, 9600, 19200, and 38400bps. Data bit: Select 7 bits or 8 bits. Parity: Select between Even, Odd or None. *The communication settings with the distributor for the CRMS is fixed: 9600bps, 7 bits and Even. The factory setting is the same as the above.
  • Page 12: Connecting The Vacuum Source

    2.3 Connecting the Vacuum Source  3718-A/3719-A measurement requires a connection with an external vacuum source. The performance of the vacuum source should meet with the required specifications. For more details, refer to 4. Main Specifications.  To confirm the condition of the vacuum source, check the STATUS lamp on the main unit or the output current from No.
  • Page 13  The following Figures show the details of the Analog Output terminal. Terminal Signal Name Functions Number (3718-A) Current output terminal of particle count or concentration for 0.3μm channel measurement. The output range is 4-20mA. This output terminal is also used when flow rate errors or LD errors are detected.
  • Page 14 Terminal Signal Name Functions Number (3719-A) Current output terminal of particle count or concentration for 0.5μm channel measurement. The output range is 4-20mA. This output terminal is also used when the flow rate errors or LD errors are detected. 0.5μm Current output range of flow rate error is 1-1.8mA.
  • Page 15: Connecting Rs485 Connector

    2.5 Connecting RS485 Connector  When setting the parameters of 3718-A/3719-A, connect an RS485 connector and PC with the optional extra, USB-RS485 converter (converter + connecting cable). Activate the provided settings software to set the parameters of this instrument. Pin Number...
  • Page 16: Measurements

     To perform measurements, take in sample air directly from the inlet of the 3718-A/3719-A or take in sample air with the provided Tygon tube connected to the inlet.  Turn the power on 3718-A/3719-A to start a measurement using the configured parameters.
  • Page 17: Main Specifications

    4. Main Specifications Product Name Laser Particle Sensor Model 3718-A 3719-A Particle Size 0.3μm, 0.5μm 0.5μm, 5.0μm Distribution Rated Flow 28.3L/min (1CFM) Optical Source Laser Diode Compliant with ISO21501-4,JIS B 9921 Counting Efficiency Max Detectable 500,000CNT/ft Concentration Sampling Time:1 to 60 seconds...
  • Page 18: Troubleshooting

    → Confirm the wiring of RS485 cable. Clean Room Monitoring System Internal circuit failure (CRMS) suffers from → Return the instrument for repair. a communication/ PC software setting error measurement data → Contact your distributor or your KANOMAX error. service center for repair. - 14 -...
  • Page 19: Warranty And After-Sales Service

    MISUSE OF, OR INABILITY TO USE, THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF KANOMAX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL RECOVERY OF ANY KIND AGAINST KANOMAX BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY KANOMAX AND CAUSING THE ALLEGED DAMAGE.
  • Page 20 Repair parts are retained for a minimum period of five (5) years after production cessation of the PRODUCT. This storage period of repair parts is considered as the period during which KANOMAX can provide repair service. For more information, please contact your sales representative. When you call, please have the following information at hand: (1) PRODUCT name;...
  • Page 21 Copyright © Kanomax Japan Inc. All rights reserved. 2018 No copying, distribution, publication, modification, or incorporation of this document, in whole or part, is permitted for commercial purposes without the express written permission of Kanomax. The contents of this document may be changed without prior notice. 01001/18.7...
