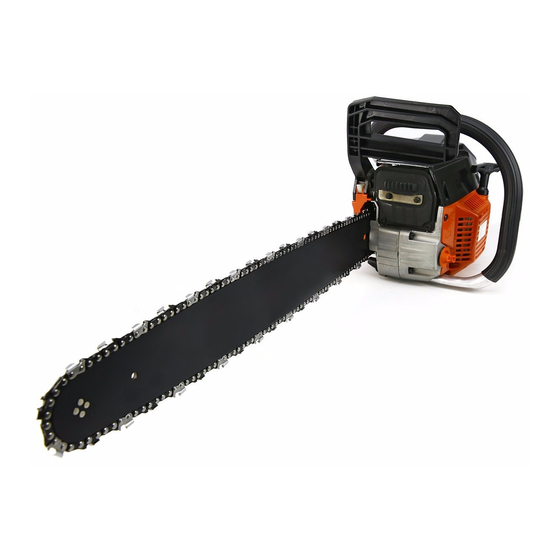

22" 2.4HP 45CC WOOD CUTTING CHAINSAW
ITEM: 82100
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Stark 82100
- Page 1 22” 2.4HP 45CC WOOD CUTTING CHAINSAW ITEM: 82100 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH...
- Page 2 IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
- Page 3 IMPORTANT SAFETY INFORMATION Make sure the area in which you are cutting is free from obstructions. Do not let the nose of the guide bar contact a log, branch, or any other obstruction while you are operating the saw. Only use replacement bars and chains specified by the manufacturer or the equivalent. Maintain a firm grip at all times, but do not squeeze the handles with constant, excessive pressures.
- Page 4 IMPORTANT SAFETY INFORMATION The engine of this chainsaw is designed to run on a mixed fuel which contains highly flammable gasoline. Never store cans of fuel or refill the fuel tank in any place where there is a broiler, stove, fire, electrical sparks, welding sparks or any other source of heat or fire which may ignite the fuel.
- Page 5 FEATURES AND ASSEMBLY DIMENSIONS L x W x H: 21” (L) x 13” (W) x 12” (H) DESCRIPTION This aluminum gasoline chainsaw is ideal for cutting and felling. It adopts the automatic brake system with wide designed front hand guard, which is able to reduce injury during operating. The anti-kickback chain decreases the probability of kick back, which increases safety.
- Page 6 ASSEMBLY AND OPERATION GUIDE BAR AND SAW CHAIN PARTS LIST A standard chainsaw unit package contains the items illustration in Figure F1. Open the box and install the guide bar and the saw chain on the power unit as follows. Power Unit Bar Protector Guide Bar...
- Page 7 ASSEMBLY AND OPERATION FUEL AND CHAIN OIL Mix gasoline (leaded or unleaded, alcohol-free) and quality proven 2-stroke motor oil (FC grade) for air cooled 2-cycle engines. Most engine troubles are caused, directly or indirectly, by the fuel used on the machine. Take special care not to mix a motor oil for 4-cycle engines.
- Page 8 ASSEMBLY AND OPERATION (1) Chain Oil: The chain oil flow can be changed by inserting a screwdriver in the hole on the bottom of the clutch side. Adjust according to your work conditions. (F13) NOTE: The oil tank should become nearly empty by the time fuel is used up. Be sure to refill the oil tank every time when refueling the unit.
- Page 9 ASSEMBLY AND OPERATION Stopping The Engine: Note: Before stopping the engine, keep the engine idling for 1 to 2 minutes. 1. Release the throttle lever to allow the engine idling for a few minutes. 2. Put the switch to the “O” (Stop) position (F17) ADJUSTING THE CARBURETOR It is recommended to first practice sawing easy logs.
- Page 10 ASSEMBLY AND OPERATION Sprocket (F30): Check for cracks as well as for excessive wear interfering with the chain drive. If the wearing is found, replace it with a new one. Never fit a new chain on a worn sprocket nor a worn chain on a new sprocket.
- Page 11 MAINTENANCE AND CARE BREAK DOWN ANALYSIS GUIDE...
- Page 12 MAINTENANCE AND CARE CARE AND MAINTENANCE...
- Page 13 QUICK START GUIDE 1. Lay out your tools 2. Mix the oil 3. Check that the chain brake is in the unlocked position by pulling the front hand guard toward the front handle 4. Loosen and remove the bar nuts and the clutch cover from the saw 5.
- Page 14 PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
