Dixie 25D-TWIN-AL Operator's Manual

Direct drive double seamer
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
DIRECT DRIVE DIXIE DOUBLE SEAMER
Model 25D-TWIN-AL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 25D-TWIN-AL and is the answer not in the manual?

Questions and answers

Summary of Contents for Dixie 25D-TWIN-AL

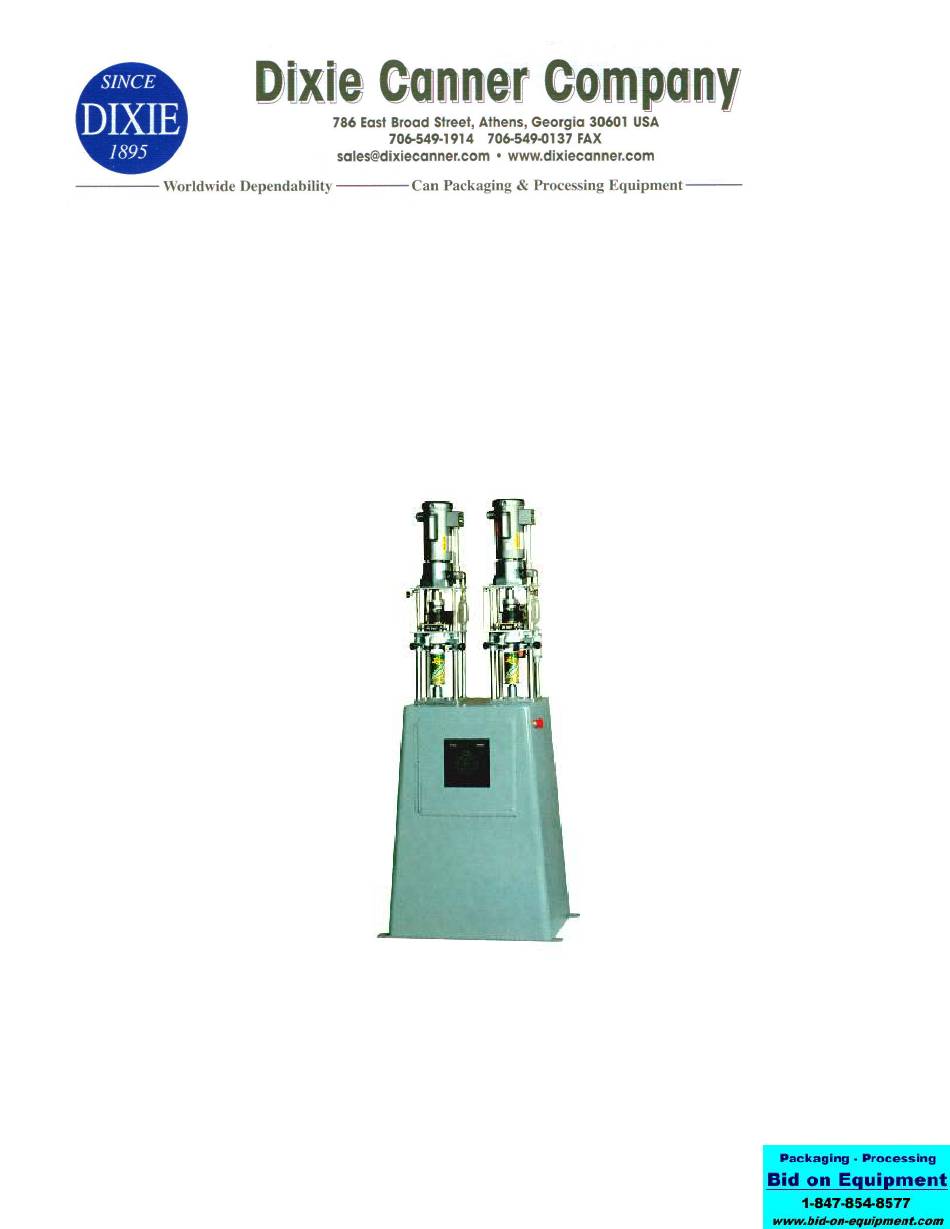

  • Page 1 OPERATOR'S MANUAL DIRECT DRIVE DIXIE DOUBLE SEAMER Model 25D-TWIN-AL...

  • Page 2: Operation

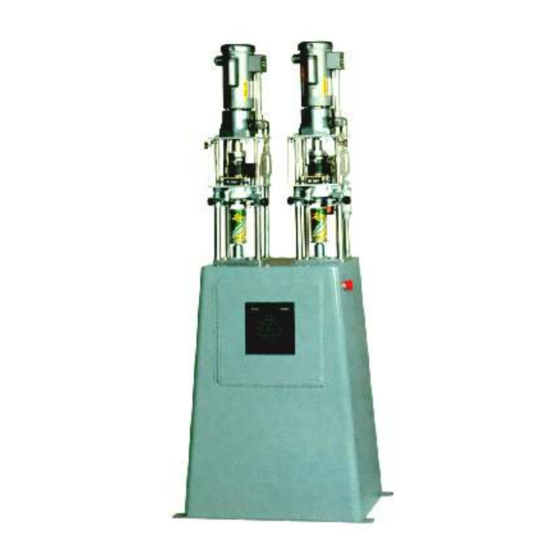

    1½" to 4¼" diameters, up to 7" tall. Change parts are required for closing each size container. The Model 25D-TWIN-AL is designed with an air lift assembly to raise containers into position with the seaming rolls and chuck.
  • Page 3 BASE PLATE PRESSURE ADJUSTMENTS Proper base plate pressure is required to produce essential body hooks and prevent slipping of cans during the seaming cycle. Each base plate has an adjusting screw (57) and set screw (56) in its stem for making minute base plate adjustments as follows: 1.

  • Page 4: Neutral Position

    AIR FILTER/REGULATOR & AIR LIFT ASSEMBLY ADJUSTMENTS Recommended air supply is 80-100 psi maximum. Different types of containers may require specific psi settings. The air pressure filter/regulator (816) on your machine has been set at the factory for the sample containers submitted with your order.

  • Page 5: First Operation

    SEAMING ROLL ADJUSTMENTS There are ten (10) revolutions per seaming cycle, five (5) for each seaming roll. The function of the first operation seam roll is to curl the cover hook and body hook into proper position. The function of the second operation seam roll is to complete the sealing of the can.

  • Page 6: Notes And Troubleshooting

    We required for each. Your can manufacturer or supplier may recommend replacing the recommend the seam roll profiles for your cans. Dixie entire assembly (502-1) and stocks or may be able to furnish the seam roll profile needed.
  • Page 7 1. 1st or 2nd operation seam roll set too tight 2. Worn seam rolls or worn chuck A complete stock of parts is maintained by Dixie Canner B. Cut or fractured seam Equipment Co., Athens, Georgia, USA. Parts may be 1.
  • Page 11 OTHER OILING LOCATIONS: Gears inside gear housing through drive collar. Seam Rolls and Cam Rolls. Seam Roll Levers through gear housing arms where indicated. Base Plate stem. Air Lift Shaft (must be lubricated to prevent binding through Plunger Housing).
