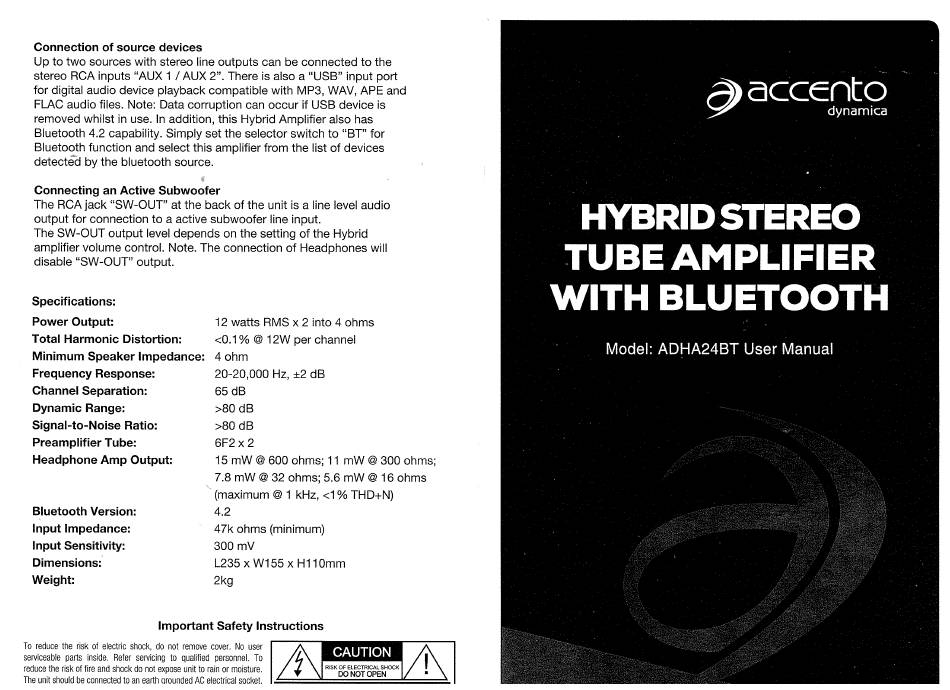

Connection of source devices
Up to two sources with stereo line outputs can be connected to the
stereo RCA inputs "AUX I I AUX 2". There is also a "USB" input port
for digital audio device playback compatible with MP3, WAV, APE and
FLAC audio files. Note: Data corruption can occur if USB device is
removed whilst in use. in addition, this Hybrid Amplifier also has
Bluetooth 4.2 capability. Simply set the selector switch to "BT" for
Bluetooth function and select this amplifier from the list of devices
detected by the bluetooth source.
Connecting an Active Subwoofer
The RCA jack "SW-OUT" at the back of the unit is a line level audio
output for connection to a active subwoofer line input.
The SW-OUT output level depends on the setting of the Hybrid
amplifier volume control. Note. The connection of Headphones will
disable "SW-OUT" output.
Specifications:
Power Output:
12 watts RMS x 2 into 4 ohms
Total Harmonic Distortion:
<0.1 % @ 12W per channel
Minimum Speaker Impedance: 4 ohm
Frequency Response:
20-20,000 Hz, ^2 dB
Channel Separation:
65 dB
Dynamic Range:
>80 dB
Signal-to-Noise Ratio:
>80 dB
Preamplifier Tube:
6F2 x 2
Headphone Amp Output:
15 inW @ 600 ohms; I I inW @ 300 ohms;
7.8 inW @ 32 ohms; 5.6 inW @ 16 ohms
(maximum @ I kHz, <1 % THD+N)
4.2
47k ohms (minimum)
300 inV
L235 x W155 x Hit Omm
2kg
,
Bluetooth Version:
Input Impedance:
Input Sensitivity:
Dimensions:
Weight:
To reduce the risk of electric shock, do not remove cover. No user
serviceable parts Inside. Refer servicing to qualified personnel. To
reduce the risk o1 lire and shock do not expose unit to rain or moisture
The unit should be connected to an earth Grounded AC electrical socket
Important Safety Instructions
o
.
^
.
.
^
.
.
A
.
.
^
.
..
RISK OF ELECmlCAL SHOCK
Do NOT OPEN
.
,
.
,.
.
, ,=
.
.
.
.
.
