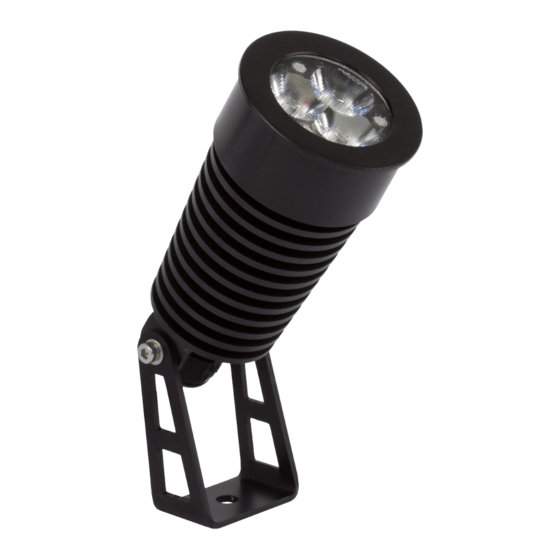

- Page 1 PX351 PxSpot 3+H 12V User manual...
-
Page 2: Table Of Contents
4 Connection scheme...................7 5 Mounting......................8 6 Dimensions....................8 7 Technical data.....................9 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-0 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
The lamp is powered by 12V DC. In order to run it, use a voltage driver or voltage power supply. In case of using a voltage driver, e.g. PX254, it is possible for dimming the lamp. The PX351 is produced in a built-up version with a handle. The device is supplied with a 2m cable. -
Page 4: Safety Conditions
Safety conditions Before installing, connecting and using the lamp you have to absolutely read this document. The following symbols are used to underline important information on security conditions on the product and in this manual. Danger! Warning! Warning! Warning! Warning! Risk of loss of life Fire hazard. - Page 5 During its installation and use PX351 the following rules must be strictly observed: 1. Installation should be performed by a person holding the appropriate qualifications, according to the instruction manual. 2. Lamp may only be connected to stabilized voltage with current-carrying capacity compatible with technical data.
-
Page 6: Information On Version
Information on version The PX351 lamp is available in several versions that differ in the angle of the lenses used and the color of the LEDs. Below there is a description of designation of the PX351 models and their explanation: PX351 –... -
Page 7: Connection Scheme
Connection scheme a) diagram of connecting PX351 lamps with driver PX254 The cables should be connected in the correct color order. For example, the red wire with the + terminal and the black wire with the R- / B- / G- terminal. -
Page 8: Mounting
Mounting The lamp is attached to the holder with two M4 Allen screws and can be rotated vertically. The handle is attached to the ground with one M5 screw, which in turn allows for rotation in the horizontal plane. Dimensions... -
Page 9: Technical Data
Technical data type PX351 power supply 12V DC number of LEDs current consumption 700mA lenses 10°*, 25°, 40°* LED colors white cold, white neutral, white warm brightness (25° / 1m) ~1500lx weight 0.25kg diameter: 50mm dimensions height: 135mm available on request... - Page 10 Podłęże, 23.07.2020 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: PxSpot 3+H 12V Product code: PX351 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
