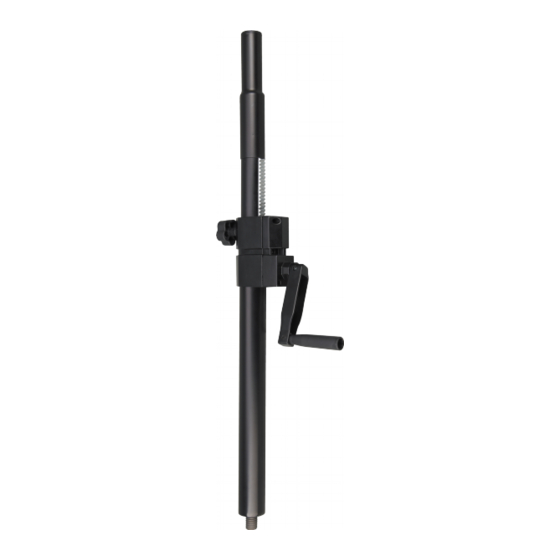

Summary of Contents for innoxx IVA CP Pro

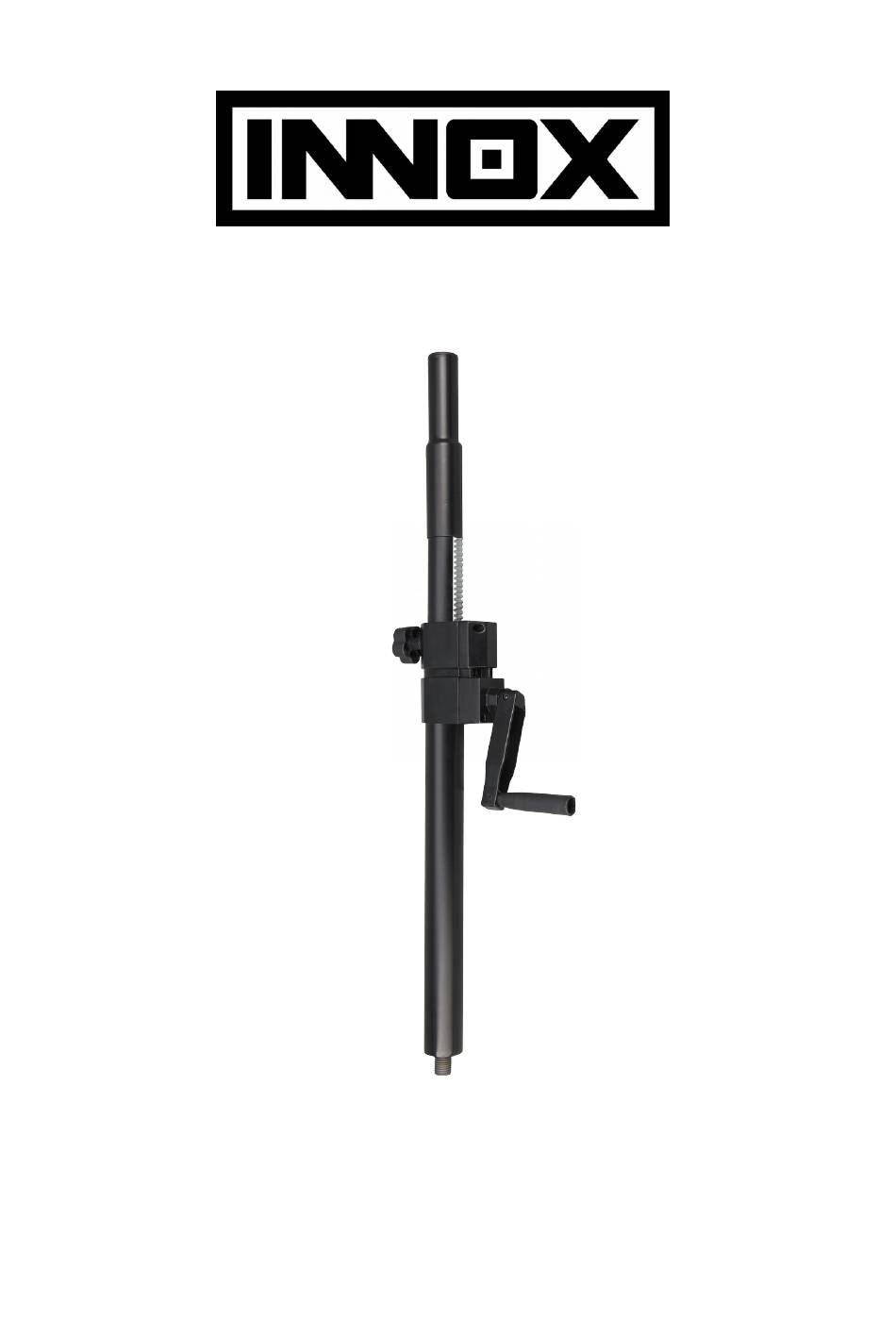

- Page 1 IVA CP Pro Original Instructions The information in this user manual is subject to change at any time without notice. Versie: Date of creation and author’s initials: Revisiedatum en initialen auteur: - 25-11-2019SM...
- Page 2 Introduction Thank you for buying our wind-up speaker pole. This pole is designed for use in event technology. Our manual will explain how to use the pole properly. Please pay particular attention to the safety information. Make sure that you have read and understood the user manual before transporting, assembling, beginning to use and carrying out maintenance on the pole.
- Page 3 Safety instructions Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. Should the device or the included accessories be damaged, please contact your dealer for more information.
- Page 4 Improper use The following types of use and operations are prohibited: - Lifting of persons or live animals - Exceeding the permissible load ratings - Carrying out of repairs. If a defect occurs please contact your dealer for an RMA (Return Merchandise Authorisation) - Operation by unsuitable or unauthorised persons Symbol explanation...
- Page 5 Operating instructions Setting up the speaker pole 1. Determine a suitable location and make sure the total weight of the pole and speaker to be mounted does not exceed the maximum load capacity of the subwoofer. Position the speaker pole safely on the subwoofer with an M20 or 35 mm socket (M20/35 mm adapter included).
- Page 6 8. Tighten the tommy screw again (B). 9. Fold the crank handle (A) back into the handle housing. Taking down the speaker pole 1. Loosen the tommy screw of the crank mechanism (B). 2. Fold out the inner part of the crank (A) from the handle housing. 3.
- Page 7 Technical specifications Product type Wind-up speaker pole Tube material Steel/aluminium Tube colour Black Tube surface Powder coated Min. height 0.78 m Max. height 1.16 m Joint material Die-cast aluminium Crankcase material Die-cast aluminium Speaker flange size 35 mm/M20 Weight 3.9 kg Tube diameters 45/41/38 mm Max.
- Page 8 EC Declaration of Conformity The Innox IVA CP Pro fulfils all relevant provisions of the Machinery Directive 2006/42/EC. Other technical standards: EN ISO 12100:2010 and ISO/TR 14121-2:2012 Goes, The Netherlands, 25 November 2019 Director J. Bax Signature: Contact: Innox professional stage products...
