Schmidt & Bender MTC LT Manual

1.

Correction of the point of impact

1.1

Using the MTC LT Turrets

The MTC LT turrets include the following features:
Double turn (elevation)
•
MTC (more tactile click - 0.1Mil Model only)
•
Zero stop (elevation and windage)
•
Locking function (elevation and windage)
•
Like our proven "Double Turn" turret the "MTC-LT" turrets allow the entire adjustment
range to be accomplished in two rotations.
The MTC elevation turret (in 0.1Mil clicks only) has an audible "clunk" on every 10th
click. This allows for fast elevation adjustments by counting "clunks" for full Mil
adjustments. Between the "clunks" are 0.1mil graduations for fine click adjustment.
During the first rotation the operator should be reading the bottom scale. When the
turret is rotated into the second revolution a small cylinder pops up on top of the
turret which indicates to the user that the second turret revolution has been
reached. From this point the operator should be reading the top scale of numbers.
Additionally, the zero stop function supports the quick adjustment to the zero
position. The zero stop function is determined by an end stop.

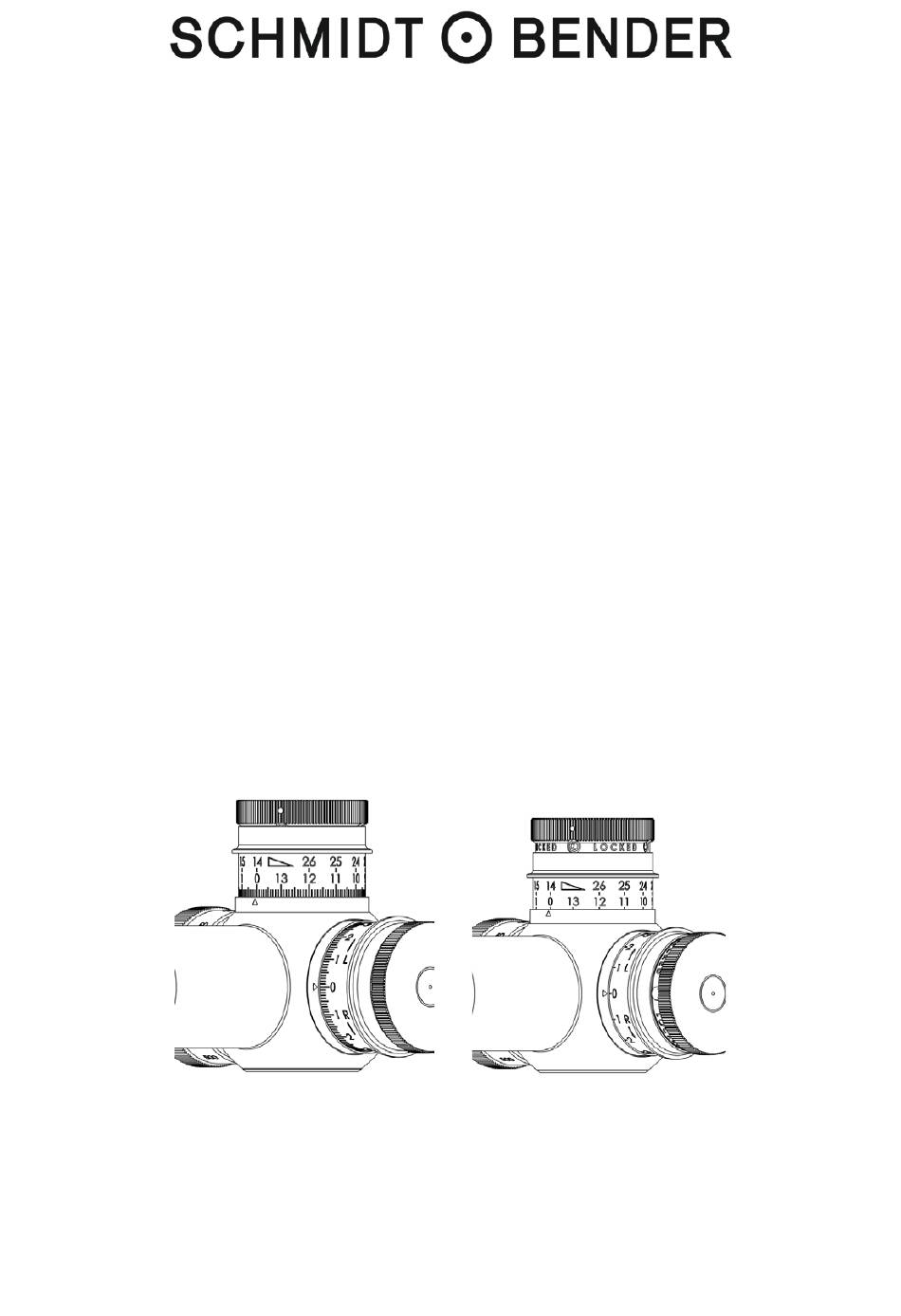

The elevation turret includes a locking function which prevents the accidental
adjustment of the turret. To lock the turret, the outer flange with the engraving must
be pushed down in direction of the scope tube until "LOCKED" appears on the
turret. To unlock the turret, the outer flange must be pulled up until the "LOCKED"
indicator completely disappears.
Locking function of the turrets
