Page 1

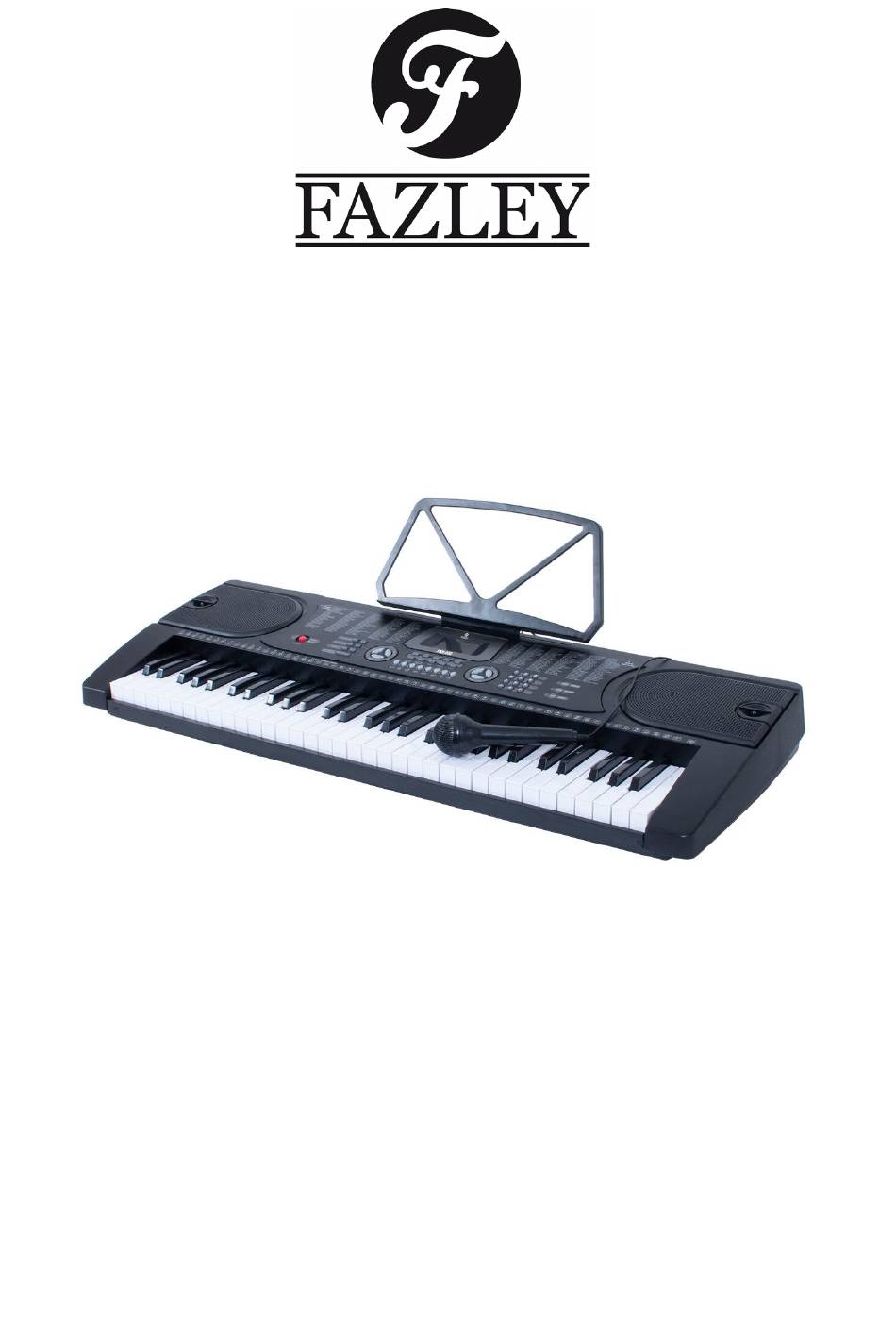

FKB-050 61-key keyboard User manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 12-03-2019RV...
Page 2
'Box contents' are included in the package. In the event that the FKB-050 does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your dealer for assistance.
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged.
Page 4
- Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Fazley cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
Page 5
- Every power and signal connector should be securely mounted. Do not use the device if the connectors are not secure. - Avoid dust and dirt build-up. Clean the device once a month by disconnecting it from the power supply and wiping it down with a dry or slightly moist cloth. If the device is used frequently, the cleaning intervals should increase.
Page 6
Do not store loose batteries or carry them in your pocket or purse. Contact with metal objects like coins and keys, etc. may cause them to leak, rupture or short-circuit. Keep batteries out of reach of children. Recycling: Do not dispose of batteries in general household waste. Batteries can contain substances that may harm the environment.
Page 7
Guidelines and operation of this device 1. Speakers 2. On/Off 3. Keyboard percussion 4. Tempo 5. Accompaniment volume 6. Master volume 7. Sync 8. Fill-in 9. Start/stop 10. Sustain 11. Vibrato 12. One-key 13. Follow 14. Ensemble 15. LED display 16.
Page 8
LED display section The 7-segment LED screen on the FKB-050 helps the user to select sounds and rhythms, set the tempo and use the accompaniment functions. Rear connection panel 27. Audio input (3.5 mm mini jack) 28. Mic input (3.5 mm mini jack) 29.
Keyboard positioning It's important to place the FKB-050 on a stable surface at the correct height to ensure a comfortable playing experience without causing any physical discomfort. Fazley recommend investing in a good keyboard stand so that playing while standing or sitting can both be done in comfort.
Page 10
Connecting the keyboard The FKB-050 comes with a power adapter that needs to be plugged into the keyboard and a power socket with the correct voltage. Only the adapter that comes with the keyboard should be used to power it.
Page 11
Sound selection Selecting a Sound The FKB-050 has 255 sounds on board that can be selected using the number keys on the right hand side of the keyboard, or alternatively, scrolled through using the plus and minus buttons.
Page 12
Sync The Sync function can be used to start an accompaniment at the same time you start playing. First select the accompaniment you want to use and then press the 'Sync' button. 'Syn' will appear on the display and the accompaniment will start playing automatically as soon as one of the first nineteen keys is pressed.
Page 13
played, for instance. As soon as the fill has finished, the rhythm that was playing before the fill will resume again automatically. Single chord When an accompaniment rhythm is activated, you can make use of Single Chord mode. When you press the 'Single Chord' button, 'Sin' will appear on the display and pressing any of the first nineteen notes will result in the appropriate chord being generated.
Page 14
Record function The FKB-050 has a recording function so that you can record yourself playing. Pressing the 'Rec' button gets the keyboard ready to record and as soon as you play the first note, it will start recording.
Page 15
Extra accompaniment options Playing along with external music It's possible to connect an external audio device thanks to the mini jack audio input on the back of the keyboard. This means you can play along with any music you like in addition to the accompaniments on the keyboard itself.
Page 16
Built-in sounds The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 12-03-2019RV...
Page 17
The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 12-03-2019RV...
Page 18
Built-in rhythms The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 12-03-2019RV...
Page 19
The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials: Revision date and author's initials: - 12-03-2019RV...
Page 20
Solving keyboard problems If you have a problem with your keyboard, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common keyboard problems, but it does not and cannot cover every eventuality.
Page 21
connected, sound is not played through the speakers. Speaker sound distorted Volume is too high When the volume is too high, the sound coming through the speakers may be distorted. If this is the case, the volume level should be lowered.
