Warning
Keep all children and pets away from assembly area. Children and pets should be supervised when they are in
the area of the Chair construction.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Chair is for setting purpose only. Standing on or misuse of bench may result in damage or injury. Weight limit
225 LBS (100kg).For outdoor use only.
.
Important:
For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours /
7 days a week, or
email to
Production Number: XXXXXXXX

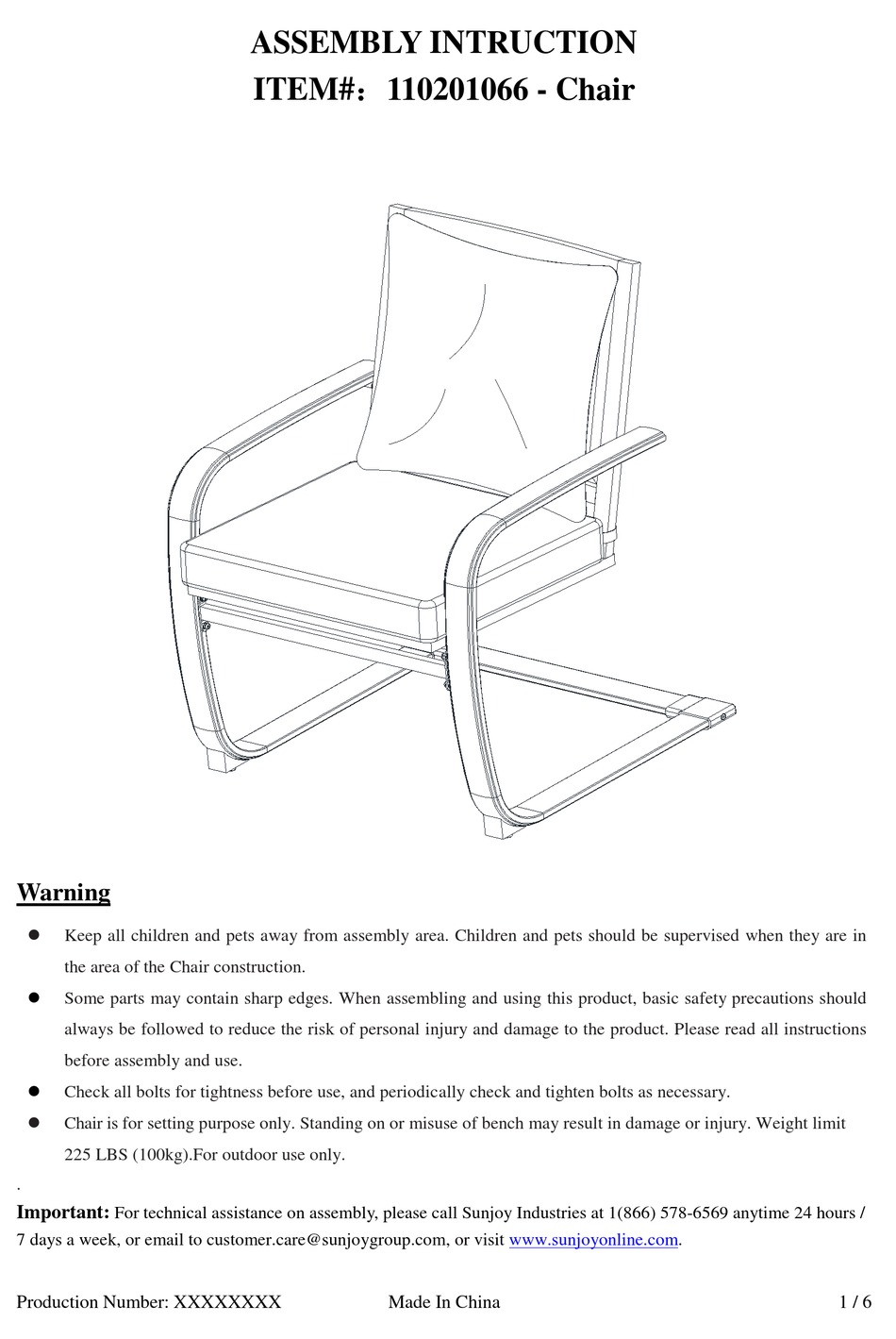

ASSEMBLY INTRUCTION
ITEM#：110201066 - Chair
customer.care@sunjoygroup.com,
or visit
www.sunjoyonline.com.
Made In China
1 / 6
Advertisement
Table of Contents
Related Manuals for Sunjoy 110201066
Summary of Contents for Sunjoy 110201066
- Page 1 Chair is for setting purpose only. Standing on or misuse of bench may result in damage or injury. Weight limit 225 LBS (100kg).For outdoor use only. Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7 days a week, or email to customer.care@sunjoygroup.com,...
- Page 2 PARTS LIST （For 1 chair, total 4 chairs） Label Description Image Right Handrail Left Handrail Back Connecting Front Connecting Seat and Back Seat Cushion Back Cushion Production Number: XXXXXXXX Made In China 2 / 6...
- Page 3 HARDWARE LIST Label Description Image Hexagon Bolt M6x80 Hexagon Bolt M6x20 Hexagon Bolt M6x65 Hexagon Bolt M6x40 Spring Washer M6 Flat Washer M6 Nut M6 Allen Wrench M6 Open-end Wrench Production Number: XXXXXXXX Made In China 3 / 6...
- Page 4 ASSEMBLY STEPS Step 1: shown in Fig. 1, insert Connecting Rod (C) into Handrails (A & B). As shown in Fig. 2, connect Rod (C) and Handrail (A) with Bolts (AA), Wrench (HH), fasten the bolts. Same step with another Handrail (B). Step 2: Connect Rod (D) and Handrails (A &...
- Page 5 Step 3: Connect Seat (E) and Handrails (A & B) with Bolts (CC), Bolts (EE), Bolts (FF), Nut (GG) Connect Back (E) and Handrails (A & B) with Bolts (DD), Bolts (EE), Bolts (FF). Use Wrench (HH) and Wrench (II) to fasten all of the bolts. Step 4: Turn the chair over.
- Page 6 Care & Maintenance: Before using, clean the product completely with a soft dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners. ...
- Page 7 ASSEMBLY INTRUCTION ITEM#：110201066 – Firepit Table WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 8: Table Of Contents
Keep this manual to consumer for installer and consumer future reference/use. For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7 days a week, or email to customer.care@sunjoygroup.com, or visit www.sunjoyonline.com... -
Page 9: Specification
SPECIFICATION Product name Gilford Fire Pit Table Model NO. L-DN2085SST Rated Heat Output 35,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.250 PSI IMPORTANT SAFETY INFORMATION AND PRECAUTION ... - Page 10 gas leak. Have the appliance inspected annually by a qualified service person. The pressure regulator and hose assembly provided with the appliance must be used. replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 8 and “leak Test”...
-
Page 11: Expanded View
EXPANDED VIEW Parts List Part NO Description P20702A01118 P22104A01118 Main Body P99903A01902 Lava rock 1(3KG) Production Number: XXXXXXXX Made In China 5 / 11... -
Page 12: Installation
INSTALLATION Installation will be much easier with two or more people. Step1: Place the lid (A) on the top (B). Step 2: The lava rock (C) should be put into the bottom of the fire bowl and come up just as high as the fire ring. -
Page 13: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 14: Operation
Fig 14 OPERATION: LEAK TEST !!!WARNING!!! A leak check must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. 2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening. -
Page 15: Storage And Maintenance
While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7. -
Page 16: Trouble Shooting
Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center. LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from... - Page 17 Clean the holes in the burner using a swab that is moistened with soapy water. Keep the holes unobstructed by using a heavy-duty pipe cleaner. The burner must be dry before normal use. Cleaning period should be 1 year. ...
