CarefullySreadSallSofStheSinstructionsSbeforeSenjoyingStheSspa.
WARNING: Operating the system without water will cause severe damage.
WARNING: SHOCK HAZARD! No user serviceable parts. Do not attempt to service this control. Contact your
dealer or service center for assistance. Follow all user's manual power connection instructions. Installation must
be performed by a certified licensed electrician and all grounding connections must be properly installed.
I.SInstallation
1)
Please open the tub skirt according to instruction on it, connect the power supply correctly. If the power
supply is 220V/50HZ, the wires serving as equipotential bonding conductors shall have a cross
sectional area not less than 3×10mm
equipotential bonding conductors shall have a cross sectional area not less than 5×6mm
system should be based on a residual current device (RCD). Be sure that the earth cable connection is

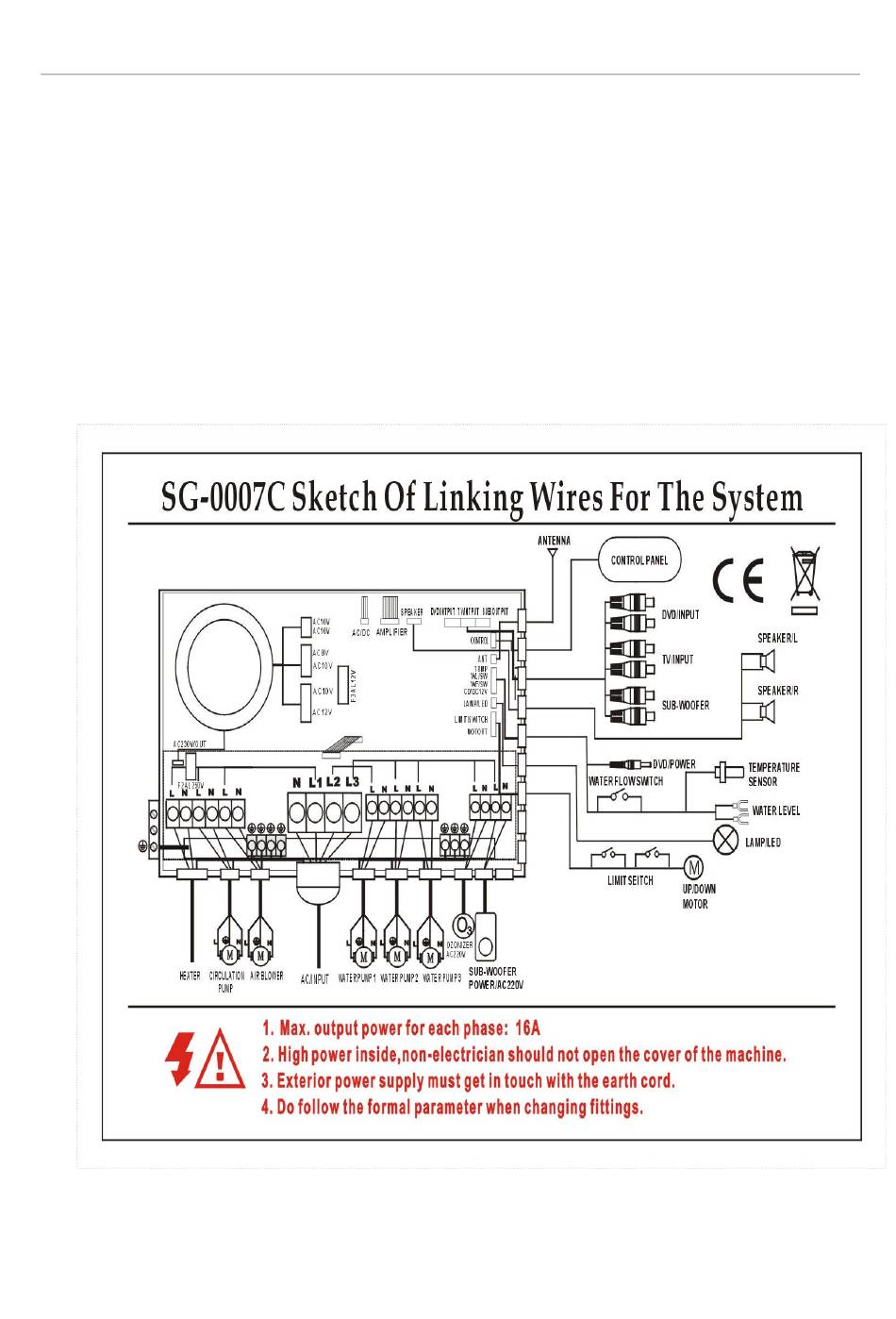

correctly made. The circuit diagram of hot tub is shown as following. (Fig 1)
2)
Before infuse water into hot tub for using, please check the valve for each pipeline. The hot tub's drain
valve must be in normal close while valves for other pipeline must be in normal open. After confirm

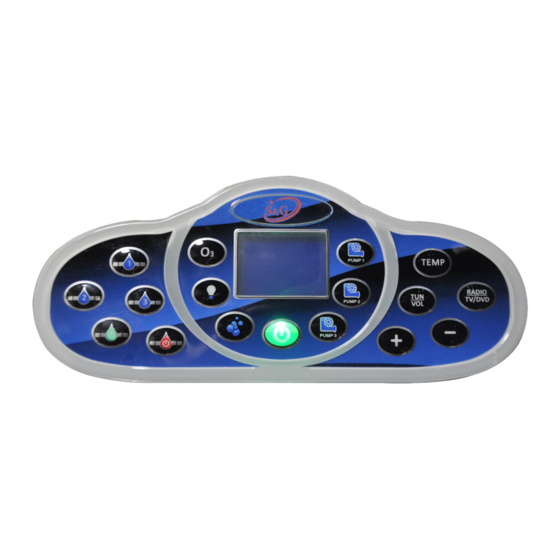

USERSMANUALSOFSSG-0007CSSYSTEM
2
. If the power supply is 380V/50HZ, the wires serving as
(FigS1)
1
2
.The protection
