Asahi KASEI Senseair LP8 Handling Manual

NOTE:
ESD sensitive product.
Use ESD protection equipment.
Particle filter

Installation and soldering

See IPC-J-STD-001 for acceptable soldering conditions in general.
Selective soldering machine (drag soldering method): soldering temperature 295°C during 3 seconds.
Hand soldering: soldering iron temperature 380°C during 2 seconds/pin.

Mechanical properties

Please refer to mechanical drawing of detailed specification regarding dimensions and tolerances.

Layout considerations:

Use cut-outs or slits in main board to reduce mechanical stress to sensor due to board thermal expansion.
To ensure stability, do install pin headers on boath sides of sensor.
Handling Manual
Senseair LP8
Miniature CO
2
for battery-powered applications
NOTE:
To ensure airflow, and quick sensor response time to changes
in environment: do not block particle filter!
sensor module
NOTE:

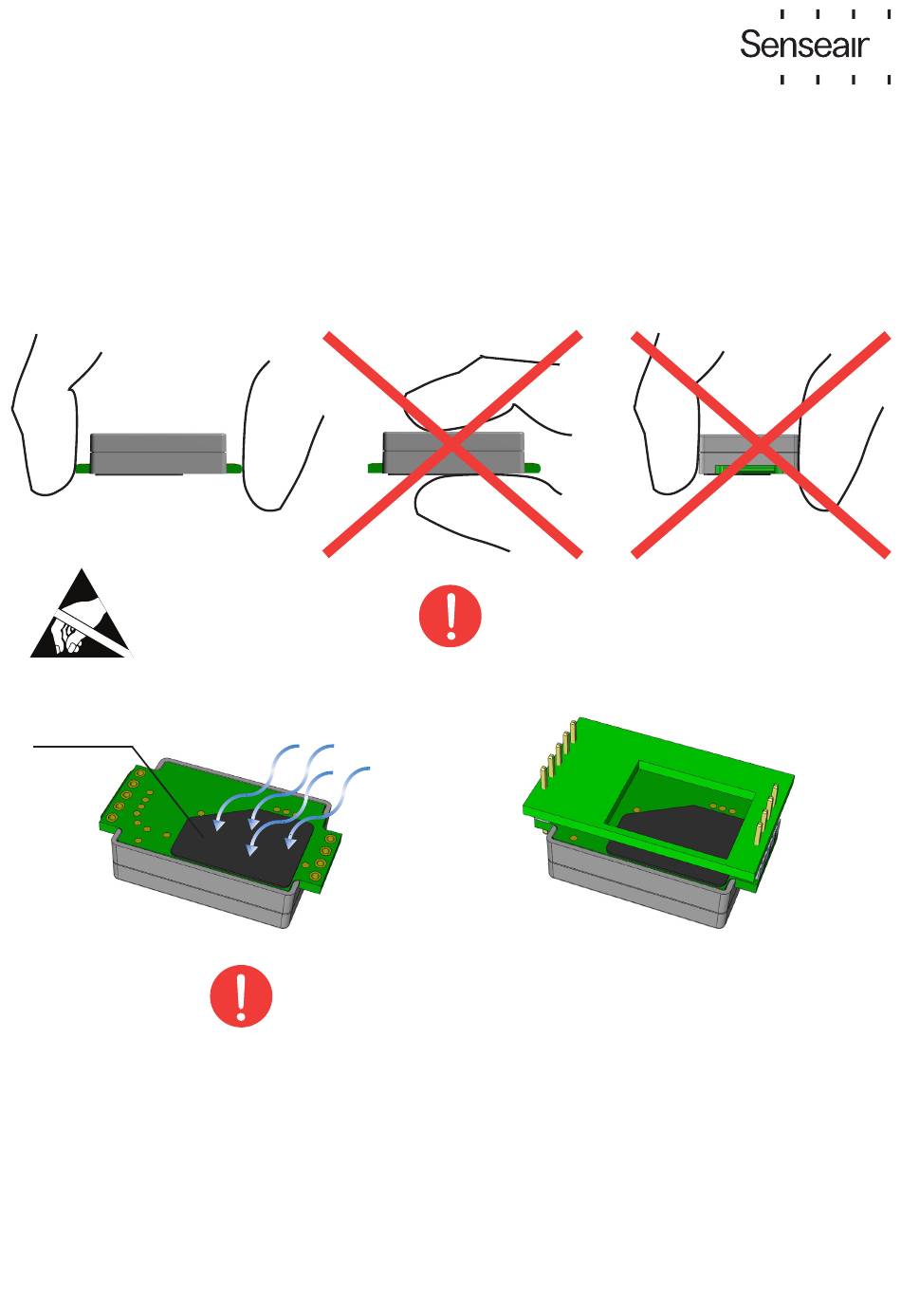

Handle sensor by holding PCB only.
Never touch sensor with bare hands! Use clean gloves
to avoid dust, grease or other contaminations.
OBA shall not be subjected to any force.
