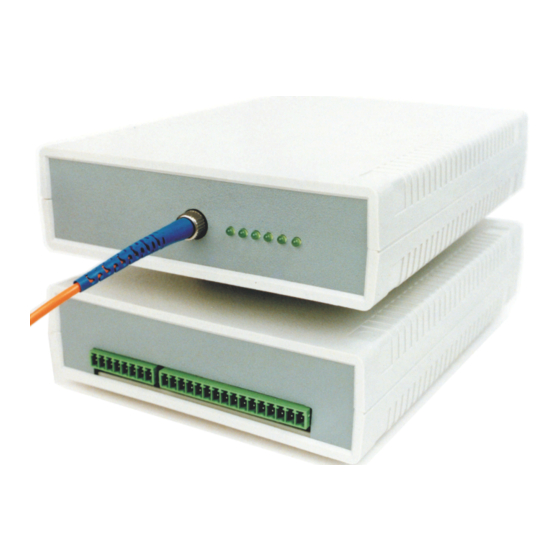

FIBRE DIGITAL AUDIO TRANSCEIVER
Electrostatic Discharge: The product can be damaged by electrostatic
discharge, thus care must be taken when handling the product. Failure to
observe proper handling and installation procedures can cause damage.
Electrostatic Discharge damage can range from performance degradation to
complete product failure.
Important Safety Instructions
User's Manual
Please follow these precautions when using this product:
Read these instructions. Keep these instructions. Heed all warnings. Follow all
instructions.
WATER AND MOISTURE: Designed for indoor use only. The product is not
protected against liquids. It should not be exposed to dripping or splashing
and no objects filled with liquids, shall be placed on the product.
INSTALLATION: The product must always be installed by qualified service
personnel. Install in accordance with the manufacturer's instructions. Always
disconnect the supply power before installing the product. Do not install near
any heat sources such as radiators, heaters, or other apparatus that produce
heat.
POWER SOURCES: The product should be connected to a power supply only
of the type described in the operating instructions or as marked on the unit.
SERVICING: Contains no user serviceable parts. Do not attempt to repair the
product, as this will void the warranty.
FUSING: Never bypass or use any other type of fuse. Replace only with the
same type of fuse as found in the operating instructions. Fuses must only be
replaced by qualified service personnel. Always disconnect from power before
replacing fuses.
Advertisement
Table of Contents
Summary of Contents for ALFTECH FDAT-EN2
- Page 1 FIBRE DIGITAL AUDIO TRANSCEIVER Electrostatic Discharge: The product can be damaged by electrostatic discharge, thus care must be taken when handling the product. Failure to observe proper handling and installation procedures can cause damage. Electrostatic Discharge damage can range from performance degradation to complete product failure.
- Page 2 ALFTECH will repair or replace free of charge, any part or parts of the Product that are defective, but subject to the following conditions: Transportation charges on equipment and/or parts submitted for repair or replacement under this warranty must by borne by the Purchaser, Distributor, Re-seller and/or End user;...
- Page 3 Introduction Hardware Features Product Overview: Fibre Digital Audio Transceiver • 2 channels balanced audio (optionally 4) • 24 inputs to transistor pull down outputs FDAT-TX EN2 the FDAT Transmitter • Line Fault transistor pull down output on FDAT-RX Receiver The FDAT-TX transmits 2 audio (optionally 4), and 24 digital inputs to the •...
- Page 4 The relay outputs are in 3 banks of 8 outputs each. If all 8 outputs per bank are ON The hardwired connections to the FDAT-EN2 are via sets of PHOENIX Contact permanently, they are each allowed to draw only 125 mA. Only use 24 V relays, with a 3.81 mm pitch connectors as shown in the following illustrations.
- Page 5 Physical Layout and Dimensions (All Dimensions in mm) FDAT-EN2 +A (All Dimensions in mm) FDAT-EN2...
- Page 6 NOTES Copyright © 2005 Alf Electro-Technical Services CC. All rights reserved.
