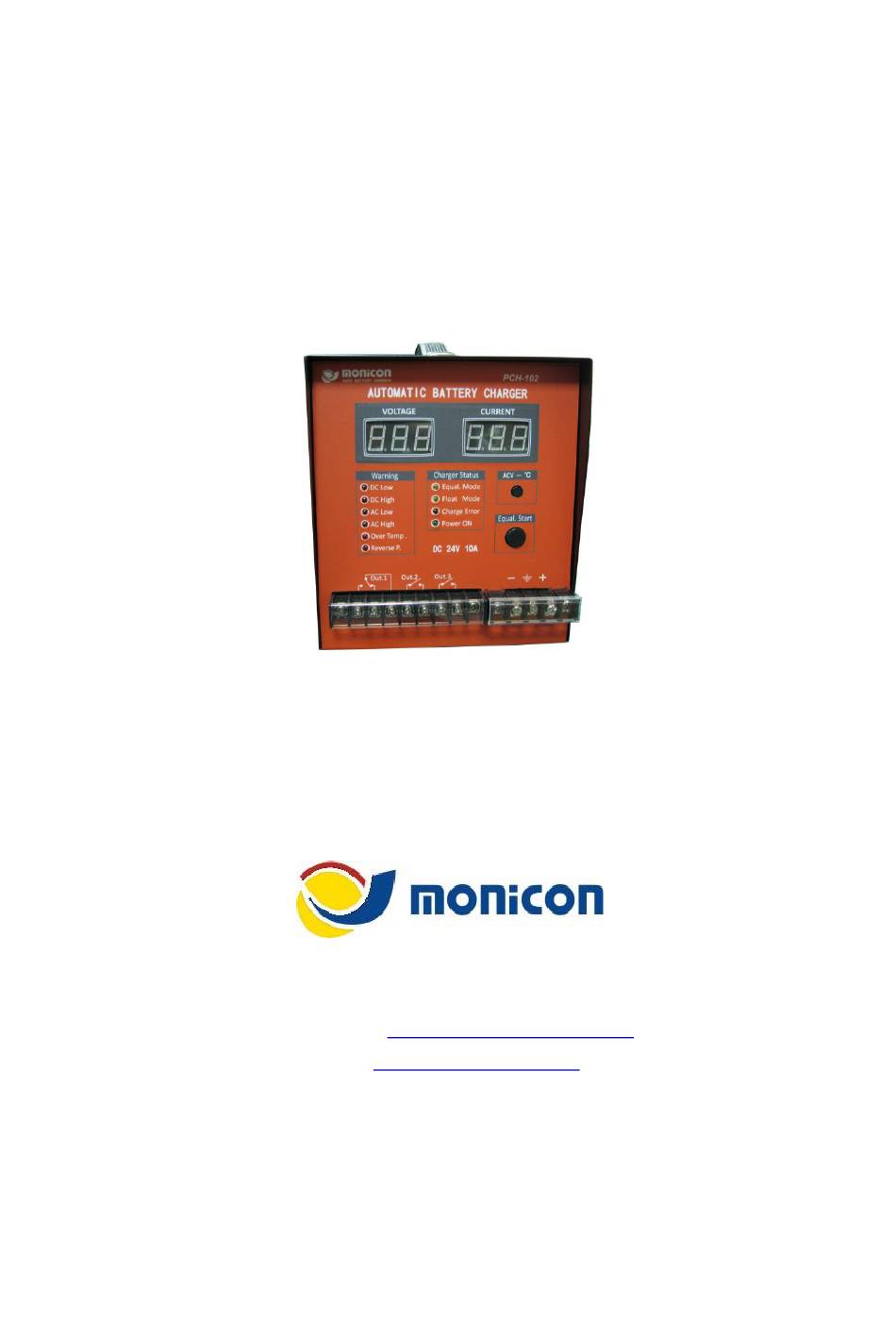

Automatic Battery Charger
Copyright © 2010 Monicon Instruments Co., Ltd. All rights reserved. Contents in this
publication may not be reproduced in any form without the written permission from
Monicon Instruments Co., Ltd
PCH-101/102
Tel：886-4-2238-0698
Fax：886-4-2238-0891
Website：http://www.monicon.com.tw
e-mail：sales@monicon.com.tw
Advertisement
Table of Contents
Related Manuals for Monicon PCH-101
Summary of Contents for Monicon PCH-101
- Page 1 Automatic Battery Charger PCH-101/102 Tel：886-4-2238-0698 Fax：886-4-2238-0891 Website：http://www.monicon.com.tw e-mail：sales@monicon.com.tw Copyright © 2010 Monicon Instruments Co., Ltd. All rights reserved. Contents in this publication may not be reproduced in any form without the written permission from Monicon Instruments Co., Ltd...
- Page 2 4. Please use only factory parts and suggested accessories. Unauthorized parts may risk of shock, fire, or injury. 5. Please do not disassemble PCH-101/102. Attempting to repair may risk of fire and electrical shock. 6. PCH-101/102 contains residual power even after removed from the battery and AC power.
- Page 3 2. Connect positive and negative wires to the battery before switch the power to “ON” position. 3. PCH-101/102 is equipped with short circuit, over load, and reverses polarity protections. 4. When the battery is below minimum charging voltage, it ceases the output.
- Page 4 Monicon Instrument. Co. Ltd. PCH-102 2、 Specifications AC input: 110VAC voltage range 90~130 ACV Frequency: 50/60 Hz 220VAC voltage range 190~250 ACV Frequency: 50/60 Hz DC adjustable range: Model: PCH-101 PCH-102 Float: 12.5～14.5VDC 25.6～27.6 VDC Default: 13.6 VDC 26.6 VDC Equalized: 13.5～15.5VDC...
- Page 5 Monicon Instrument. Co. Ltd. PCH-102 3、 Panel Description ： PCH-102 Handle DC/AC voltage DC current/Temperature LEDs: ⊙ Float ⊙ Equalized ⊙ Power ⊙ Charging error ⊙ AC high voltage ⊙ AC low voltage ⊙ DC high voltage ⊙ DC low voltage ⊙...
- Page 6 Monicon Instrument. Co. Ltd. PCH-102 Dimensions 4、...
