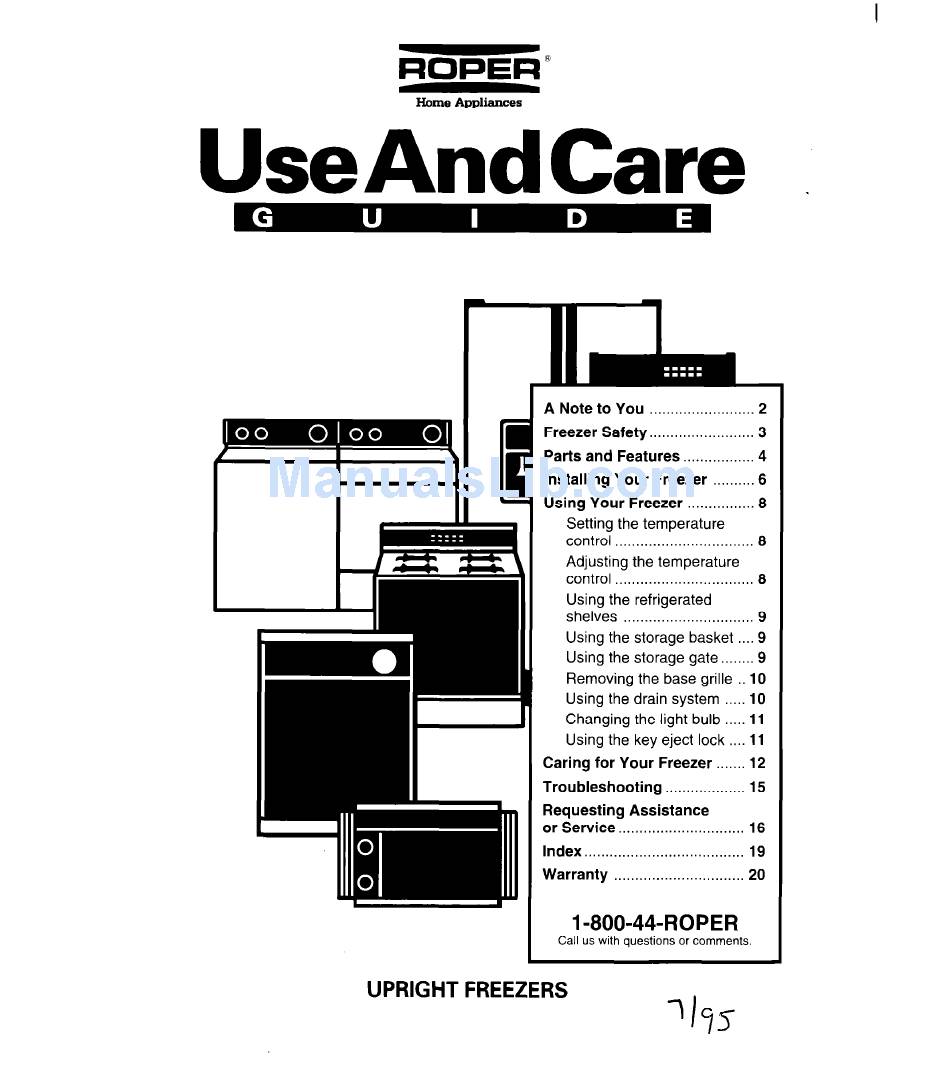

Page 1: Table Of Contents
Home Appliances UseAndCare UPRIGHT FREEZERS A Note to You ......2 Freezer Safety ...
Page 2: A Note To You
A Note to You Thank you for buying a Roper@ appliance. Roper appliances give you all the functionality ensure you enjoy years of trouble-free contains valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Card provided with your appliance.
Page 3: Freezer Safety
‘Child entrapment and suffocations are not problems of the past. Junked or abandoned freezers are still dangerous, even if they will “just sit in the garage for a few days.” If you are getting rid of your old freezer, do it safely.
Page 4: Parts And Features
Parts and Features This section contains captioned illustrations with where all parts and features are located and what they look like. Page references are included for your convenience. NOTE: The model you have purchased may have all or some of the parts and features shown and they may not match the illustration exactly.
Page 5 Style Model and serial number label - (on side wall) (P. 2) Temperature control (P. 8) (P. 9) Storage ;;“91”’ Leveling legs (P. 7) Light (on some models) (P. 11) Stationary L door shelves (number varies with model) ’ Key eject lock (on some models) (P.
Page 6: Installing Your Freezer
Installing Your Freezer Proper installation of any appliance is very important. This section will tell you,everything need to know to install your freezer properly. Installing the handle Remove screws from front of freezer door and discard. Locate handle assembly kit among packing materials.
Page 7: Choosing The Proper Location
Choosing the proper Read the following items before choosing the location for the freezer. See “Completing the installation” below before sliding freezer into place. 1. Pick a safe place, indoors, away from flammables such as gasoline. 2. Check the strength of the floor. It should hold the weight of a fully loaded freezer.
Page 8: Using Your Freezer
Using Your Freezer In order to obtain the best possible results from your freezer, you must operate it properly. This section will tell you how to do just that. Setting the temperature Turn the control to 4. This setting is designed to maintain the temperature at or near 0°F (-17.8%) under normal operating conditions.
Page 9: Using The Refrigerated Shelves
Using the refrigerated Your freezer is equipped with refrigerated interior shelves. Packages in direct contact with the shelves will have the best refrigera- tion. Fresh, unfrozen food packages should be stored directly on the shelves and not on top of already frozen food packages. When placing the food packages in your...
Page 10: Removing The Base Grille
Removing the base grille For manual-defrost models: The base grille will need to be removed when defrosting the freezer. To remove the grille: 1. Open the door. 2. Pull on both sides of the grille. To replace the grille: 1. Line up grille support tabs with openings in freezer cabinet.
Page 11: Changing The Light Bulb
Changing the light Electrical Shock Hazard Before removing the light bulb, either turn Temperature Control to OFF and unplug the freezer, or disconnect the electricity leading to the freezer at the main power supply. Shock and injury can occur if electricity remains connected.
Page 12: Caring For Your Freezer
Caring for Your Freezer Your freezer is designed to give you years of dependable things you can do to ensure a long product life. This section will tell you how to care for your freezer properly. Cleaning manual-defrost Defrost and clean your freezer when frost has built up to about ‘/4 inch (6 mm) thick- ness.
Page 13 7. Wash the inside walls with a solution of 2 tablespoons (26 mg) baking soda to 1 quart (0.95 L) warm water. 8. Rinse and dry thoroughly. 9. Use a sponge, cloth, or paper towel and mild detergent in warm water to clean outside of freezer, door liner, and gasket.
Page 14 What to do during 1. Call the power company. Ask how long power will be off. 2. Keep freezer closed if service is to be interrupted 24 hours or less. This will help food stay frozen. 3. If service is to be interrupted longer than 24 hours, do this: Remove all frozen food and store in a...
Page 15: Troubleshooting
Troubleshooting Before calling for service, please check the chart below for problems you can fix. It could save you the cost of a service call PROBLEM CHECK THE FOLLOWING The freezer Is the power cord plugged into a live circuit with the stops running proper voltage? Is there a blown fuse or tripped circuit breaker?
Page 16: Requesting Assistance
3. If you need FSP@ . . . replacement parts FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Roper@ appliance. FSP replacement parts will fit right and work...
Page 17: Index
Index This index is alphabetical. Look for the word or phrase you are interested in, then look for the page number. TOPIC ASSISTANCE Requesting ... BASE GRILLE Removing ... BASKET ... CLEANING Before using ... Frost-free models ... Manual-defrost models ... CONTROL..
Page 18: Requesting Assistance Or Service
C. Damage to your freezer caused by accident, misuse, fire, flood, acts of God, or use of products not approved by Whirlpool. D. Food loss coverage for freezers used in commercial applications. E. Repairs to parts or systems caused by unauthorized modifications made to the appliance.
