SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO 0021044 Quick Start Manual

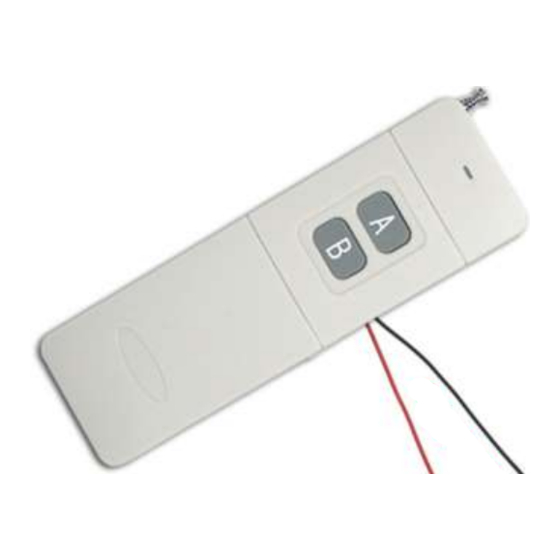

Long Range 1000M RF Remote Control / Transmitter With Extended Input Wires

Product Description:

Model No.: 0021044 (CB-2V)
With Extended Input Wires
Triggering method: DC power 5-28V input
Shell Color: Grey
Channel/Button: 2
Button Symbol: A, B
Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for a week, if you want a longer working time, please use a 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000m / 3000ft (theoretically)
The distance of 1000m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be
hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may
not reach 1000m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135mm x 42mm x 25mm
Weight: 95g
Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.

Controlling the device by pressing buttons on the transmitter:

Press big button on the transmitter -> On, the device controlled by the receiver starts to work;
Press small button on the transmitter -> Off, the device controlled by the receiver stops working.
Controlling the device by inputting or no inputting DC 5~28V power to red wire and black wire of the transmitter:
When it has DC 5~28V power input for red wire and black wire of the transmitter, the transmitter will be triggered and then it will send an RF signal of
"ON" to turn on the receiver, the device controlled by the receiver will starts to work.
When it does not have DC 5~28V power input for red wire and black wire of the transmitter, the transmitter will be triggered and then it will send an
RF signal of "OFF" to turn off the receiver, the device controlled by the receiver will stops working.

Add Receiver:

This transmitter can remote control different receivers, including :
Relay Output: Latched Control Mode
0020042 S1L-DC12
0020330 S1U-AC220
0020046 S1PU-DC12
0020275 S1PU-AC220
0020466 S1U-AC220-ANT3
0020302 S1PU-DC12-ANT3
0020488 S1PU-AC220-ANT3

How to set up the 8-bits code of the transmitter:

1. Open the transmitter shell, then you will see the circuit board. There are two rows pads and one row of chip feet on the back side.
2. The upper row of pads is "L" side, and the lower row of pads is "H" side.
3. If solder the middle row of chip feet to the "L" side, it is code 1. If solder the middle row of chip feet to the "H" side, it is code 2. Don't solder to any
side, it is code 0.
4. The 8-bits code order is from left to right (from A1 to A8).
5. Here is an example, the 8-bits code in the picture is 00010121, solder as the following way:
6. Code 0: don't solder any side, like A1、A2、A3、A5.
7. Code 1: solder to the "L" side, like A4、A6、A8.
8. Code 2: solder to the "H" side, like A7.
Power Output: Latched Control Mode
0020415
0020423
0020391
0020088
0020393
0020052
0020053
SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO.,LTD
Http://www.carymart.com
S1XL-DC12
S1X-DC12
S1X-AC220
S1L-AC220
S1X-AC220-ANT3
S1PX-DC12-ANT3
S1PX-AC220-ANT3
E-Mail: sale@carymart.com
