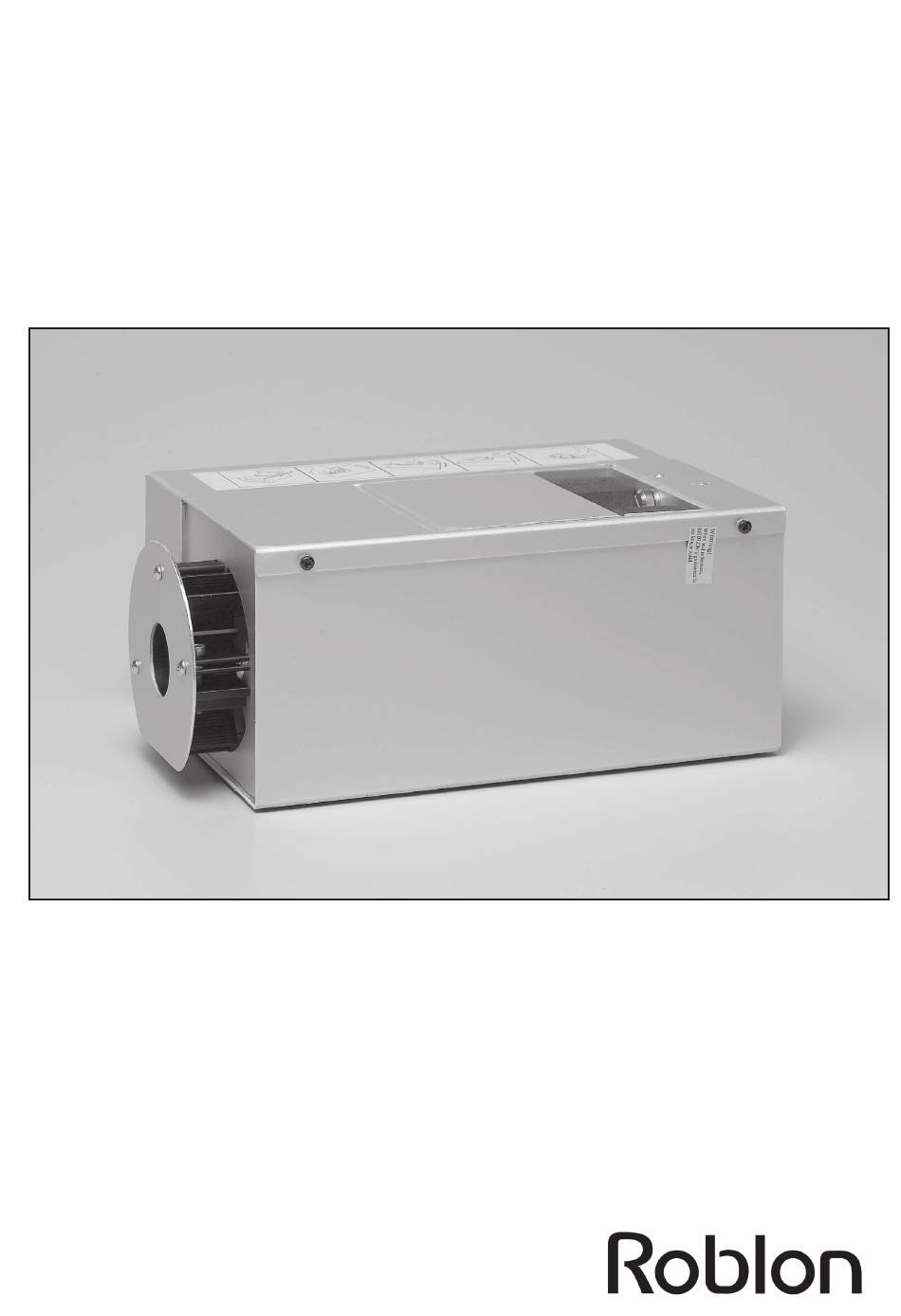

- Page 1 F L 1 5 0 - 3 B Metal Halide Light Generator for Fiber Optic Lighting Systems User Manual This user manual describes the following product: Item number 0161 0000 FL 150-3 B. White light. 99082019 Rev. 30.06.09...
-
Page 2: Table Of Contents
· have a satisfying, uninterrupted system illumination Your Roblon Fiber Optics metal halide light generator, type FL 150 - 3, is intended for indoor use in fiber optic lighting systems using either glass or PMMA fibers. The metal halide light generator has been developed to meet the requirements of a fiber optic lighting system, where the light output intensity and efficiency must be optimized in order to ensure the best performance. -
Page 3: Product Overview
1 . 2 P r o d u c t o v e r v i e w a n d p a c k i n g l i s t When opening the box, the following should be included: FL 150-3 B light generator Lamp (fitted in the light generator) -
Page 4: Installation Instructions
FL150-3 User Manual 2 . 0 I n s t a l l a t i o n i n s t r u c t i o n s Unpack the unit, and make sure that the grounded power supply cord is suitable for your country. The light generator is prepared for universal power input, capable of running from 100 - 240 V (nominal) 50 or 60 Hz. -
Page 5: Mounting In Closed Compartments
FL150-3 User Manual 2 . 2 M o u n t i n g i n c l o s e d c o m p a r t m e n t s The FL 150 - 3 is suitable for mounting in closed compartments such as cabinets or showcases. When installing in closed compartments two very important criteria must be fulfilled. -
Page 6: Fiber Types
FL150-3 User Manual 3 . 0 Fiber types All glass and plastic (PMMA) optical fibers can be used with the FL 150 - 3. Endlight as well as sidelight is applicable. For all fiber types: • Do not bend more than the max allowable bend radius •... -
Page 7: Care, Maintenance And Replacement
FL150-3 User Manual 5 . 0 C a r e , m a i n t e n a n c e a n d r e p l a c e m e n t Please observe the maintenance schedule very carefully in order to ensure the optimal performance of the lighting system. - Page 8 FL150-3 User Manual Component Tasks and explanation Inspection Operator period D. Light generator Inspect and clean the glass filters and if Twice a year Retailer glass filters necessary change. and always The glass filters and the harness common end when you of the fiber optics should be wiped with a dry, change the lintfree cloth when cold.
-
Page 9: Replacement Tasks And Explanations
FL150-3 User Manual 5 . 2 R e p l a c e m e n t s t a s k s a n d e x p l a n a t i o n s Component Tasks and explanation Replace period Operator A. -
Page 10: Troubleshooting
FL150-3 User Manual 6 . 0 T r o u b l e s h o o t i n g If you experience a faulty unit, go through this checklist to be able to resolve the problem yourself. Symptom Cause? Solution No light... -
Page 11: Spare Parts And Accessories
FL150-3 User Manual 7 . 0 S p a r e p a r t s a n d a c c e s s o r i e s Description Type Roblon item number Lamp Philips CDM-SA/R 150W 6515 0005... - Page 12 Roblon accepts no responsibility for possible errors in printed and electronic material. Roblon reserves the right to alter or discontinue products without notice. © 2012, Roblon A/S. Roblon Lighting Tel: +45 9620 3366 Nordhavnsvej 1 Fax:+45 9620 3396 9900 Frederikshavn info@roblon.com...
