LEDLux Lucci 178195 Installation Instructions

Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of this luminaire. Please keep the instructions for future
reference.

Warranty

•
This luminaire is covered by a 12 month warranty from the date of purchase. Please retain proof of purchase.
•
Warranty will be void if there is any damage due to improper usage or modification to the luminaire.
•
Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void warranty.

Installation Requirements

•
Select a suitable location for this luminaire:
- This luminaire is not waterproof.
- This luminaire is suitable for indoor use only.
- Keep away from liquids, dusty, humid, direct sun light, cooking areas or hot areas.
•
Lay out all the components on a smooth surface and make sure there are no components missing.
If parts are missing, return the complete luminaire to the place of purchase for inspection or replacement.
•
Check whether the luminaire has been damaged during transport. Do not operate/install any luminaire which
appears damaged in any way. Return the complete luminaire to the place of purchase for inspection, repair or
replacement.

Operation Directions

Operation
1. Use the 'On/Off' switch to turn the luminaire on/off or to the motion sensing mode as below:
a. Long press the On/Off switch for 3 seconds then the luminaire will be permanently on;
b. Short press the On/Off switch once again then the luminaire will enter the motion sensing mode (Indicator
will flash once in green);
NOTE: Motion sensing mode – The luminaire will be turned on automatically when any motion is detected. It will
be turned off after 20 seconds if no motion is detected. (NOTE: The luminaire will only be activated when the
ambient light < 10lux)
c. Short press the On/Off switch again then the luminaire will be permanently off.
2. Strong magnet is provided on the back of the luminaire. Stick the back of the luminaire on the metal surface of the
desired location.
NOTE: There is a metal bar provided with '3M' adhesive tape in case no metal surface is found on the desired
location. Ensure the surface is smooth, dry and clean before applying the '3M' adhesive tape.

Charging

Plug the provided USB cable in the charging port and connect the USB cable to computer/laptop or power adaptor to
charge the luminaire. The charging indicator will be red under charging and will be green when fully charged.
NOTE: Please ensure an appropriate power adaptor is used for charging according to the rated input (5V DC, 1A) of this
luminaire.
1 | P a g e

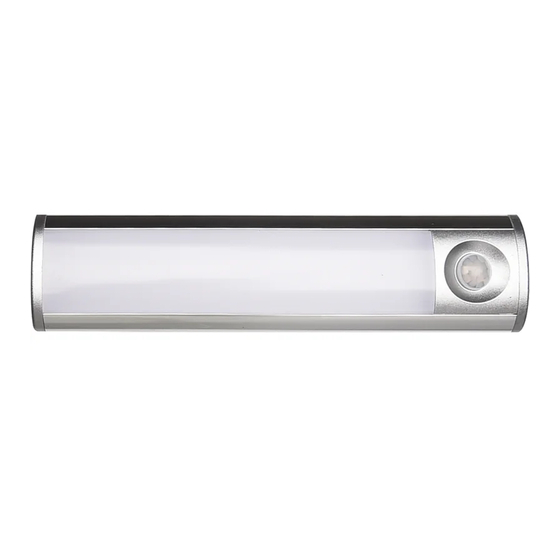

HANDY LIGHT BAR
SKU# 178195, 178196, 178197
Rated Voltage 5V DC, 1A
v 1 . 1 ( 0 6 / 2 0 2 0 )
