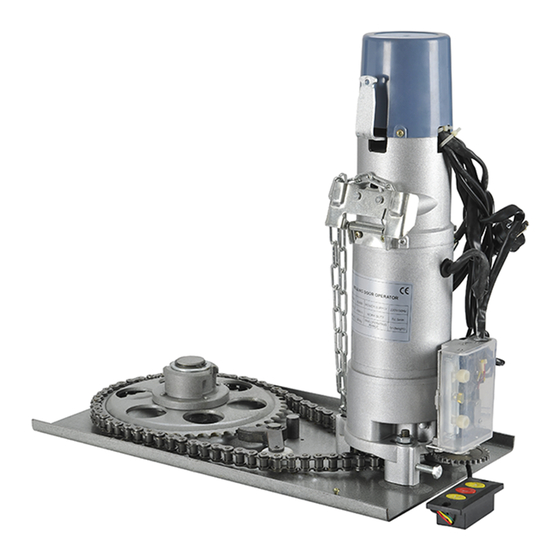

KJ800 KJ1000
Non Spring-Balanced Roller Door Operator
USER'S MANUAL
WARNING!
ONLY QUALIFIED AND EXPERIENCED TECHNICIANS
S HO ULD ATTEMPT INSTALLATION OR SERVICE TO THIS
UNIT,
OTHERWISE,
SERIOUS
PERSONAL
INJURY,
DEATH, OR PROPERTY DAMAGE MAY OCCUR.
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER
REFERENCE.
Total Door Automation (Australia) Pty Ltd
www.totaldoorautomation.com.au
sales@totaldoorautomation.com.au
Advertisement
Table of Contents
Summary of Contents for Total Door Automation KJ800
- Page 1 ONLY QUALIFIED AND EXPERIENCED TECHNICIANS S HO ULD ATTEMPT INSTALLATION OR SERVICE TO THIS UNIT, OTHERWISE, SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE MAY OCCUR. PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE. Total Door Automation (Australia) Pty Ltd www.totaldoorautomation.com.au sales@totaldoorautomation.com.au...
-
Page 2: Table Of Contents
ROLLING DOOR OPERATOR USER’S MANUAL OUTLINE 1. Important safety information………………3 2. Main technical parameters ………………3 3. Introduction…………………………………4 4. Installation and adjustment ………………4 5. Electrical ……………………………………8 6. Maintenance ………………………………8 7. Troubleshooting……………………………9 8. Packing list…………………………………9... -
Page 3: Important Safety Information
Model （kg） （high :m） nch） (N.m) speed (ANSI standard) （r/min） KJ800 220V/50Hz 6” KJ1000 220V/50Hz 1000 6” Note: the ‘Max. lift’ listed above is not the max. door weight, and the door weight should less than ‘Max. lift’. Wind load... -
Page 4: Introduction
ROLLING DOOR OPERATOR USER’S MANUAL 3. Introduction Main features Compact design, attractive appearance, safe and reliable performance. It has the advantages of light weight, low noise, convenient to install, safe and reliable performance. Manual operation in case of power failure. ... - Page 5 Mounting size (see Fig.3 and table 2) Fig.3 Table 2 Model Center distance (m) Length (L) Width (B) KJ800 KJ1000 Left side square plate Solder the bearing bracket on the square plate as shown in Fig.4. Fix the square plate on the wall or wall bracket.
- Page 6 ROLLING DOOR OPERATOR USER’S MANUAL Bearing Bearing Square plate Bearing bracket Fig.4 Roller installation Install the roller as shown in Fig.5. Square Circular Bigger Bearing Circular Sprocket Bearing Cylindrical pin plate I plate bracket Roller plate II sprocket bracket Solder circular plate II to the roller.
- Page 7 ROLLING DOOR OPERATOR USER’S MANUAL Fig.6 Limit switch see Fig.7 Limit switches are needed to stop the door at the correct opened and closed positions. Rotate the screw to free the limit cam wheel, open the door to desired position, turn the limit cam wheel until OPEN limit switch clicks, finally tighten the screw.
-
Page 8: Electrical
Table 3 Model Pawl Chain KJ800 Have Pull in one direction KJ1000 Have Pull in one direction Release lever Pull the release lever to disengage the door quickly. -
Page 9: Maintenance
ROLLING DOOR OPERATOR USER’S MANUAL External button switch (see Fig.9) MOTOR MOTOR GREEN YELLOW WHITE GREEN YELLOW WHITE WHITE OPEN OPEN OPEN YELLOW STOP STOP STOP GREEN CLOSE CLOSE CLOSE EXTERNAL BUTTON SWITCH TWO EXTERNAL BUTTON SWITCH Fig.9 The rolling door operator must be grounded, connect grounding wire to the sprocket bracket. If the door running direction is wrong, exchange phase wires. -
Page 10: Packing List
ROLLING DOOR OPERATOR USER’S MANUAL 8. Packing list After receiving the control box, you should make an unpack-inspection, in which you should check whether the product was damaged. If you have any problem please contact our sales agent. You should find the following items in our standard packing: Bearing Sprocket bracket Square plate...
