EZSmart App User Manual - FTBTLD
Introduction and Features:

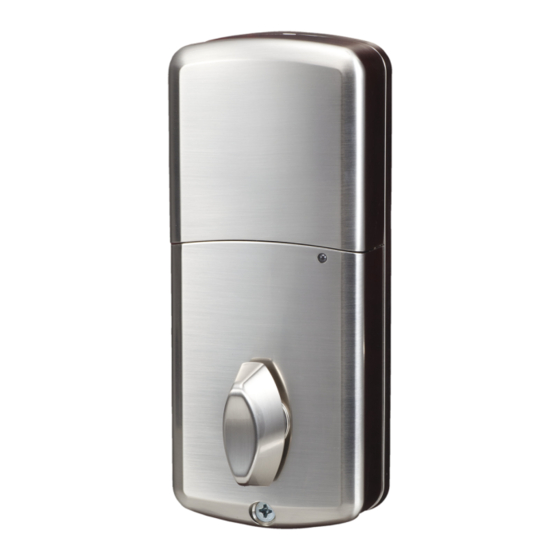

FORTESSA Smart Lock-FTBTLD, is the most economical
way to provide secure and convenient control of your deadbolt
door lock. You can unlock the door by accessing the App for
App Unlock or pressing the *Touch Button (* App must be running
for authentication) or simply using the Key Fob. EZSmart App
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FTBTLD and is the answer not in the manual?

Questions and answers

Summary of Contents for fortessa FTBTLD

  • Page 1 EZSmart App User Manual - FTBTLD Introduction and Features: FORTESSA Smart Lock-FTBTLD, is the most economical way to provide secure and convenient control of your deadbolt door lock. You can unlock the door by accessing the App for App Unlock or pressing the *Touch Button (* App must be running...
  • Page 2 This will prevent accidentally unlock from "Touch unlock function". The FTBTLD comes with advanced and easy to install ‘deadbolt lock replacement kits’ and powerful free ‘Mobile App’. In addition, you can assign a temporary authority for your guest to visit your house without giving them a physical key.

  • Page 3: How To Set Up

    FTBTLD lock with a secure ID Code (FTBTLFOB key fobs can be purchased separately). There is a unique ID code for each FTBTLD virtual key (including Key Fob), which cannot be duplicated or transferred. Each virtual key can only be registered once to the APP. Only the Owner can issue a shared virtual key to all users (Family / Guest / Key Fob).
  • Page 4 The LED indicator will turn Orange for 10 seconds after installing 4 (Note: batteries into the battery compartment of the FTBTLD. FTBTLD lock has been paired before, the LED will be turned off. You can follow hardware-reset procedures to reset the device to...
  • Page 5 4. Download the APP (For Demo Videos please refer to the Challenger website FTBTLD Mobile App is available from both the Apple App Store and the Google Play Store. Simply download the App "EZSmart" and register the ‘Owner Key’ with FTBTLD Device to initiate the system.
  • Page 6 same or equivalent name/symbol will behave the same as hardware vendors (Android’s device) allow. On Android device we can only test against major vendors. Full compatibilities and performance may vary on each device. Step 1 Fig-3 Fig-2 Fig-3a Step 2: Congratulations! The App has been installed successfully! Please refer to the following steps to operate.
  • Page 7 New passcode is for emergency reset, i.e. lost phone / security issues. Use Owner's App to reset the FTBTLD lock to create a New Unique-ID and re-send sharing virtual key to existing users.
  • Page 11 b> the following information provides a more detailed explanation how dose EZSmart lock works. ◢Press ‘+’ to add the Lock to the App. The App will auto scan 1 (Tap "icon" to select this Lock for App to control) 2 (Tap ">" to go down to next level) Fig-4 available EZSmart locks in the vicinity.
  • Page 12 If you have done the “FTBTLD soft reset / hardware reset”, Tip 1: you have to delete lock from App first for all known devices, and this will prevent previous devices try to pair with FTBTLD by using the old encrypted virtual key. This can lockup the system from Registration.
  • Page 13 ◢ Lock Setting (Fig-5): 1. Update the Name Field. 2. Auto Lock period (Factory preset value is 30 seconds). 3. "Touch Unlock" option and unlock distance slider for "Near/Far". If you enable this option, EZSmart App has to run in the background to provide "authentication".
  • Page 14 You have to manual adjust "Near/Far" once to match your "unlock distance preference". Fig-6 ◢ Select ‘Lock’ option: To view all paired FTBTLD locks (Fig-6◢ Standard icon for deadbolt lock. Keypad lock icon. Select ‘Lock-icon’ option: To allow App to control this FTBTLD lock Only in this selection, the App can do "Authentication".
  • Page 15 Searching Authenticated *Failed Authentication Fig-7 Unlock State Lock State 6. EZSmart Mobile App’s icon / symbols (Fig-7): ◢Lock - Top-level Lock view. It shows available Locks and selection menu. Use ‘+’ to add a new lock. ◢Key - Top-level Key view, it shows available key status and selection menu.
  • Page 16 ◢Record - FTBTLD activities log. Only Owner Key can view this log ◢Info - EZSmart App’s version and App Guide (Fig-8). Fig-8 Web Resource Please download "Google Drive" App and Tap "App Guide" to access more FTBTLD Lock Web Resources: Demo Video; User Guide and FAQ ….
  • Page 17 QR Code image for more than one user. After 5 minutes, it will automatic expire. Caution Note: Because Bluetooth connection is one-to-one relationship. After virtual key sharing step, the Owner's phone should exit from the background (swipe-off) to allow the FTBTLD...
  • Page 18 Lock device to connect to New User's Bluetooth device for registration. If you have shared more than one virtual key, make sure all phones are in Airplane mode or swipe-off the EZSmart App during registration new virtual key. From Owner EZSmart App:...
  • Page 20 From New User's EZSmart App: By Email Method: This method is designed for remote virtual key sharing condition. It is useful for temporary usages by inviting guest.
  • Page 21 “Lock Key” to the user. A new User has to import "Lock Key" to the App. Please refer to the next section “Add new FTBTLD users: “Sharing virtual key by email” for detail steps.
  • Page 22 (swipe-off) to allow the FTBTLD Lock device to connect to New User's Bluetooth device for registration. If you have shared more than one virtual key, make sure all phone is in Airplane mode or swipe-off the EZSmart App during registration new virtual key.
  • Page 23 30 cm (12 inches) or control by "Far/Near" slider. When you come back from outside (approaching to the lock), EZSmart App detects the FTBTLD lock is available and BLE connects to the smartphone. You can press the "Touch-Button"...
  • Page 24 Key Fob Unlock Once a Key Fob has been registered with the FTBTLD lock, you can press key button of Key Fob to unlock / lock. The Key Fob will beep to confirm the action. Use Fig-14 to replace the battery.
  • Page 25 2. Adding new EZSmart users: Sharing virtual key by email New user of FTBTLD must install EZSmart App and initiate the ‘Request Key’ by email. Owner can generate an encrypted key ID Code and email ‘Lock Key” back to the user. User will import ‘Share...
  • Page 26 Step 1: New User initiates "Key Request" email From Owner's EZSmart App:...
  • Page 27 Step 2: Owner imports "Key Request" from email and generates unique ID virtual key code From New User's EZSmart App:...
  • Page 28 Step 3: New user imports "virtual key code" from email From New User's EZSmart App:...
  • Page 29 Lock Turn-Piece Fig-15 ① In front of the FTBTLD Lock, press and hold Key Fob’s button (Fig-14/15) and turn ‘Power Switch’ to the left (on) at the same time. A rapid RED flashing LED comes up (about 3 seconds), Key Fob is ready to register with the FTBTLD Lock.
  • Page 30 Please replace the CR2032 coin battery as soon as possible. 4. Key Fob’s features: ①Add Key Fob to FTBTLD lock, it will assigned Key# 11 -17 to the App. The App can rename / delete and show up on activities log.
  • Page 31 ③ Key Fob beeping notifications means: Beeping Notification Function One long beeps within 2-3 seconds. Unlock Green LED on. One long beeps and follows with two Lock beeping sound within 2-3 seconds. Red LED on. One long beeps after 10 seconds Error Red LED on.
  • Page 32 If you have following warning and error messages, please follow the suggestion steps to resolve the issue. ① When FTBTLD lock is in low battery (less than 10%), the App will pop up ‘Low battery message’ (Fig-16). Please change the batteries ASAP.
  • Page 33 ① Unlock the door by using any virtual key or use an emergency physical key; remove the battery cover and batteries as well. Release three screws and detach the Rose Light Ring cable from the FTBTLD lock. The hardware’s Reset Button is on the back of the controller board (Fig-18).
  • Page 34 (Hardware Reset Mode). Release the Reset Button once you have entered the Hardware Reset Mode and press button again for 2 seconds to allow FTBTLD lock to erase all Key records from the system. ③ The LED indicator will be in Orange after the Hardware Reset is done.
  • Page 35 6. Use Lock's button and turn-piece to set Auto Lock Timer Procedure: ( Note: Auto Lock preset timer is 30 seconds.) In normal mode: Each lock / unlock "Button Press" will response with single beeping sound. Auto Lock Timer setting mode requirement: Lock is in Lock position (it will show RED light once) and App is running in foreground.
  • Page 36 "Turn-Piece" for 5 seconds increment for each turn. For 40 seconds are 8 turns then release button to set the timer to "40". (Please use App to confirm that before using it). 6. FTBTLD Smart Lock Specification: Bluetooth 4.0/4.1/4.2 - Bluetooth Low Energy Connectivity ISM 2.402 - 2.480 MHz...
  • Page 37 iOS devices: iOS 9 / 10 / 11+ with BLE support Compatible devices - iPhone 4S / 5 /5C/5S/6/6S/6P/6SP and Devices 7/7P/8/8P/ iPhone X. Android devices: OS 4.4.2 / 5+ / 6+ / 7+ / 8.0 with BLE support devices. (Only major brands have been tested: Samsung / Google Phones / Moto / Sony / LG / HuaWei / HTC….
  • Page 38 Due to our policy of continuous improvement we reserve the right to change specification without prior notice. Errors and omissions excepted. These instructions have been carefully checked prior to publication. However, no responsibility can be accepted by Challenger Security Products for any misinterpretation of these instructions. Distributed by: CHALLENGER SECURITY PRODUCTS 10 Sandersons Way, Blackpool, FY4 4NB...
