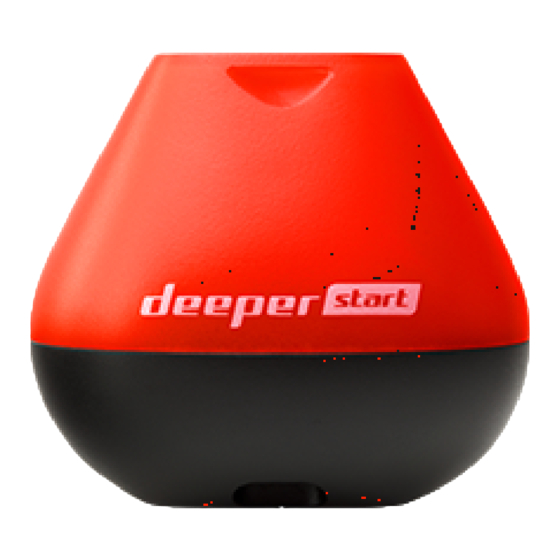

Deeper Smart Sonar START


Technical Specifications
Weight: 2.1oz / 65g
Size: 60 x 65 x 65-mm / 2.3 x 2.5 x 2.5in
Sonar Type: Single beam
Frequency (Beam cone): 120 kHz, 40°
Depth Range Max/Min: Max 165ft / 50m, Min 1.6ft / 0.5m
Sonar Scan rate: 10 scans per second
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Internal Battery: Lithium Polymer, 3.7V Rechargeable, 850mAh
Power Supply input (for charging battery): 5V DC, 650mA max
Power Adapter (not included in the box, recommended):

Advertisement

loading
Need help?

Need help?

Do you have a question about the START and is the answer not in the manual?

Questions and answers

Related Manuals for deeper START

Summary of Contents for deeper START

  • Page 1 Deeper Smart Sonar START     Technical Specifications Weight: 2.1oz / 65g Size: 60 x 65 x 65-mm / 2.3 x 2.5 x 2.5in Sonar Type: Single beam Frequency (Beam cone): 120 kHz, 40° Depth Range Max/Min: Max 165ft / 50m, Min 1.6ft / 0.5m Sonar Scan rate: 10 scans per second Operating Temperature: 0°C to 40°C / 32°F to 104°F...
  • Page 2 Charging Time: 2.5 hours How sonars work Before you start using your Deeper device, it is important to understand some basic points about how sonars work. 1. Sonars scan in cones.  This means when you mark a fish or feature, it is somewhere within the cone sent down by your sonar (not necessarily directly below your sonar).
  • Page 3 2. Sonar displays constantly scroll When your Deeper is in the water, the sonar will be scanning constantly. This means the display continually scrolls from right to left, even if the sonar itself isn’t moving. Read our page on how sonars work for a detailed explanation of these points, plus lots more useful information that...
  • Page 4 Standard mode. Basic imaging (all models) In Standard mode set to basic imaging, you will be shown the bottom and Fish Icons. In this mode, your Deeper sends much less information to your phone. So, this mode can be useful for preserving battery life, improving the connection range, and also for inexperienced anglers who just need to know bottom depth and where the fish are.
  • Page 5 Pievienošanas punkti: krasta makšķerēšanai pārliecinieties, ka esat piestiprinājis savu auklu pie 3 stiprinājuma punkta apakšējā piestiprināšanas punkta, kas atrodas uz jūsu Deeper (tas neattiecas uz Deeper START, kuram ir tikai viens piestiprināšanas punkts). Izmantojot vienu no citiem piestiprināšanas punktiem, hidrolokatoru atradīsies...
  • Page 6 Deeper, izmantojot sānu mešanas tehniku. Ievelkot to Kad Jūs velkat atpakaļ savu Deeper sonāru, pati svarīgāka lieta, ko atcerēties ir tas, ka tas ir jādara lēnām un vienmērīgi. Lūk kāpēc: Lēnām tiniet iekšā: Pārlieku ātra spoles tīšana var izraisīt Deeper šūpošanos no vienas puses uz otru. Ja tas notiek, sonāra rādījumi būs mazāk ticami.
  • Page 7 When you connect your Deeper CHIRP+ to a power source, it automatically turns on. An orange light will flash in intervals to show the device is charging. The number of flashes indicates the status of the battery.
  • Page 8 Deeper Sonar in water. ⓘ Make sure that the threads of the Deeper top cover and body are always clean, do not attach the top cover if there is sand or dirt on the thread of the top cover or the Deeper. Clean it first.
  • Page 9 Jūsu Deeper ir veiksmīgi savienots ar viedtālruni vai planšeti. T.i. Savienots: Deeper PRO B23A Atvienots Ir pārtraukts savienojums starp jūsu Deeper sonāru un mobilo ierīci. Noklikšķiniet instrukcijas. Savienošana / atkārtota savienošana Jūsu sonārs mēģina izveidot vai atjaunot savienojumu ar jūsu mobilo ierīci. Lūdzu, sekundes, līdz ierīces atkal izveido savienojumu.
  • Page 10 1,3 m (4,3 pēdām). Nezāle: nezāļu gultne un veģetācija ir parādīta zaļā krāsā. Zivju bari: Deeper sonāri skaidri parādīs ēsmas zivju barus, kuras attēlo kā dažādu formu un izmēru mākoņus. To precīzais izskats būs atkarīgs no zivju skaita un laivas ātruma, ja velcēsiet.
  • Page 11 Mount. Please also note that it is only possible to connect to the Deeper using one smart device at a time. This means it will be impossible to connect to a Deeper Sonar if it is already connected to another phone or tablet. To switch off all current connections, simply take the Deeper out of the water, wipe it and wait for 5 minutes for the unit to turn off.
  • Page 12 When you connect your Deeper PRO or PRO+ to a power source, it automatically turns on. An orange light will flash in intervals to show the device is charging. The number of flashes indicates the status of the battery.
  • Page 13 Deeper Sonar in water. ⓘ Make sure that the threads of the Deeper top cover and body are always clean, do not attach the top cover if there is sand or dirt on the thread of the top cover or the Deeper. Clean it first.
  • Page 14 If the light blinks rapidly without stopping there is a problem with charging. In this case, please follow these 2 steps. 1. Check the temperature. If it is 0°C / 32°F or lower, please try charging your Deeper START in room temperature conditions.
  • Page 15 Deeper Smart Sonar PRO Technical Specifications Weight: 3.5oz / 100g Size: 65mm / 2.5in in Diameter Sonar Type: Dual Beam Frequency (Beam cone): 290 kHz, 15° and 90 kHz, 55° Depth Range Max/Min: Max 260ft / 80 m, Min 2ft / 0.5m Sonar Scan rate: Up to 15 scans per second Operating Temperature: -20°C to 40°C / -4°F to 104°F...
  • Page 16 My Deeper My Deeper is a personal account that will allow you get the most from Deeper’ s range of products and services. My Deeper account is absolutely free, and is mandatory to have in order to use the Deeper Sonar. You cannot use the FishDeeper app without an account.
  • Page 17 To use the Deeper sonar, you will need to Download the app from App Store or Google Play. You will see a register screen when you first launch the app. Only registered users will get all the features that application can offer.
  • Page 18 Pairing with an Android mobile device: Be sure that your Deeper Sonar is switched on (either connected to a power source or in the water); Open Settings in your smartphone or tablet and turn on Wi-Fi; Find your Deeper sonar in the Wi-Fi devices list and click to pair it;...
  • Page 19 If you put your Deeper CHIRP+ in a fish tank, cup, bucket, bathtub, or similar container at home you will be able to turn the device on and pair it with your mobile device. But most likely the device won’t be able to scan properly –...
  • Page 20 Sonar settings can be accessed by clicking the gear icon on the top right corner. This will open a menu with all available settings for your model of Deeper sonar. You can close the menu at any time by sliding it to the right.
  • Page 21 Basic sonar display filters out the amount of information and shows only the basic data – bottom structure, depth, fishes. Deeper START has Basic sonar display enabled by default. Beam angle – switch between the sonar beam angles of your Deeper sonar. This setting is not available for Deeper START Sensitivity –...
  • Page 22 – Day and Night - which can be used for the best viewing of your sonar readings in either bright sunny conditions (Day mode) or low light conditions (Night mode). This setting is not available for Deeper START...
  • Page 23 The Night Fishing feature should be turned on when fishing at night or in low light conditions. With the Deeper START it can be activated immediately, whereas with the Deeper PRO, PRO+ and 3.0 models you will need to replace the standard cover with a Deeper Night Fishing...
  • Page 24 You will see that your maps and scans are grouped by location (all scans are grouped by the water body ). Once you have selected the location and sessions you want, you are ready to start analyzing them. What you see on screen will vary depending on the fishing mode you used for scanning at that location: For Standard Mode and Ice Fishing...
  • Page 25  Make sure that your Deeper App is up to date. If you’re using the latest version of the app and it fails to connect to your Deeper even though you have successfully established a Bluetooth connection previously, please follow these steps:  Remove (Forget) Deeper from your smartphone's Bluetooth devices.
  • Page 26 Please also note that it is only possible to connect to your Deeper using one smart device at a time. This means it will be impossible to connect to a Deeper Sonar if it is already connected to another phone or tablet. To switch off all current connections, simply take the Deeper out of the water, wipe it and wait for 5 minutes for the unit to turn off.
  • Page 27 You can try your sonar at home, but you probably won’t see fish accurately If you put your Deeper PRO or PRO+ in a fish tank, cup, bucket, bathtub, or similar container at home you will be able to turn the device on and pair it with your mobile device. But most likely the device won’t be able to scan properly –...
  • Page 28 Find your Deeper START in the list of available Wi-Fi networks and click it. Your Deeper START is now connected with your mobile device – you might see Internet may not be available  displayed, or something similar. Don’t worry, this is normal. It simply means that your mobile device’s WiFi...
  • Page 29 Find your Deeper START in the list of available Wi-Fi networks and click it.   Your Deeper START is now connected with your iPhone or iPad - you might see  No Internet Connection written. Don’t worry, this is normal. It simply means that your mobile device’s WiFi connection is now being used for your...
  • Page 30 You can try your fishfinder at home, but you probably won’t see fish accurately If you put your Deeper START in a fish tank, cup, bucket, bathtub, or similar container at home you will be able to turn the device on and pair it with your mobile device. But most likely the device won’t be able to scan properly –...
  • Page 31 Deeper Smart Sonar PRO+...
  • Page 32 Technical Specifications...

  • Page 33: Status Bar

    On-shore GPS mode (PRO+ or CHIRP+ models). Looking for GPS – The GPS connection of your Deeper is being established. This status appears only in On-shore GPS mode (PRO+ or CHIRP+ models). Click here for the tips on how to increase the GPS connectivity.
  • Page 34 Deeper sonars have depth requirements for accurate scanning:   Deeper PRO, PRO+ Narrow beam min depth 2ft / 0.5m; Wide beam min depth 4.3ft / 1.3m Max depth (both beams) 260ft / 80m Deeper START Min depth 4.3ft / 1.3m;...
  • Page 35   Velcēšana Kad esat piestiprinājis savu Deeper PRO, PRO + vai CHIRP + kajakā vai laivā, izmantojot Deeper Flexible Arm Mount, esat gatavs doties velcēt. Velcēšana ar lielāku ātrumu (piemēram, 3,5 jūdzes stundā / 5 km / h) ir piemērota, lai iegūtu vispārīgus dziļuma rādījumus. Palēniniet ātrumu līdz 2 jūdzēm stundā / 3 km / h vai lēnāk, lai precīzi atrastu zivis un detalizēti pārbaudītu zemūdens struktūru.
  • Page 36 2. Are you using good quality line that is not worn or frayed? Is the line firmly tied to the attachment bolt on your Deeper? This is important because your sonar could be lost if it is not tied securely.
  • Page 37 vidējas un lielas. Pareiza zivju un tās lieluma identificēšana ir atkarīga no daudziem mainīgiem lielumiem, un zivju svars ir tikai viens no tiem. Zivju ikonas nav visprecīzākais veids, kā spriest par zivju lielumu, jo algoritms varētu parādīt vienu lielāku zivi, ja patiesībā patiesībā ir dažas mazas zivis. Visprecīzākais veids, kā novērtēt zivju lielumu, ir izslēgt Zivju ikonas.
  • Page 38 Deeper hits the water after being cast out, when there are heavy waves, or when it is tilting because it is being reeled/trolled too fast. The Deeper App will start displaying the correct depth as soon as unit stabilizes in the water.
  • Page 39 Before you cast out your Deeper sonar, it is very important to ensure it is correctly attached to your line and rod. Every time you attach your Deeper sonar, please be careful to attach it correctly and check these points: 1.
  • Page 40 Switch on your Deeper for scanning Launch the Deeper app in your smartphone or tablet, then put your fishfinder in the water close to where you are (no further than 2m / 6ft). Your Deeper START will automatically turn on and connect with your mobile device.
  • Page 41 Deeper Smart Sonar CHIRP+ TECHNICAL SPECIFICATION Material: ABS enclosure, Titanium inserts Sonar type: 3 Frequency CHIRP Narrow CHIRP 675 kHz (cone angle 7°) Medium CHIRP 290 kHz (cone angle 16°) Wide CHIRP 100 kHz (cone angle 47°) Target separation: 1 cm. / 0.4 in Narrow Chirp...
  • Page 42 Color: Military Green    Kasting og skanning Kast Deeper CHIRP + til stedet du vil skanne (opptil 100 m / 330 ft unna) og sveiv det inn igjen. Når du sveiver sakte inn, vil du se undervannsskanninger på smarttelefonen eller nettbrettet.
  • Page 43 Pamati ledus makšķerēšanai Deeper PRO, PRO + un CHIRP + ir piemēroti zemledus makšķerēšanai - tie darbojas temperatūrā līdz -20 ° C / -4 ° F. Deeper START nav paredzēts zemledus makšķerēšanai - tas darbojas temperatūrā līdz 0 ° C / 32 ° F. Ja izmantojat savu PRO / PRO + / CHIRP + zemledus makšķerēšanai, ieslēdziet zemledus makšķerēšanas režīmu...
  • Page 44 Ledus Biezums Deeper sonārs peld uz ūdens virsmas (nevis ir iegremdēti kā citi ledus mirgotāji). Tas nozīmē, ka tad, kad ledus ir ļoti biezs, hidrolokatoru var neskenēt pareizi, jo hidrolokatoru konuss iesit ledus cauruma malās un hidrolokatoru impulsi tiek atspoguļoti atpakaļ. Lai no tā izvairītos, varat darīt divas lietas: urbiet lielākus ledus caurumus, ja ledus ir ļoti biezs.
  • Page 45 Zivju marķēšana un ēsmas izsekošana Zemledus makšķerēšanas displejs lietotnē Deeper sniedz jums vairākus veidus, kā atrast zivis, izsekot jūsu vilinājumam un redzēt, kā zivis reaģē uz jūsu darbībām. Kreisajā pusē ir tradicionālais apļveida zibspuldzes displejs, vidus daļā labajā pusē ir sonāra displejs, bet labajā malā tālajā pusē ir vertikālā zibspuldze.
  • Page 46 Deeper.Cenšaties ieturēt pēc iespējas lielāku distanci no blakus esošiem sonāriem.   Casting and scanning Cast your Deeper CHIRP+ to the spot you want to scan (up to 100 m / 330 ft away) and reel it back in. As you...
  • Page 47   ⓘ W hen you cast and reel in your Deeper sonar, keep your smartphone/tablet in a position where it can easily pick up the signal from your sonar. If your smartphone / tablet is on the ground or in your pocket, the connection may be unstable.
  • Page 48 Once they are synced, you can access them on Lakebook™. To check if a fishing session has been synced, go to History in the Deeper App. Here you will find a record of all your fishing sessions with your Deeper.

  • Page 49: Sonar Settings

    Sonar settings can be accessed by clicking the gear icon on the top right corner. This will open a menu with all available settings for your model of Deeper sonar. You can close the menu at any time by sliding it to the right.
  • Page 50 We recommend starting from 100% sensitivity and then gradually decreasing sensitivity until you get the best results. This setting is not available for Deeper START Show fish icons – turn on/off special algorithms that interpret fishes and mark them with fish symbols on the screen.
  • Page 51 The Night Fishing feature should be turned on when fishing at night or in low light conditions. With the Deeper START it can be activated immediately, whereas with the Deeper PRO, PRO+ and 3.0 models you will need to replace the standard cover with a Deeper Night Fishing...
  • Page 52   Cast your Deeper PRO or PRO+ to the spot you want to scan (up to 100 m / 330 ft away) and reel it back in. As you slowly reel back, you will see underwater scans shown on your smartphone or tablet.
  • Page 53 Deeper Sonar is obstructed by something. Casting and scanning Cast your Deeper START to the spot you want to scan and reel it back in. As you reel back, look at the underwater...
  • Page 54  ⓘ When you cast and reel in your Deeper START, keep your smartphone/tablet in a position where it can easily pick up the signal from your fishfinder. If your smartphone / tablet is on the ground or in your pocket, the connection may be unstable.
  • Page 55 Once you are connected to your Deeper sonar, the Connection button will change to Start/Pause button. Press Start to beging your scanning session. If you click the Pause button, your scanning will be paused and the Deeper sonar will go into a Power save mode: Once in Power save mode, Wi-Fi connection with your Deeper is still active, but the sonar will not record any data, thus preserving the battery.
  • Page 56 Interneta vai mobilā tīkla signāls nav nepieciešams. Lūdzu, ņemiet vērā, ka maksimālo savienojuma diapazonu 100 m / 330 pēdas PRO / PRO + / CHIRP +, 50 m / 165 pēdas, START 40 m / 130 pēdas Deeper 3.0 var sasniegt tikai perfektos apstākļos.
  • Page 57 Mount your Deeper Sonar to your Flexible Arm Mount: -   If you are using a Deeper Flexible Arm, screw your Deeper sonar onto the Flexible Arm Mount using the top attachment point. Then attach the flex arm to your vessel using the crab clamp – for optimal security, clamp to a...
  • Page 58 -  If you are using a Deeper Flexible Arm 2.0, first place the plastic node of the flexible arm into the bottom attachment point of your Deeper sonar, then firmly tighten the screw into the middle attachment point. Then attach the G-Clamp to any part of your boat which is 70mm / 2.7”...
  • Page 59           -   If you are using a Deeper Flexible Arm 2.0, first place the plastic node of the flexible arm into the bottom attachment point of your Deeper sonar, then firmly tighten the screw into the middle attachment point. Then attach the G-Clamp to any part of your boat which is 70mm / 2.7”...
  • Page 60 Maksimiziranje povezivosti Svi Deeper uređaji stvaraju svoj vlastiti Wi-Fi signal koji se koristi za slanje podataka sa sonara na vaš pametni telefon ili tablet. Nije potreban internet ili signal mobilne mreže. Imajte na umu da se domet veze od 100 m za PRO/PRO+/CHIRP+, 50 m za START, 40 m za Deeper 3.0 može postići samo u idealnim uvjetima.
  • Page 61 Kako da uređaj pravilno pluta Wi-Fi signali ne putuju kroz vodu. To znači da ako je uređaj Deeper potopljen ili visi iznad vode, signal neće moći doprijeti do telefona ili tableta.

  • Page 62: Other Settings

    Other settings You can access other settings of the Deeper app by clicking on the menu icon on the top left corner: History - History stores all your recorded scans. It can store an unlimited amount of data. Every recording can be scrolled through from beginning to end.

  • Page 63: Firmware Updates

    Iebuvēts GPS (Deeper PRO+/CHIRP+) Deeper PRO + / CHIRP + ir iebūvēts GPS uztvērējs. Tas nozīmē, ka šiem modeļiem nav jāatrodas tajā pašā vietā, kur viedtālrunim, lai izveidotu kartes, tāpēc jūs varat izveidot karti, izmetot to.
  • Page 64   ⓘ W hen trolling your Deeper sonar, keep your smartphone/tablet in a position where it can easily pick up the signal from your sonar. If your smartphone / tablet is on the floor of your boat or in your pocket, the connection may be unstable.
  • Page 65 We recommended speed limit of the boat is up to 5 km/h (2.7 knots).   ⓘ When trolling your Deeper sonar, keep your smartphone/tablet in a position where it can easily pick up the signal from your sonar. If your smartphone / tablet is on the floor of your boat or in your pocket, the connection may be...
  • Page 66 Ensure your Deeper Sonar is in the center of the ice hole so the sonar readings don’t catch the ice. There is no need to attach your Deeper Sonar to a line, but for convenience or extra peace of mind you can add an attachment bolt to the top attachment point and tie a line to it if you like.
  • Page 67 Deeper, and you can still easily mark fish and see your jig. If you wish to reduce this sonar noise, widen the ice holes you are fishing and position your Deeper directly in the center of the ice hole. Furthermore, it is important to always use the Ice Fishing Mode on the Deeper App.

  • Page 68: Battery And Charging

    Ensure your Deeper Sonar is in the center of the ice hole so the sonar readings don’t catch the ice. There is no need to attach your Deeper Sonar to a line, but for convenience or extra peace of mind you can add an attachment bolt to the top attachment point and tie a line to it if you like.
  • Page 69 Visus Deeper sonārus darbina ar li-poli akumulatoru, un šo akumulatoru regulāra uzlāde pagarinās to kalpošanas laiku. Mēs iesakām uzlādēt PRO, PRO +, CHIRP + un START vismaz reizi 6 mēnešos. Deeper 3.0 jāuzlādē ik pēc 2 mēnešiem, pat ja jūs to nelietojat.
  • Page 70 Deeper PRO+ has established a strong GPS connection. Only when the satellite icon turns green can you start creating bathymetric maps. The time it takes for the unit to establish a strong GPS fix depends on the number of obstacles nearby as well as the weather conditions.

  • Page 71: Troubleshooting

    Each Deeper Sonar device has its own unique serial number. Serial number serves as your sonar's personal identification code, and is used to determine warranty activation time, special promotions available for your device and many other important details. It's also handy to know the serial number if your Deeper needs servicing or in case it was lost.
  • Page 72   Deeper START...
  • Page 73   Deeper 3.0...
