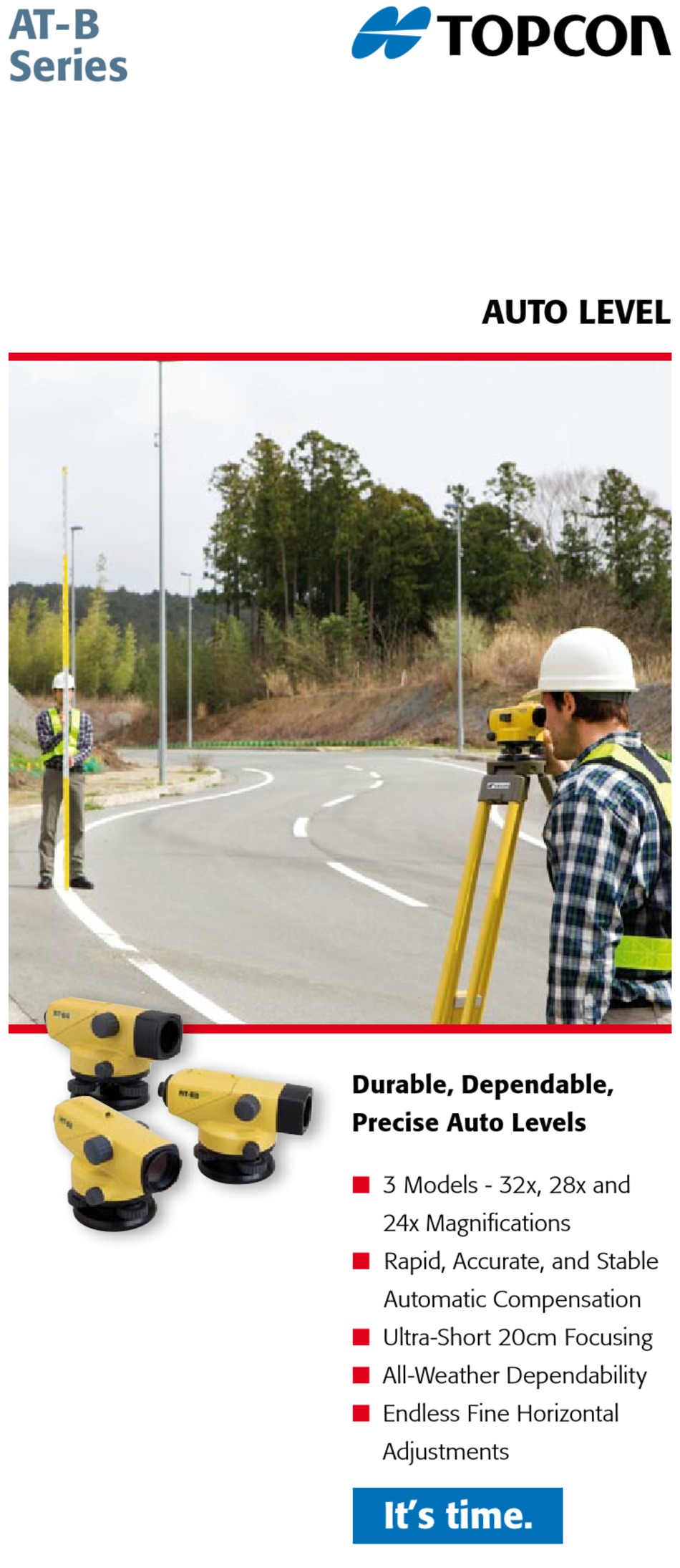

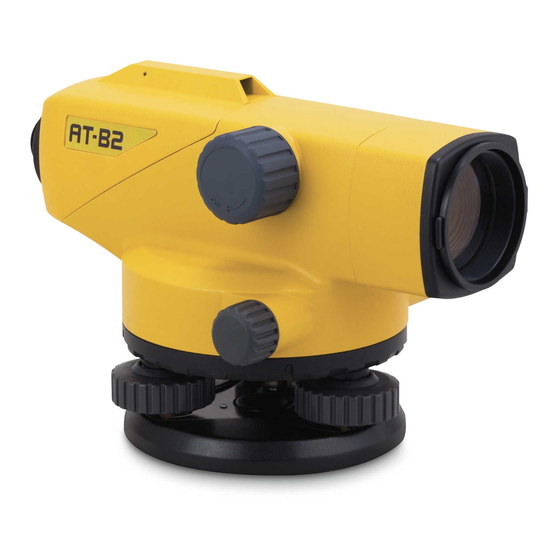

- Page 1 AT-B Series AUTO LEVEL Durable, Dependable, Precise Auto Levels 3 Models - 32x, 28x and 24x Magnifications Rapid, Accurate, and Stable Automatic Compensation Ultra-Short 20cm Focusing All-Weather Dependability Endless Fine Horizontal Adjustments...
- Page 2 AT-B: For all levelling applications 20 cm - Ultra-Short Minimum Focus The AT-B series can focus on objects at 20 cm in front of the telescope. This feature dramatically facilitates the works in confined spaces. Horizontal Circle for Angle Measurement Horizontal angles can be directly read in 1°...
- Page 3 All-Weather Dependability With the IPx6 rating, the instrument is protected against powerful water jets from all directions, meaning the AT-B series withstands a sudden shower or torrential rainfall. The advanced protection design also deters clouding or condensation inside the telescope.
- Page 4 Optional Accessories Diagonal Eyepiece DE16 (AT-B2) 40x Eyepiece EL5 (AT-B2) Diagonal Eyepiece DE22 (AT-B3/B4) Standard Package AT-B Level Plumb bob Hex wrench Adjusting pins Vinyl cover Cleaning cloth Lens cap User manual Hard carrying case...
- Page 5 Water Resistance IPX6 (IEC 60529:2001) Operating Temperature –20ºC to +50ºC Size (W x L x H) 130 mm x 215 mm x 140 mm H: 135 mm Weight 1.85 kg 1.7 kg * all technical changes are reserved by TOPCON, 07/2010...
- Page 6 The Leader in Positioning Technology ... Topcon is the worldwide leading developer and manufacturer of precision positioning equipment and offers the widest selection of innovative precision GPS systems, laser, optical surveying, machine control, GIS and agriculture products. www.topcon.eu Your local authorised Topcon distributor is:...
