Summary of Contents for Vecom UE-1000

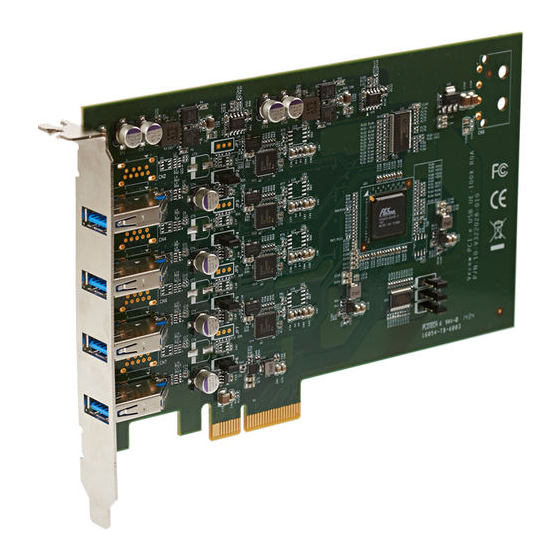

- Page 1 USER USER UE-1000 Manual Manual PCI Express x4, 8 Ports/ 4 Ports USB 3.0 Expansion Card 1.1.0 Edition 20200506...
- Page 2 Record of Revision Version Date Page Description Remark 01/20/2015 Preliminary Release 02/13/2015 Offical Release 05/06/2020 Update...
- Page 3 Disclaimer This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. Vecow Co., Ltd. is under no legal commitment to the details of this document. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of this document, the products, or any third party infringements, which may result from such use.
- Page 4 Order Information Part Number Description UE-1004 PCI Express x4, 4 Ports USB 3.0 Expansion Card UE-1008 PCI Express x4, 8 Ports USB 3.0 Expansion Card...
-
Page 5: Table Of Contents
1.3.1 Specifications of Vecow UE-1004 1.3.2 Specifications of Vecow UE-1008 1.4 Mechanical Dimension 1.4.1 UE-1004 1.4.2 UE-1008 2 GETTING TO KNOW YOUR UE-1000 CHAPTER 2.1 Packing List 2.2 I/O and Indication 2.3 Jumper Setting for Current Limit 3 GETTING START CHAPTER 3.1 Installing UE-1004/ UE-1008... -
Page 6: General Introduction
GENERAL INTRODUCTION 1.1 Overview UE-1000 is a series of USB 3.0 expansion cards which is powered by independent USB 3.0 host chips. With the latest USB 3.0 technology, UE-1000 series USB 3.0 expansion card delivers 10-times data transfer rate, up to 5Gbps, to make performance driven plug-and-... -
Page 7: Product Specification
Operating 0°C to 70°C (32°F to 158°F) Temperature Storage -40°C to 85°C (-40°F to 185°F) Temperature Certifications FCC, CE, RoHS Compliance Mechanical Dimension (WxDxH) 168mm x 121mm x 21mm (6.6" x 4.8" x 0.8") ©Vecow UE-1000 User Manual GENERAL INTRODUCTION... -
Page 8: Mechanical Dimension
1.4 Mechanical Dimension 1.4.1 UE-1004 180.44 (7.1”) 21.1 (0.83”) 167.65 (6.6”) 9.5 (0.37”) 98.4 (3.87”) 19 (0.75”) 121 (4.76”) Unit: mm (inch) 1.4.2 UE-1008 180.44 (7.1”) 21.1 (0.83”) 167.65 (6.6”) 9.5 (0.37”) 98.4 (3.87”) 121 (4.76”) Unit: mm (inch) GENERAL INTRODUCTION... -
Page 9: Chapter 2 Getting To Know Your Ue-1000
Vecow Drivers & Utilities DVD 2.2 I/O and Indication 2.2.1 USB Connectors The UE-1000 comes with 8 USB 3.0. These USB 3.0 ports allow data transfers up to 5 Gbps. The controller supports SuperSpeed (SS), High-Speed (HS), Full-Speed (FS) and Low-Speed (LS) traffic on the bus. -
Page 10: Jumper Setting For Current Limit
2.3 Jumper Setting for Current Limit 2.3.1 Current limit jumpers User-configurable 900mA and 1500mA current limit. Jumper Pin 900 mA 1-2 (Default) 1500 mA GETTING TO KNOW YOUR UE-1000... - Page 11 (1-2) , A2=1 (2-3) , A2=0 (1-2) , A0=1 (2-3) , A0=0 Slave 7bit Slave 7bit Setting Setting address ID Address address ID Address 0x40 0x48 0x42 0x4A 0x44 0x4C 0x46 0x4E ©Vecow UE-1000 User Manual GETTING TO KNOW YOUR UE-1000...
-
Page 12: Getting Start
GETTING START 3.1 Installing UE-1004/ UE-1008 Step 1. Insert UE-1004/ UE-1008 golden finger and PCI bracket into PCIe socket carefully. Step 2. Make sure golden finger and PCI bracket was inserted smoothly. GETTING START... - Page 13 Step 3. Make sure the bracket aligns screw hole. Step 4. Fasten the M3 screw. ©Vecow UE-1000 User Manual GETTING START...
-
Page 14: Driver Installation And Setting
DRIVER INSTALLATION AND SETTING 4.1 Driver Installation System OS: Windows You can install the Windows driver for Vecow UE-1004 / UE-1008 manually by following the steps listed below : Step 1. Execute RENESAS-USB3-Host-Driver-30230-setup.exe and then go “Next” step. DRIVER INSTALLATION AND SETTING... - Page 15 Step 2. Accept the terms of the license agreement and then go “Next” step. Step 3. Click “Install” to begin installation. DRIVER INSTALLATION AND SETTING ©Vecow UE-1000 User Manual...
- Page 16 Step 4. Waiting for driver installation. Step 5. Click into “Control Panel” “Device Manager”. Check Vecow UE-1004/UE-1008 driver setup success. DRIVER INSTALLATION AND SETTING...
-
Page 17: Usb Power On/Off Control
4.2 USB Power On/Off Control UE-1000 series include USB port power ON/OFF function and help to maintain on field operation. 4.2.1 Control by Vecow Hardware Monitor UI Step 1. Press “Initial” button to detect UE-1000 series card. Step1 DRIVER INSTALLATION AND SETTING... - Page 18 Step 2. Based on the slave address to select which card you want to control. Step 3. Choose 4 port USB (UE-1004) or 8 port USB (UE-1008) card. Step 4. Set USB per port ON/OFF. Step2 Step3 Step4 4.2.2 Control by Vecow console mode tool Step 1.
- Page 19 TRUE (1) : Success. FALSE (0) : Fail (Initial error, or out of range error, or hardware problem). Note : If you require the API to develop software, feel free to contact the Vecow FAE. DRIVER INSTALLATION AND SETTING ©Vecow UE-1000 User Manual...
