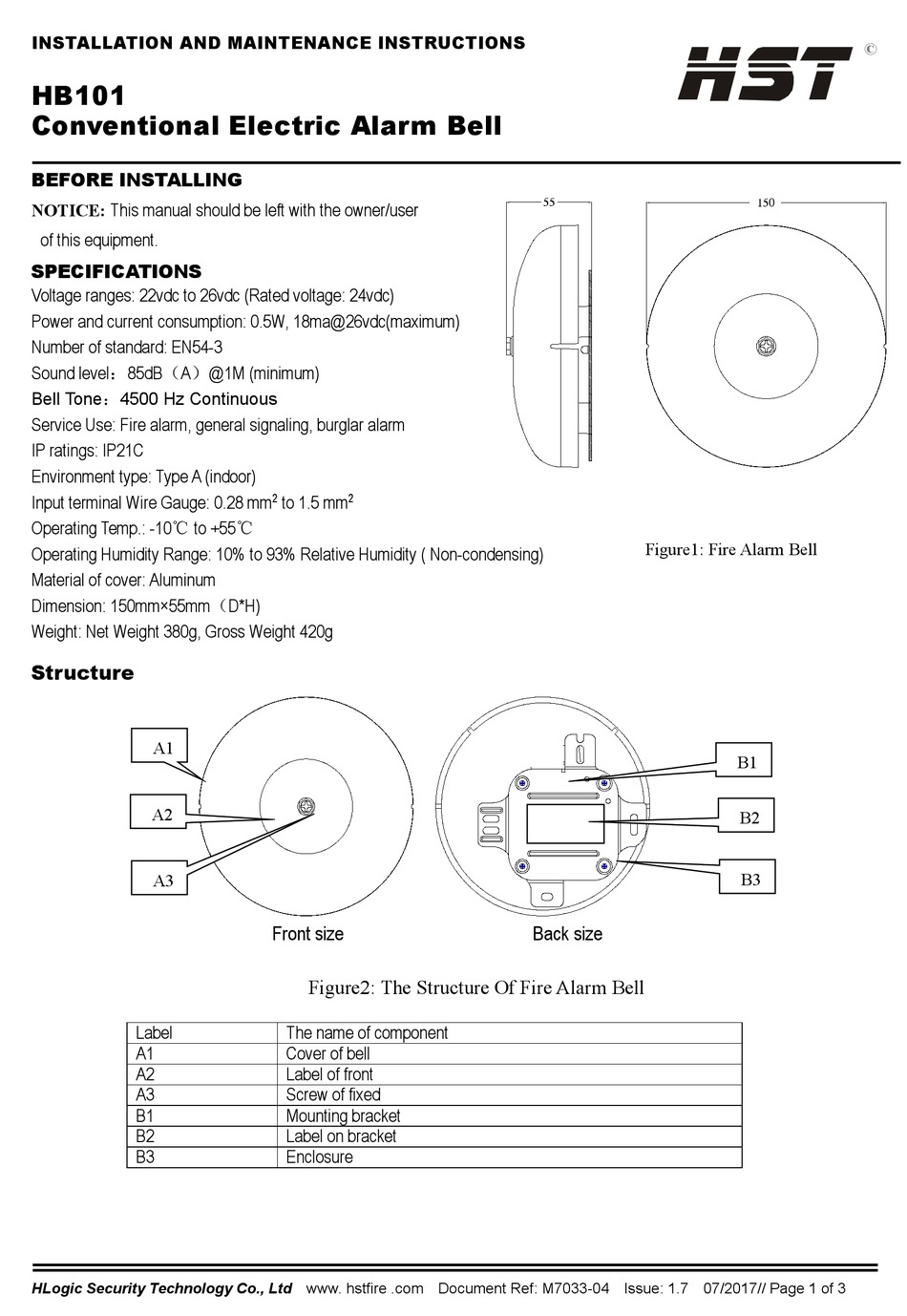

INSTALLATION AND MAINTENANCE INSTRUCTIONS
HB101
Conventional Electric Alarm Bell
BEFORE INSTALLING
This manual should be left with the owner/user
NOTICE:
of this equipment.
SPECIFICATIONS
Voltage ranges: 22vdc to 26vdc (Rated voltage: 24vdc)
Power and current consumption: 0.5W, 18ma@26vdc(maximum)
Number of standard: EN54-3
Sound level：85dB（A）@1M (minimum)
Bell Tone：4500 Hz Continuous
Service Use: Fire alarm, general signaling, burglar alarm
IP ratings: IP21C
Environment type: Type A (indoor)
Input terminal Wire Gauge: 0.28 mm
Operating Temp.: -10℃ to +55℃
Operating Humidity Range: 10% to 93% Relative Humidity ( Non-condensing)
Material of cover: Aluminum
Dimension: 150mm×55mm（D*H)
Weight: Net Weight 380g, Gross Weight 420g
Structure
A1
A2
A3
Label
A1
A2
A3
B1
B2
B3
HLogic Security Technology Co., Ltd www. hstfire .com Document Ref: M7033-04 Issue: 1.7 07/2017// Page 1 of 3
to 1.5 mm
2
2
Front size
Figure2: The Structure Of Fire Alarm Bell
The name of component
Cover of bell
Label of front
Screw of fixed
Mounting bracket
Label on bracket
Enclosure

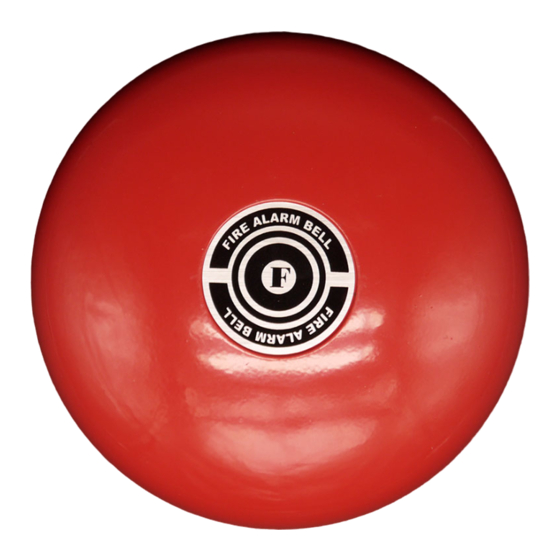

Figure1: Fire Alarm Bell
Back size
©
B1
B2
B3
Advertisement
Table of Contents
Related Manuals for HST HB101
Summary of Contents for HST HB101
- Page 1 INSTALLATION AND MAINTENANCE INSTRUCTIONS © HB101 Conventional Electric Alarm Bell BEFORE INSTALLING This manual should be left with the owner/user NOTICE: of this equipment. SPECIFICATIONS Voltage ranges: 22vdc to 26vdc (Rated voltage: 24vdc) Power and current consumption: 0.5W, 18ma@26vdc(maximum) Number of standard: EN54-3 Sound level：85dB（A）@1M (minimum)
- Page 2 Terminal designations 4 pin terminal in the enclosure to access two pairs of cables. Figure3: Terminal General Description for wall applications, indoors. The bell remains the most commonly used alarm for fire evacuation system, They are designed to be used in 24 volt DC systems. Wiring The system designer must make sure that the total current drawn by the devices on the loop does not exceed the current capability of the panel supply, and that the last device on the circuit is operated within its rated voltage.
- Page 3 After phoning HST technical support number for a Return Authorization number, send defective units postage prepaid to HST local representative office. Please include a note describing the malfunction and suspected cause of failure. The Company shall not be obligated to repair or replace units which are found to be defective because of damage, unreasonable use, modifications, or alterations occurring after the date of manufacture.
