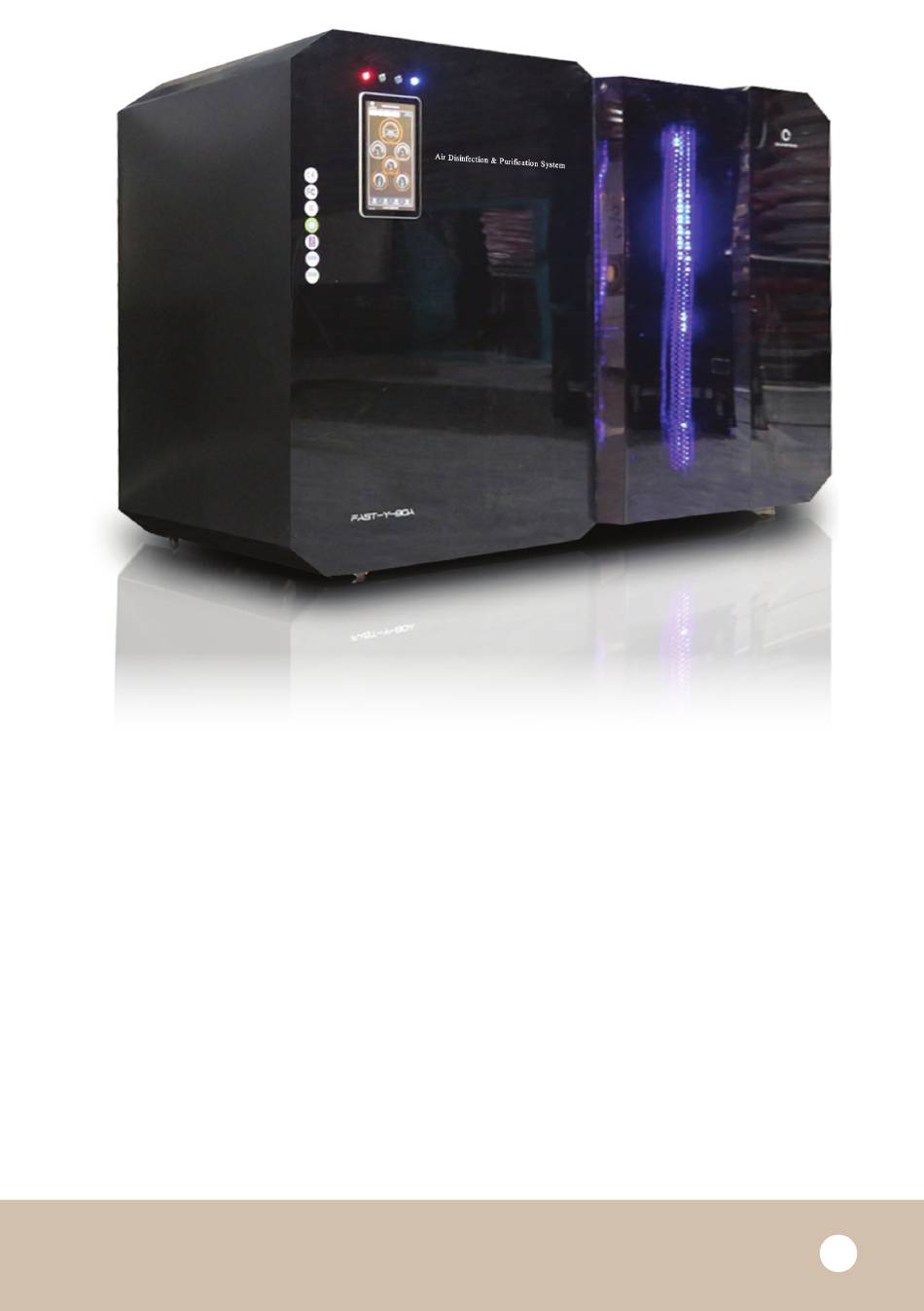

- Page 1 Air Disinfection & Purification Machine (FAST-Y-90A) Installation & Operation Manual Triple disinfection & purification technology Dynamic tracking & Remote intelligent control Remote intelligent control...
-
Page 2: Table Of Contents
Air Disinfection & Purification Machine (FAST-Y-90A) CONTENT Tips 4 About User Manual 4 Updates after Finalization 4 Additional Information 4 FAST-Y-90A Air Disinfection & Purification Machine 4 Timeliness of User Manual 5 Self-security 5 Maintenance and Repair 5 Parts and Accessories ... - Page 3 Air Disinfection & Purification Machine (FAST-Y-90A) Technical Parameters 25 Safety Instruction 26 External Power 26 Usage Position 26 Routine Maintenance and Inspection 26 Pre-use Inspection 26 After-sales Service 26 Technical Fault 26 System Upgrade 26...
-
Page 4: Tips
Air Disinfection & Purification Machine (FAST-Y-90A) User Manual Congratulations on choosing FAST series air disinfection purifier. The more fa- miliar you are with your air purifier, the more comfortable you will find it in use; So, we ask you: Please read this user manual carefully before starting your new FAST air purifier. -
Page 5: Timeliness Of User Manual
Parts and Accessories SHANGFENG is not responsible for any parts and accessories without its approval. For any product that is not SHANGFENG’s original factory or is not approved by SHANGFENG, it cannot be determined whether it can be used on the SHANGFENG air disinfection purifier without safety risks, even if an official body gives its approval. -
Page 6: Summary
Air Disinfection & Purification Machine (FAST-Y-90A) Summary Product Overview FAST series Air Disinfection & Purification Machine is composed of air intake system, purification system, disinfection system, exhaust system, deodoriza- tion system, noise reduction system, intelligent control system and big data platform. - Page 7 Air Disinfection & Purification Machine (FAST-Y-90A) Figure-2 Figure-3...
-
Page 8: Operation
Air Disinfection & Purification Machine (FAST-Y-90A) Figure-4 Operation Power-on Insert the power plug (three-phase ground) of the purifier into an external in- dependent socket (it should be reliably grounded).After the power is switched on, the 4-1 red power indicator on the purifier lights up, indicating that the power has been switched on. -
Page 9: Brief Introduction Of Touch Screen Functions
Air Disinfection & Purification Machine (FAST-Y-90A) It takes about 10 seconds for the touch screen to start up for the first time. Shutdown: please press the 4-4 switch button on the purifier. The 4-2 green running indicator is off and the touch screen is off, indicating that the device has been shut down. - Page 10 Air Disinfection & Purification Machine (FAST-Y-90A) Maintenance Tips: When the unit runs long enough, the unit maintenance indicator 5-3 will light up, indicating that the unit needs maintenance. Help Tips: When users have questions about the using, operation and precautions of the unit, they can touch the 5-4 help button for help query.
- Page 11 Air Disinfection & Purification Machine (FAST-Y-90A) PM10: User can view the PM10 value in the current running environment through the 5-7 meter display TVOC: Users can view TVOC values in the current operating environment through the 5-8 meter display. Temperature: Users can view the current operating environment temperature values through the 5-9 meter display.
- Page 12 Air Disinfection & Purification Machine (FAST-Y-90A) Air purification status: Touch the 5-12 Air Purification icon to query the daily and monthly purification time, cumulative purification time and volume. Figure-8...
- Page 13 Air Disinfection & Purification Machine (FAST-Y-90A) Intelligent Control Touch 5-13 Intelligent Control icon to set the following functions: Figure-9...
- Page 14 Air Disinfection & Purification Machine (FAST-Y-90A) Running Lock on/off: Touch the 5-13 intelligent control icon on the touch screen and touch the running lock button to yellow to open the operation lock; Touch the running lock button to gray and the running lock is closed.
- Page 15 Air Disinfection & Purification Machine (FAST-Y-90A) Figure-10...
- Page 16 Air Disinfection & Purification Machine (FAST-Y-90A) Fault Record: If there is a fault during running time, the 4-3 yellow indicator will light up, and the 5-2 fault indicator light will flash, indicating that there is a fault needs to debug. Touch this button to view the fault record;...
- Page 17 Air Disinfection & Purification Machine (FAST-Y-90A) About Device: Touch this button to view information related to the device. Figure-12...
- Page 18 Air Disinfection & Purification Machine (FAST-Y-90A) System Upgrade: When the device is connected to the Internet, touch this button to upgrade the system. Figure-13...
- Page 19 Air Disinfection & Purification Machine (FAST-Y-90A) Reboot Device: Touch this button and confirm the dialogue to restart the device. Figure-14...
-
Page 20: Maintenance
Air Disinfection & Purification Machine (FAST-Y-90A) Maintenance In order to ensure the normal operation of the Air Disinfection & Purification Machine, users need to carry out daily maintenance of the unit. Maintenance Tips When the purifier reaches the condition of daily maintenance, the 5-3 main- tenance indicator above the touch screen lights up, indicating that the unit needs maintenance. -
Page 21: Pre-Maintenance Work
Air Disinfection & Purification Machine (FAST-Y-90A) Pre-maintenance Work Before the daily maintenance of the purifier, it is required to turn on the 5-13 intelligent control icon and close all air purification modules to ensure that the air purification system is closed. Open the air disinfection module and keep the air disinfection continuously for more than 2 hours Disconnect the plug from the external power supply. - Page 22 Air Disinfection & Purification Machine (FAST-Y-90A) Figure-17 As is shown in Figure-18, draw out the purification module, disinfection mod- ule and deodorization module respectively Figure-18...
-
Page 23: Maintenance Of Purification System
Air Disinfection & Purification Machine (FAST-Y-90A) Maintenance of Purification System Draw out the purification module, place it in the cleaning area, clean the dust on the module with air pump and brush, or put it in a special cleaning pool, and rinse it with warm water mixed with detergent (daily use detergent) at 30°C ~ 40°C.The purification system should be maintained once the unit has... -
Page 24: After-Maintenance Work
Air Disinfection & Purification Machine (FAST-Y-90A) After-maintenance Work After the maintenance, install the purification, disinfection and deodorization modules in sequence to ensure the installation is in place; Install the inner compartment sealing plate and lock it with the special key;... - Page 25 Air Disinfection & Purification Machine (FAST-Y-90A) Technical Parameters Parameters FAST-Y-90A-M FAST-Y-90A-L External 2670(W)×1695(H)×1055(D) 2045(W)×1695(H)×1370(D) dimension (mm) ≤ 550 ≤750 Net weight (kg) Voltage(V) / AC220/50 AC220/380/50 Frequency (Hz) ≤2.8 ≤5.5 Power (KW) Touch Screen 15.6 15.6 (inch) Total fan ventilation...
- Page 26 Air Disinfection & Purification Machine (FAST-Y-90A) Safety Instruction External Power The external power supply must meet the technical parameters of the unit and must be connected by a professional electrician. After the unit is connected to the external power supply, it should run for at least 2 hours. It can be normally...
