MiFleet 3-Wire Installation Manual

car, and Ignition ON when the vehicle is powered ON. Good sources are
(Ignition Switch in fuse box, fuel pump).
4. Locate an installation location for placement of the MiFleet hardware.
Place the tracking device in line of sight'. Do not place under metal, or
adhere to the sub-frame chassis; this will cause interference. DEVICE
BARCODE MUST FACE THE SKY. For large commercial vehicles and trucks we
recommend fixing the device to the dashboard or glovebox. For a smaller
compact vehicle we, recommend the same location as well as against the
dashboard on the back window.(Fig.3)
*To prevent the unit from moving or falling it is recommended to use a zip-tie to securely
fasten the device to the vehicle sub frame this is important so the Mi Fleet Device can accu-
rately gauge and report Acceleration based events.
5. To complete installation, all vehicles should validate the Ignition ON/OFF
functionality on the MiFleet software platform.
6. If the Platform does not report/show ignition changes please have the
installer verify the wire connections and/or proceed to call MiFleet support
for questions and troubleshooting steps.
LED Type Behavior Normal? Status
Flashing Yes Device is trying to connect
Network
Solid Yes GPS signal acquired
Solid Yes Device is receiving GPS signals
GPS Flashing Yes Device is waiting GPS signal lock
Off No Device is not receiving power
* The SM & LG Fleet Device has two (2) status LEDs. Confirm the status using the
following blinking patterns:
Fig. 4
YELLOW is recomended installation
zones. Make sure the barcode of your
MiFleet hardware is facing the sky.
Fig. 5

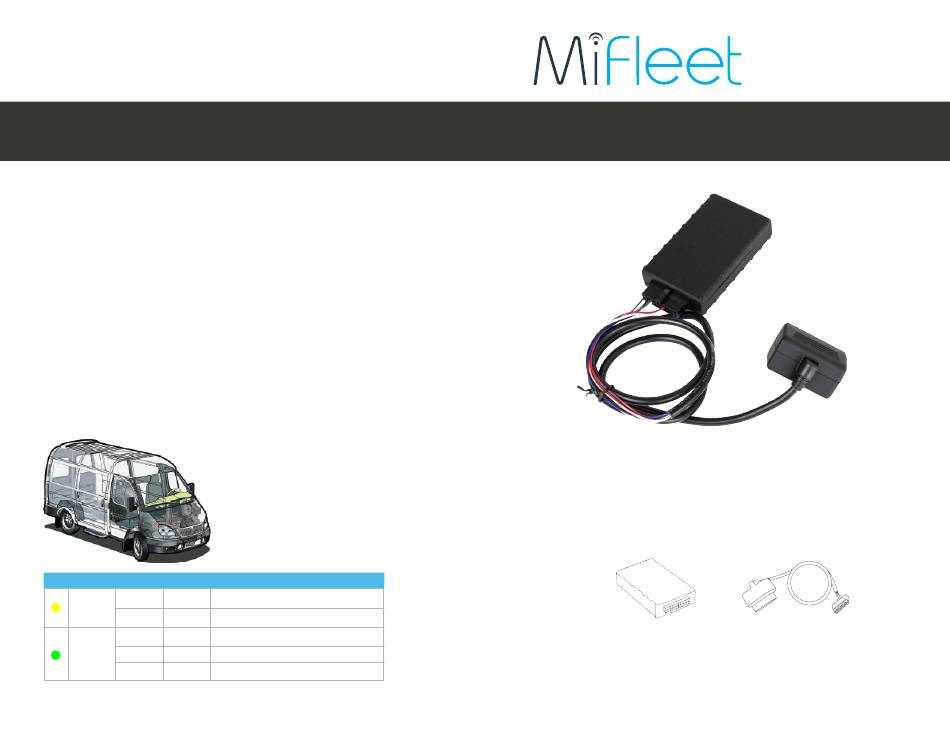

Installation Guide
3-Wire & VPOD
What's Included:
