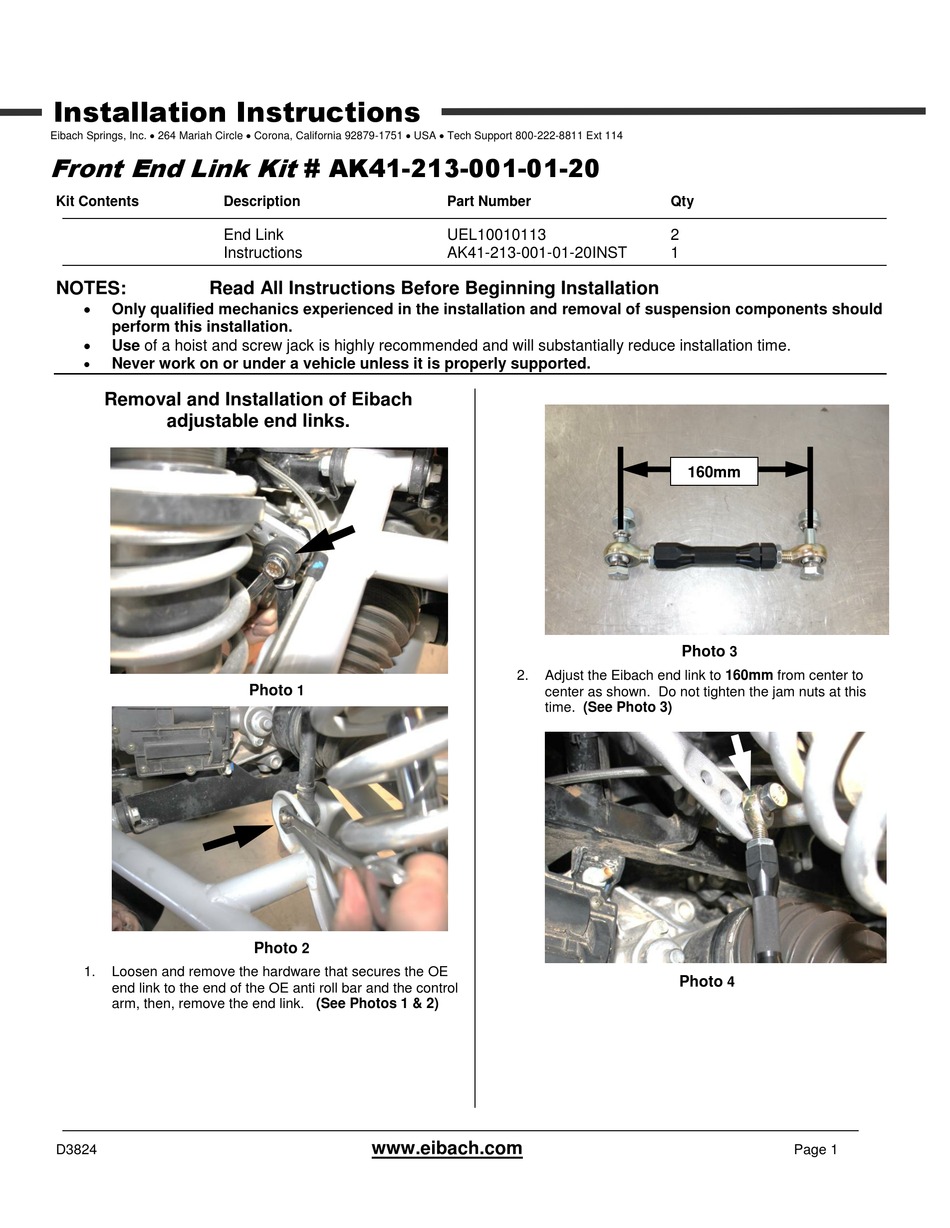

Installation Instructions
Eibach Springs, Inc. 264 Mariah Circle Corona, California 92879-1751 USA Tech Support 800-222-8811 Ext 114
Front End Link Kit
Kit Contents
Description

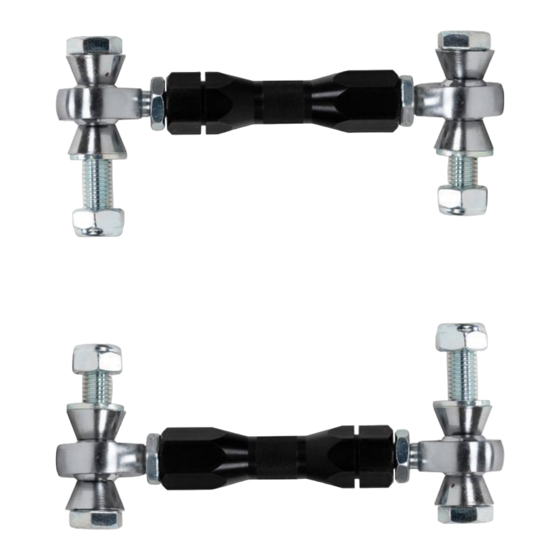

End Link
Instructions
NOTES:
Read All Instructions Before Beginning Installation
Only qualified mechanics experienced in the installation and removal of suspension components should
perform this installation.
Use of a hoist and screw jack is highly recommended and will substantially reduce installation time.
Never work on or under a vehicle unless it is properly supported.
Removal and Installation of Eibach
adjustable end links.
1.
Loosen and remove the hardware that secures the OE
end link to the end of the OE anti roll bar and the control
arm, then, remove the end link. (See Photos 1 & 2)
D3824
# AK41-213-001-01-20
1
2
www.eibach.com
Part Number
UEL10010113
AK41-213-001-01-20INST
2.
Adjust the Eibach end link to 160mm from center to
center as shown. Do not tighten the jam nuts at this
time. (See Photo 3)
Qty
2
1
160mm
3
4
Page 1
Advertisement
Table of Contents
Summary of Contents for Eibach Springs AK41-213-001-01-20
- Page 1 Installation Instructions Eibach Springs, Inc. 264 Mariah Circle Corona, California 92879-1751 USA Tech Support 800-222-8811 Ext 114 Front End Link Kit # AK41-213-001-01-20 Kit Contents Description Part Number End Link UEL10010113 Instructions AK41-213-001-01-20INST NOTES: Read All Instructions Before Beginning Installation ...
- Page 2 Photo Install the link and secure it to the bar and the control arm with the provided hardware. (See Photos 4 & 5) Photo With the hardware properly secured and the ends properly orientated, tighten the jam nuts as shown. (See Photo 6) Repeat this procedure on the opposite side.
