- Page 1 Weather Monitoring Unit - MCRP 054 Technical and Operating Documentation User Instruction Manual MERCOR SA Ul. Grzegorza z Sanoka 2 80-408 Gdańsk tel. (+48) 058 341 42 45, fax (+48) 058 341 39 85 Gdańsk, ver. 1.7 - 2007.04.26 10:37:00...
-
Page 2: Table Of Contents
Please, read these instructions carefully and follow the guidelines. This will ensure smooth and reliable operation of the device. MERCOR SA reserves the right to modify the product or the documentation without notice. We wish to ensure your full satisfaction with our products and we will be glad to provide professional service and assistance to you, if necessary. -
Page 3: Intruduction
2. Intruduction 1. The MCRP 054 weather monitoring unit is used to control the operation of actuators in the MCR-PROLIGHT and MCR PROLIGHT+ vents or in ventilation windows which should be closed in wind or rain. 2. To the weather monitoring unit smoke exhaust control units, ventilation control units or electromechanical actuators powered by 230 V or 24 V voltage. -
Page 4: About The Mcrp054 Weather Monitoring Unit

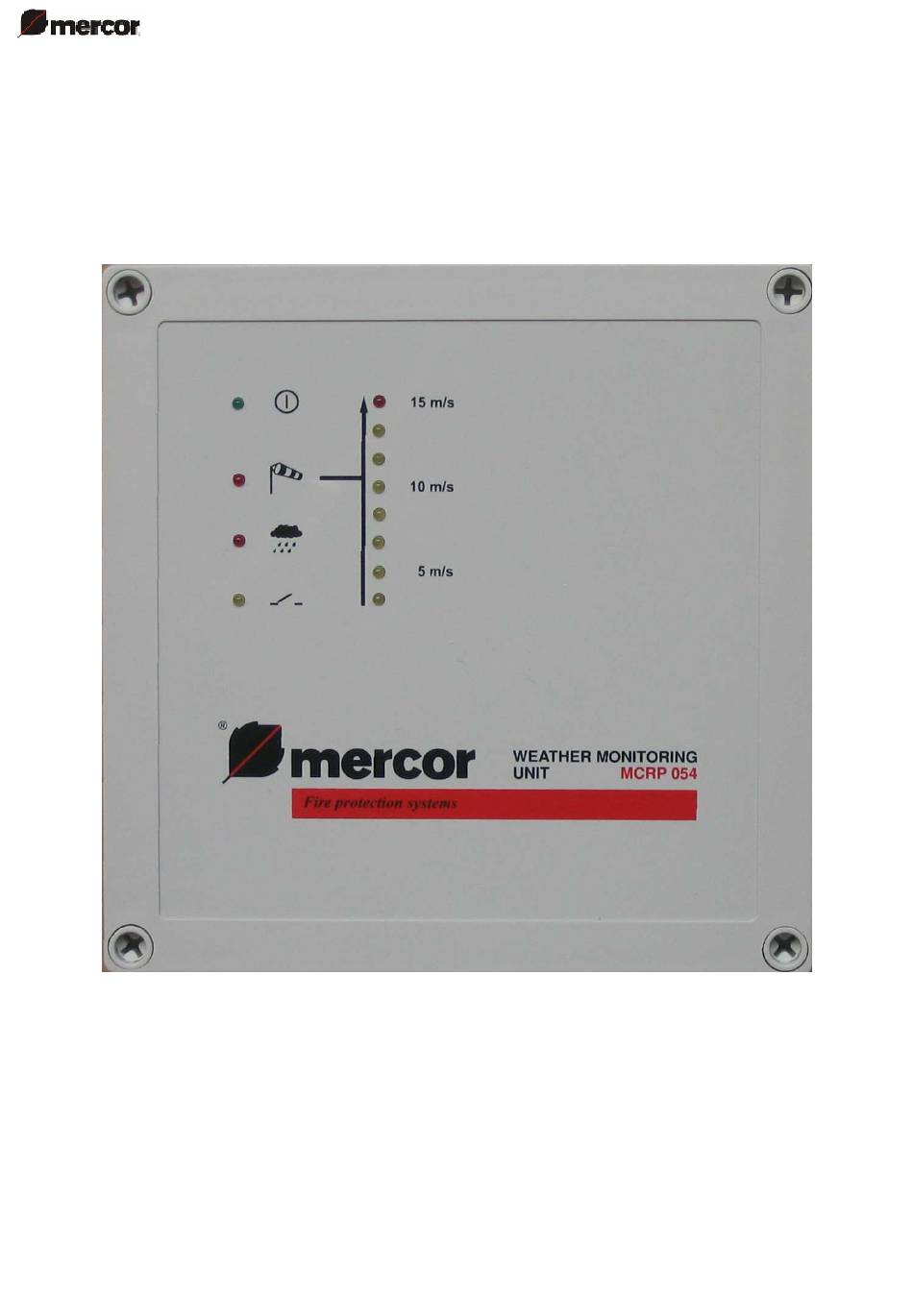

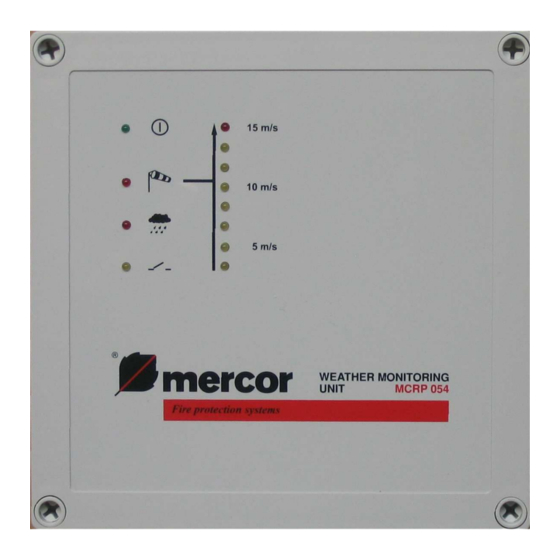

3. About the MCRP054 weather monitoring unit Fig. 1 Monitoring unit’s front panel. On the front panel, there are LEDs which indicate the status of the control center: # Description Color Function 1 POWER SUPPLY green indicates presence of power supply 2 WIND wind alarm... - Page 5 Fig. 2. View of the unit’s interior. At the left edge of the board, there’s a set of time coding jumpers H1 (5) used to code the desired time during which the alarm will remain on after the cause of the alarm (i.e. wind or rain) has ceased: Minimum alarm duration 4 minutes 6 minutes...
-
Page 6: Operation
ALARM - RAIN NO ALARM NO POWER SUPPLY MCRP 054 is a maintenance-free device. It requires uninterrupted 230 V mains power supply. Should there be power outage caused by mains failure, the unit will generate the vent closing signal on output terminals. -
Page 7: Warranty Terms And Conditions
MERCOR SA, the buyer shall bear the costs of eliminating the fault. 3. MERCOR SA reserves the right to extend the repair time in the case of complicated repairs or repairs which require a purchase of non-standard subassemblies [elements] or spare parts. -
Page 8: Assembly And Start Up
6. Assembly and start up Connection diagrams are show on pages 9 … 12. 1. Wind/rain sensor - 4 leads (YTKSY or YDY) from P6 … P8 terminals. 2. Vent opening sensor - 2 leads from P5 terminals. The contact is closed when the vents are open (optional feature). - Page 9 230 V, 50 Hz max 5 A vent open sensor output 1: MCR9705/MCR0204 wind/rain output 2 output 3 output 4 remote control module (option) Drawing 1. Connection for the MCRP 054 weather monitoring unit with a RS2-WM1 sensor . Page 9 of 12...
- Page 10 Drivers in Drivers in Drivers in Drivers in the group 1 the group 2 the group 3 the group 4 Drawing 2. Diagram for connection of 230 V~ ventilation actuators to the MCRP 054 weather monitoring unit. Page 10 of 12...
- Page 11 Electromagnets in the group 1 the group 2 the group 3 the group 4 Drawing 3. Diagram for connection of pneumatic ventilation boxes (LUK) with the EA/EZ (230 V~) option to the MCRP 054 weather monitoring unit. Page 11 of 12...
- Page 12 1 the group 2 the group 3 Electromagnets in the group 4 Drawing 4. Diagram for connection of pneumatic ventilation boxes (LUK) with the EZ (230 V~) option to the MCRP 054 weather monitoring unit. Page 12 of 12...
