The Bluetooth
word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks
by HomeSpot is under license.
Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other
countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the
United States and other countries.
TECHNICAL SPECIFICATIONS
Bluetooth
Operating Distance
Charging Input
Weight
Model
Bluetooth V4.2
A2DP
Typically 10m / 33ft
DC 5V/ 0.5A
26g / 0.92oz
BTADP-236-LL
Advertisement
Table of Contents
Related Manuals for HomeSpot BTADP-236-LL
Summary of Contents for HomeSpot BTADP-236-LL
- Page 1 The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by HomeSpot is under license. Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.

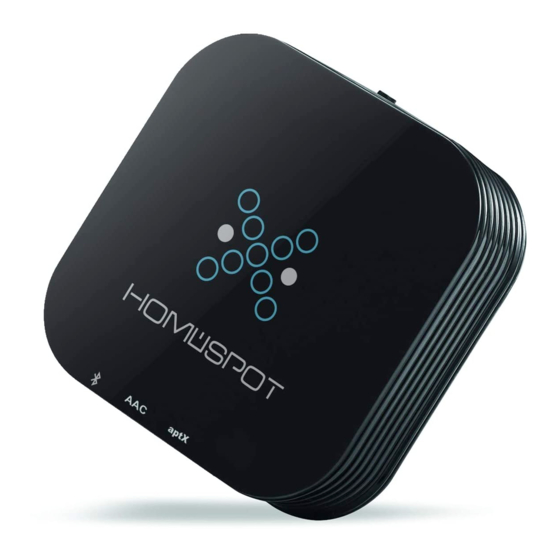

- Page 2 PACKAGE CONTENTS PRODUCT OVERVIEW 1) Pairing Indicator 5) 3.5mm Audio Output 2) aptX Indicator 6) micro-USB Charging Jack 3) aptX-LL Indicator 4) Pairing / MultiLink Button...
- Page 3 Qualcomm aptX Low Latency aptX and aptX Low Latency codec. AAC / SBC Mode (1) Pairing Indicator light on. aptX Mode (1) Pairing Indicator & (2) aptX Indicator lights on. aptX Low Latency Mode (1) Pairing Indicator & (3) aptX-LL Indicator lights on.
- Page 4 SETTING UP YOUR BLUETOOTH RECEIVER ANALOG IN Connect the Bluetooth Receiver to the audio input on your audio / video system. You can either connect with 3.5mm or RCA audio connection. Consult your audio / video system user manual for more information on how to accomplish this.
- Page 5 1. The Bluetooth Receiver will enter into Pairing Mode 2. The Indicators (1) & (2) will flash alternately. 3. Activate the Bluetooth function on your Bluetooth HomeSpot aptXLL XX installations. 4. Once paired and connected, 1 low tone will be played.
- Page 6 mobile devices or Bluetooth transmitter devices simultaneously. MULTIPOINT CONNECTIONS 2. Stop audio streaming. 3. Press and hold the Button (4) for 1 second to force the Bluetooth Receiver into Pairing Mode , you will hear 4. First device will be disconnected 5.
