Summary of Contents for SinoCon KonNad C2000-D2-DCTZ02

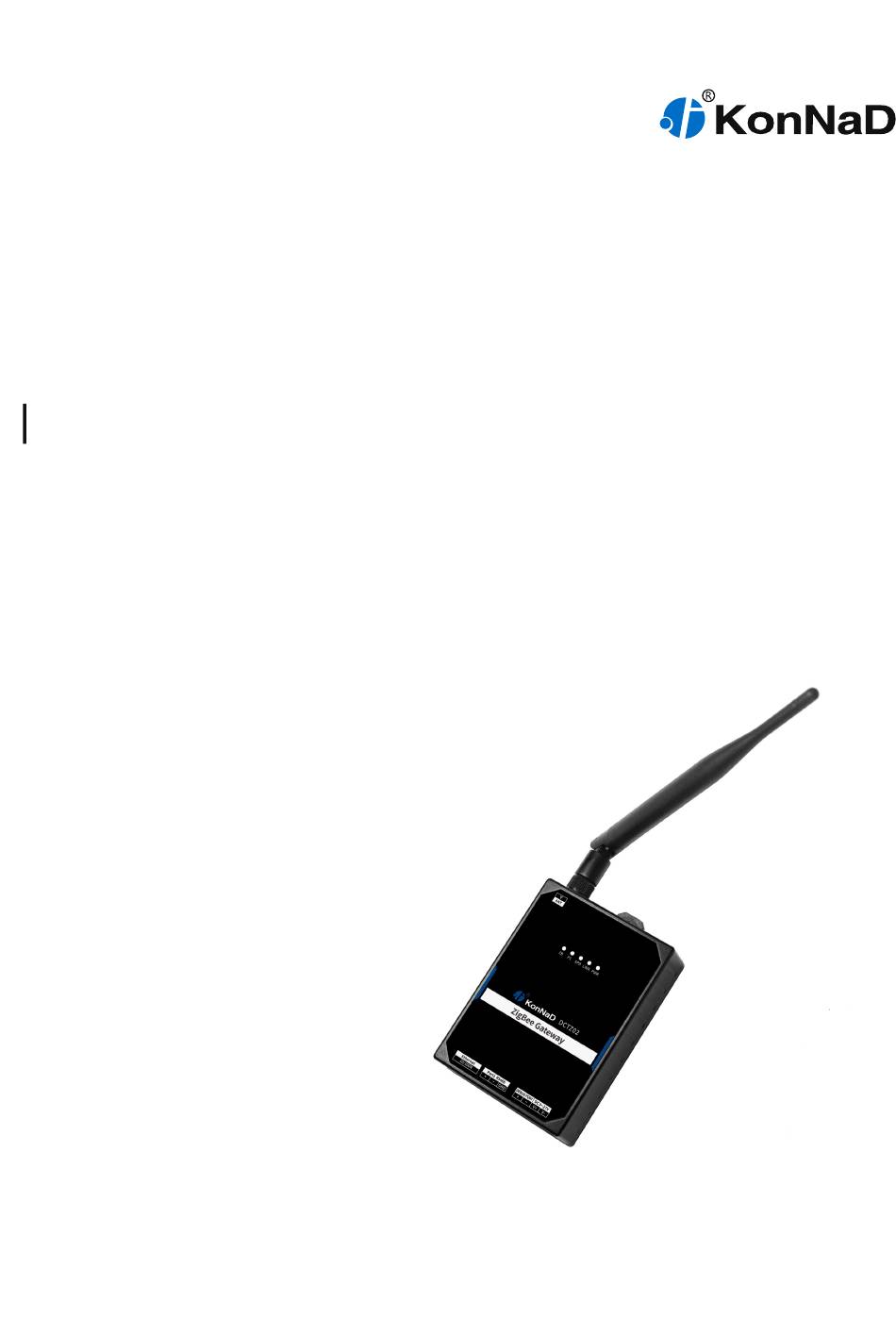

- Page 1 Last updated: 2019-12-26 C2000-D2-DCTZ02 User Manual ZigBee Gateway Sensor — ZigBee Gateway SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-D2-DCTZ02 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 11... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-D2-DCTZ02 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 5: Hardware Description
Support No. of Temperature & Humidity Power Power Connector Terminal block Input Voltage 9~27VDC Physical Characteristics Dimensions 75*105*30mm+171*37mm Installation Din-rail or wall Environmental Limits Operating Temperature -10℃ ~ 55℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 5 / 11... -
Page 6: Apprearance
C2000-D2-DCTZ02 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11... -
Page 7: Indicators
Flashing：Transmit or receive data Off：The network port is not plugged into the network cable Power Power indicator Steady on：Normal power supply Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC SinoCon Co., Ltd. www.sinoconsys.com 7 / 11... -
Page 8: Port Description
RS485+, RS485-, GND (downward) RVSP 3*0.5 Port DEBUG PORT +、- RS485 debug port positive, RS485 debug port RVSP 2*0.5 negative Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative SinoCon Co., Ltd. www.sinoconsys.com 8 / 11... -
Page 9: Product Dimensions
C2000-D2-DCTZ02 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... - Page 10 C2000-D2-DCTZ02 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11...
-
Page 11: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 11 / 11...
