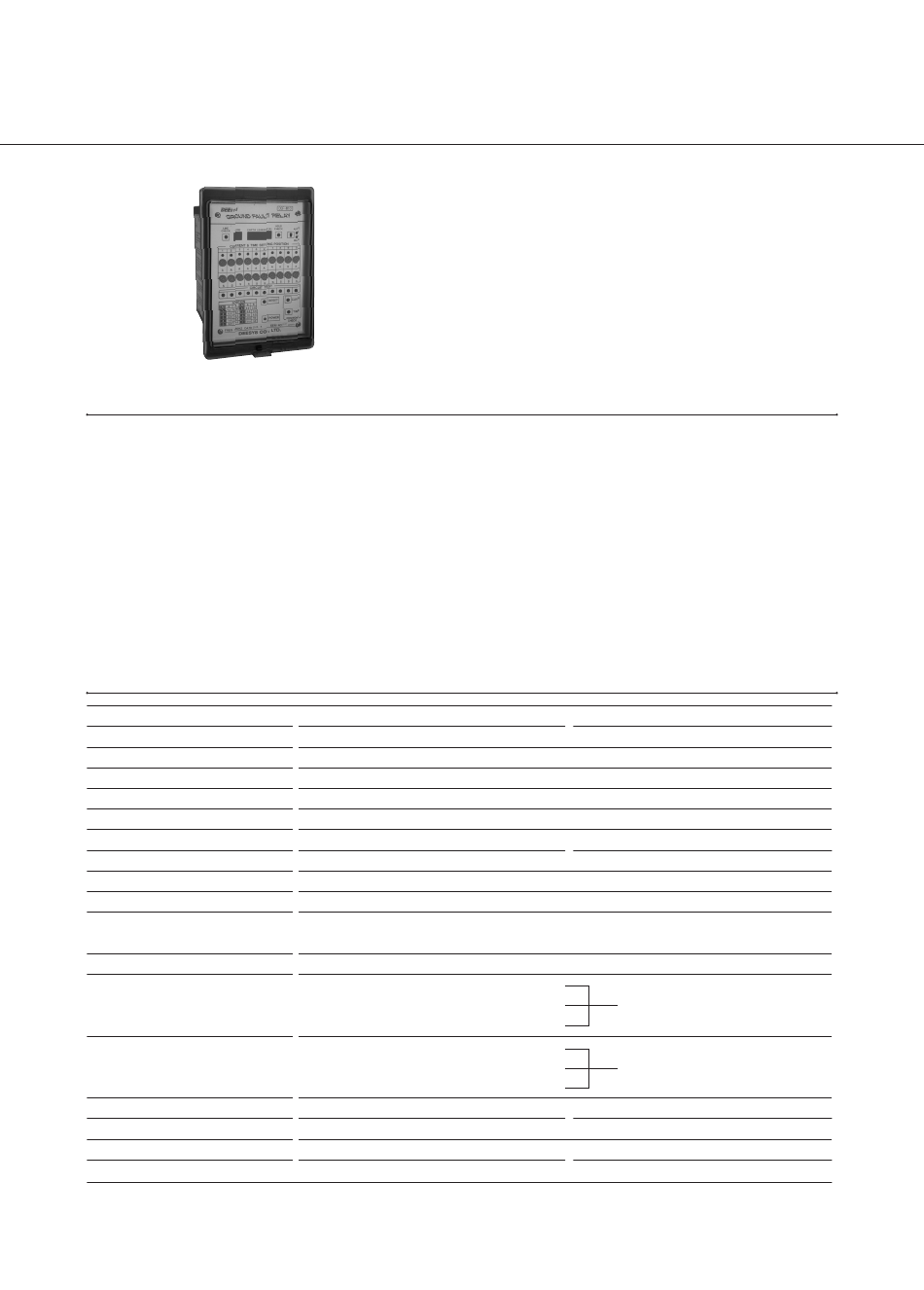

DEEsys DGF-M10 Manual

MULTI FUNCTION GROUND FAULT
RELAY [GFR]-5C, 10C

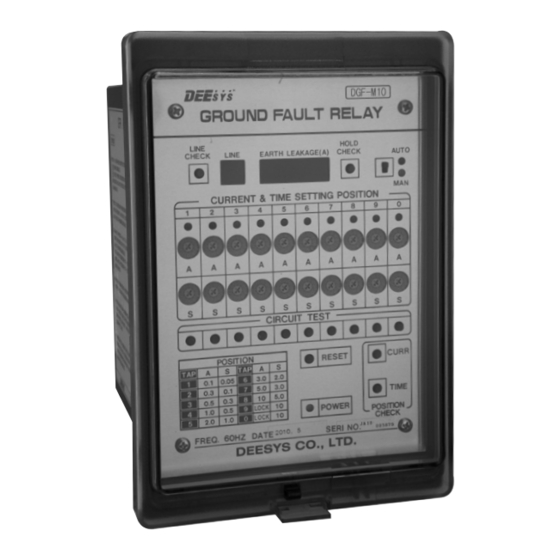

DGF-M10

Features

1. Multi-ground fault relay(GFR) is multi-functional and is able to detect multiple ground faults of monitoring circuit and is displayed
leakage in the circuit and fault current when earthing.
2. It is installed 8 bit MCU with A/D conventer and is configured to perform advanced functions for high relability.
3. It is a collective device that is intergrated many ground fault detector of conventional single unit.
4. It is capable to detect from minor grounding fault current(0.1A) to medium level fault current (10A)
5. It is configured to have operating time taps for adjustment of time setting is easy for protection coordination of distribution circuit
6. As wide display and indicators, it is able to enhance checking up and performance.
7. Watch dog function assures error - free operation.
8. The memory stores the last record of ground fault current of each circuit to facilitate following up in the event of accidents.
9. The ABS casing newly adopted offers improved durability and extended life of product.
10. All GFRs are tested EMC to ensures and high frequency & surge do not interfere design performance of GFR.
Rating & Specification
Items
Usage
Control Power Voltage
Frequency
Operating current setting
Operating Time setting
Ground Fault Detection Circuit
Operating status Indicator
Resetting
Ambient Temperature
Vibration Resistance
Impact Resistance
Common frequency dielecric
resistance
Insulating Resistance
Power Consumption
Contact Capacity
Weight
ZCT(input)
134
DEESYS TOTAL PRODUCTS GUIDE
DGF-M10(For 10 Circuits)
for protection against minor and major ground Leakage faults
AC 110/220V Operrable in Common or AC 240V
9steps, of 0.1, 0.3, 0.5, 1, 2, 3, 5, 10 and Lock T:70% to 100% of current setting
9steps, of 0.05, 0.1, 0.3, 0.5, 1, 2, 3, 5, 10sec T:±10% for 0.05 T=0.1±25㎳
10Circuits
LED (Red) and Digtal Display one for each Circuit
Energized:Full vibration width 4㎜, 1000rpm, 10min
Deenergized:Full vibration width 4㎜, 1000rpm, 10min
Impact strength of 300㎨ applied to 3 axial directions of right & left. up & down, and behind & forward
Opn Cirr-Casing : AC 2000V
Opn Cir-OOpn Cir : AC 2000V
Test Cir-Terminals : AC 1000V
Opn cir-Casing 10㏁ or more
Pon cir-Opn Cir : 10㏁ or more
Test Cir-Terminals : 10㏁ or more
7VA
2.0㎏
ZCT Rating 200㎃/100㎷ (ZR, ZS, ZB type)
DGF-M05(For 5 Circuits)
50/60㎐ Operable in common
Auto/Manual
-10℃~+50℃
60㎐, 1min
by DC 500V megger
AC 125V 5A/DC 30V 5A
5Circuits
5VA
1.7㎏
