GSG ZENITH Series Installation Manual

750.00
650.00
FRONT
280.00
REAR
560.00
Ø35.00
Ø45.00
630.00
750.00
TOP
520.00
450.00
LEFT
70.00
220.00
SECTION
Designation

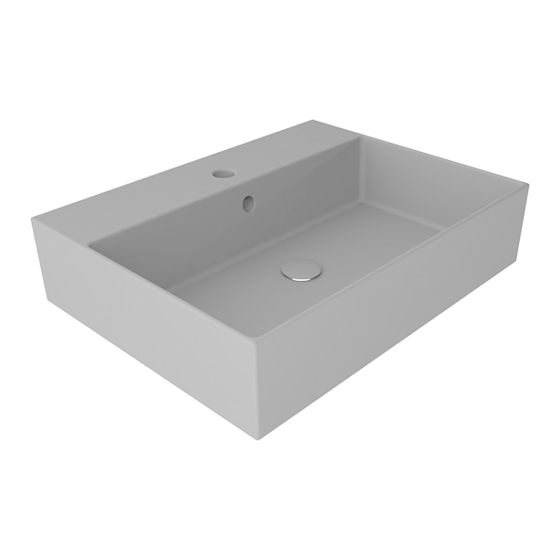

Lavabo Time cm 75 d'appoggio sospeso o su colonna,
monoforo (senza foro, tre fori su richiesta)
Countertop, wall-hung, or on pedestal Washbasin
Time cm 75 one hole (no hole, three holes on request)
Scale
1:10
cod. TILAV75
Lavabo Time cm 75 d'appoggio sospeso o su colonna,
monoforo (senza foro, tre fori su richiesta)
Countertop, wall-hung, or on pedestal Washbasin
Time cm 75 one hole (no hole, three holes on request)
This drawing including the respectivedata may neither be duplicated
nor modified nor altered without the consent of GSG Ceramic Design.
The use of the data/technical drawings take place at users own risk and
under exclusion of any liability of GSG Ceramic Design.
The dimensions are not binding; products are subject to changes.
Measurement shown may be subjected to small variations or are indicative.
