Maximum Acoustics VOICE 400 Owner's Manual

VOICE 400
PA AUDIO SYSTEM
Owner's Manual
Developed and designed in USA.
Made in China
PA AUDIO SYSTEM
VOICE 400
Congratulations on purchasing of your new speaker system.
This manual includes all the features, operations and troubleshooting,
helpful for the installation and using your new PA audio system.
Please, review this manual thoroughly to ensure proper installation and
operation of the product.
Important
When using outdoors, the device should be properly covered.
Do not attempt to open the device casing, this may cause a malfunction and void
the warranty.
Please, contact an authorized dealer for all service and repair questions.
Do not use or store the equipment in damp places.
Do not use the equipment in extremely cold conditions. If necessary, drive the
device on a low level of volume for the first 15 min.
Use soft and dry cloth for cleaning the equipment.
1. Features
The portable PA system has two detachable compartments: with MP3 player and
for cable storing.
VOICE 400 is extremely lightweight and powerful acoustic system, built for easy
handling and transportation. The mixing console has 8 channels (four mono and
two stereo channels), SD card slot and phantom power +48V for condenser
microphones, MP3 player, Bluetooth.

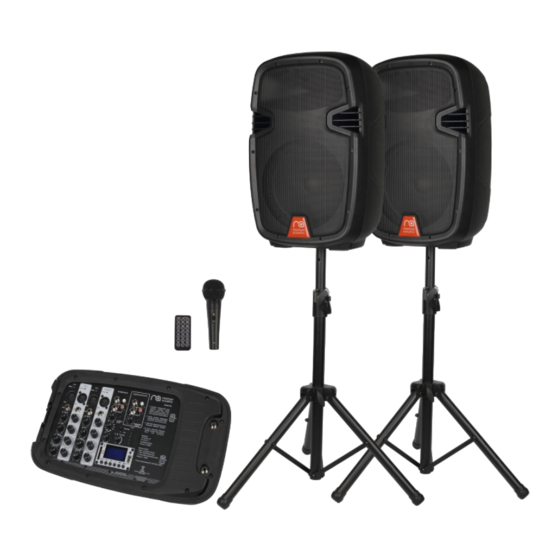

The set includes
2 Passive speakers
2 Speaker cables
1 Power cable
1 Mixing console, built in MP3 player
2 Speaker stands
1 Remote control.
2. Controls
Mono inputs 4 microphone / line channels. Each has LED indicator, 2-bend
equalizer, effect and volume controls.
1. PEAK: indicates the channel activity (green) and overload (red).
2. Balanced XLR microphone inputs
3. Unbalanced 6.3mm Jack line inputs
4. TREBLE: High frequencies control
5. BASS: Low frequencies control
6. EFFECT: Effects control
7. VOLUME: Volume control for each channel
Stereo inputs 2 stereo inputs for CD, MP3 players and other external
audio sources
8. Unbalanced 6.3mm Jack inputs (Right and Left)
9. RCA (Right and Left)
10. 3.5mm Mini-Jack
11. Volume control
Stereo outputs
12. 6.3mm Jack (intended exclusively for included speakers, do not try to
connect other device).
13. AUX 6.3mm Jack (recorders, speakers, etc.)
14. AUX RCA (recorders, speakers, etc.)
15. 3.5mm Mini-Jack headphone output
