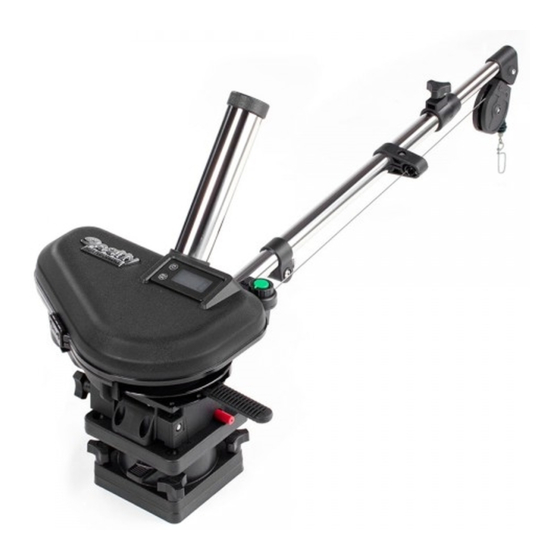

Scotty HIGH PERFORMANCE ELECTRIC DOWNRIGGER Installation, Maintenance, Use And Safety
  1. Manuals
  2. Brands
  3. Scotty Manuals
  4. Fishing Equipment
  5. HIGH PERFORMANCE ELECTRIC DOWNRIGGER
  6. Installation, maintenance, use and safety

Scotty HIGH PERFORMANCE ELECTRIC DOWNRIGGER Installation, Maintenance, Use And Safety

Hide thumbs Also See for HIGH PERFORMANCE ELECTRIC DOWNRIGGER:
Table of Contents

Advertisement

Quick Links

The Way To Fish™
HIGH PERFORMANCE
ELECTRIC DOWNRIGGER
• Installation • Maintenance •
• Use and Safety •
CAUTION! Read through this entire booklet before operating your Scotty Downrigger.
Improper use may damage your downrigger and void the warranty. You may also
expose yourself to unnecessary danger and physical injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIGH PERFORMANCE ELECTRIC DOWNRIGGER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scotty HIGH PERFORMANCE ELECTRIC DOWNRIGGER

Summary of Contents for Scotty HIGH PERFORMANCE ELECTRIC DOWNRIGGER

  • Page 1 • Installation • Maintenance • • Use and Safety • CAUTION! Read through this entire booklet before operating your Scotty Downrigger. Improper use may damage your downrigger and void the warranty. You may also expose yourself to unnecessary danger and physical injury.
  • Page 2 Electric Downrigger Manual Thank you for choosing a Scotty Downrigger. In 1973 Scotty produced its first downrigger. Our goal was to manufacture a superior downrigger, built to withstand the demanding marine environment and we now produce many manual and electric models. This instruction book will give you basic instruction on mounting and using your downrigger.
  • Page 3 Under normal use the counter should last many years. Heavy use of the back-light will greatly reduce the life of the counter. Replacement counters can be obtained at your local Scotty dealer or by contacting the factory directly (contact information can be found on page 16).
  • Page 4 Downrigger Safety The Scotty High Performance 30” fixed and 60” telescoping boom electric downriggers are designed for use on wide beam boats of 16 ft. in length and up. Installation on smaller boats is not recommended. All sports have some physical hazards connected with them and fishing with downriggers calls for some common sense and precaution.
  • Page 5 What happens when you hit bottom? When your weight touches bottom while trolling, you will see the downrigger boom bounce. You should immediately bring your weight up to a safer depth. WARNING! Be very cautious when fishing in strong tidal currents or on windy days.

  • Page 6: Overcurrent Protection

    PLEASE READ THROUGH ALL ELECTRICAL INSTRUCTIONS PRIOR TO INSTALLATION AND WIRING. Required for Installation and NOT included with this kit: • 30 amp fuse with fuse holder ( Scotty part No. 1124) Overcurrent Protection The wiring between the battery and the receptacle must have proper overcurrent protection in the form of an inline 30-amp fuse.

  • Page 7: Circuit Breaker

    Circuit Breaker Your Scotty electric downrigger is equipped with an automatic circuit breaker to protect the motor from overload. If you hang up on bottom or snag a heavy mass of weeds and then push the power up button, the circuit breaker will probably trip.

  • Page 8: Mounting Instructions

    Scotty. You may choose to use the supplied rod holder as is, or mount additional rod holders on your boat. Rod...
  • Page 9 9. Push the jog button to bring the weight or release clip up to the pulley. NOTE: The Scotty High Performance downrigger is equipped with a high speed, high torque motor. Extra caution should be observed when jogging your downrigger weight near the surface.
  • Page 10 10. Clip the snap of the Power Grip release (included in your downrigger kit) to the downrigger weight, or if using a trolling snap style, a few feet up from the weight. Let between 5 - 30 ft. of fishing line out (with your bait or lure attached to the end) then attach your fishing line to the Power Grip release by squeezing the jaws apart and placing your fishing line between the pads (see diagram on page 3).
  • Page 11 Use of Nylon line will void the downrigger warranty. Use of Scotty brand braided line will not void your warranty DON’T Spray downrigger or wire with lubricants, oils or cleaners (ex. Armor All®), as these will damage the plastic, may cause brake malfunction...
  • Page 12 Emergency Crank Handle Before fishing with your Scotty Depthpower for the first time, you should familiarize yourself with the use of the Emergency Crank Handle A. This device is intended for use when a power loss has occurred and the weight must be retrieved.

  • Page 13: Care And Maintenance

    4. Do not use any lubricants. Lubricants will attack the plastic components and void your warranty. 5. Do not expose the downrigger to ultraviolet light for extended periods of time. A fabric cover (Scotty product No. 3015) is available to protect your downrigger from ultraviolet damage. BRAKE ADJUSTMENT Changes in temperature, humidity, and the weight you use will effect the performance of your clutch brake.
  • Page 14 6. Attach a new Scotty bumper and snap hook. 7. Ensure you add two new auto-stop line beads onto your downrigger line at least 5 ft. up from your Scotty Bumper and line clip. This will ensure your downrigger stops retrieving before your terminal tackle hits the pulley.
  • Page 15 No. 1026 Gimbal Mount Pedestal Riser Dual Rod Holder No. 1028 - 9” No. 2606 - 6” No.447 No. 1029 - 12” No. 2612 - 12” For more information on these and other Scotty products, go to our website at www.scotty.com...
  • Page 16 Although Scotty makes every effort to ensure the accuracy of specifi cations at the time of publication, specifi cations for products described in this publication are subject to change without notice. Contact Scotty for the most current information.
