Comtrol Rocket Port C52 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Rocket Port Converter C52/C53
2000137 Rev B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rocket Port C52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comtrol Rocket Port C52

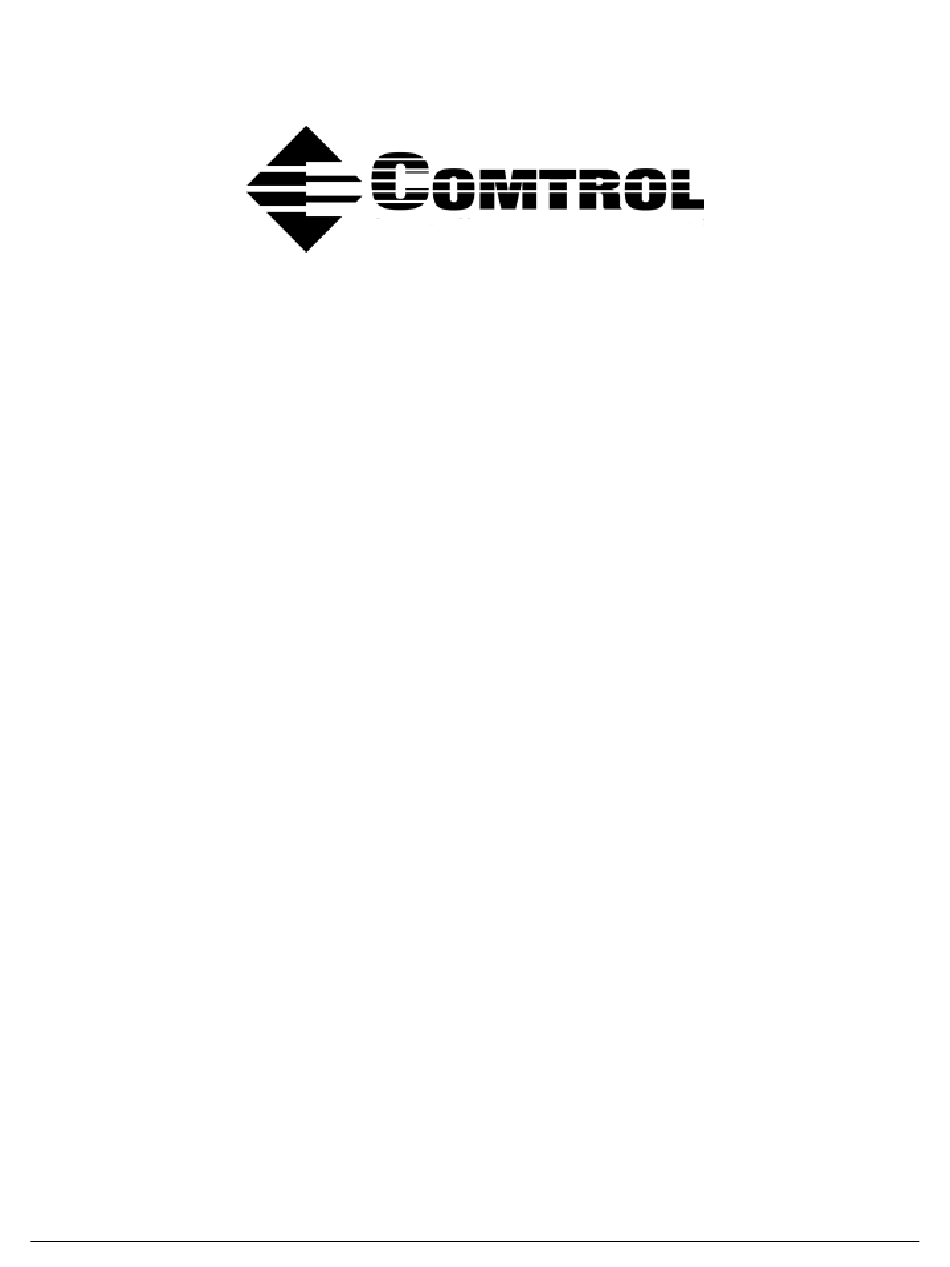

  • Page 1 User Manual Rocket Port Converter C52/C53 2000137 Rev B...
  • Page 2 LED indicators show the status of transmitting and receiving data, RTS signal, and power. • Comtrol has added a protect resistor inside the unit to avoid over-current from the remote ground to the converter’s ground. • Mounting Kit lets you mount the C52/C53 on a wall or any surface.

  • Page 3: Specifications

    Specifications C52/C53 Specification C52 - DC +9V to +30V, 150mA max. Current consumption: C53 - DC +9V to +30V, 270mA max. Up to 921.6K bps under 500 feet Baud rate: (0.15Km) Up to 4000 feet (1.2 Km) under Distance 115200 bps Note: Baud rate is dependent upon hardware and operating system configuration.

  • Page 4: Package Checklist

    By RTS Auto Data Direction Control (ADDC) When you are using the RS-485 in a multi-drop mode, Comtrol includes one jumper per unit to enable the termination resistor. You only enable the jumper (JP1) at the extreme ends of the chain.
  • Page 5 RS-422/RS-485 Pinouts The RS-422/RS485 interface with the RJ45 Jack connector or Terminal Block Connector is shown as follows: R J - 4 5 C o n n e c t o r T e r m i n a l B l o c k C o n n e c t o r 1 2 3 4 5 6 7 8 9 1 0 C52/C53 RS-422 RJ45 Jack...

  • Page 6: Operation

    Operation The C52/C53 supports four kinds of operations. They are: • Point-to-point, 4-wire full duplex • Point-to-point, 2-wire half duplex • Multidrop, 4-wire full duplex • Multidrop, 2-wire half duplex Note: If possible, connect the GND of both sides together to gain better signals. For example, you may need one more GND connection in addition to the 4-wire or 2-wire connections.

  • Page 7: Reference Section

    Reference Section RS-232 Pinouts The following depicts the RS-232 interface with the RJ45 connector. C52/C53 RJ45 RS-232 Signals Connector Pinouts DCD Always On ------ Note: The DTR and DSR pins have been shorted. This releases the users from the hardware flow control wiring problems. Therefore, only two types of RS-232 cable wiring examples are listed in the following.

  • Page 8: Rs-232 Cable Wiring

    RS-232 Cable Wiring Type 1: To connect the RS-232 side of a C52 or C53 to a DTE (Data Terminal Equipment or “your PC”) or DCE (Data Communications Equipment or “remote device”). Check the precise DTE/DCE pinouts. For an example, see the following DTE/DCE pinout examples.
  • Page 9 Type 2: To connect the RS-232 side of a C52 or C53 to a DTE (Data Terminal Equipment or “your PC”) with a 3-pin wiring if you don’t require hardware flow control. C52/C53 to DTE Cable Signal Signal RJ45 DB-25 Male C52/C53 to DTE Cable Signal...

  • Page 10: Impedance Matching And Termination Resistors

    Troubleshooting If installation fails or you are trying to resolve a problem, you should try the following before calling the Comtrol technical support line: For data transmission failure: •...

  • Page 11: Contacting Technical Support

    Copyright (c)2000 Comtrol Corporation. All Rights Reserved. Comtrol Corporation makes no representations or warranties with regard to the contents of this document or to the suitability of the Comtrol products for any particular purpose. Specifications subject to change without notice. Some features may not be available at the time of publication.
  • Page 12 Notes: Copyrights and Trademarks...

This manual is also suitable for:

Rocket port c53
