Freshtel 3010
Configuration Instructions
Step 1: Connect the Freshtel 3010 ATA to your Broadband
connection and analog telephone handset

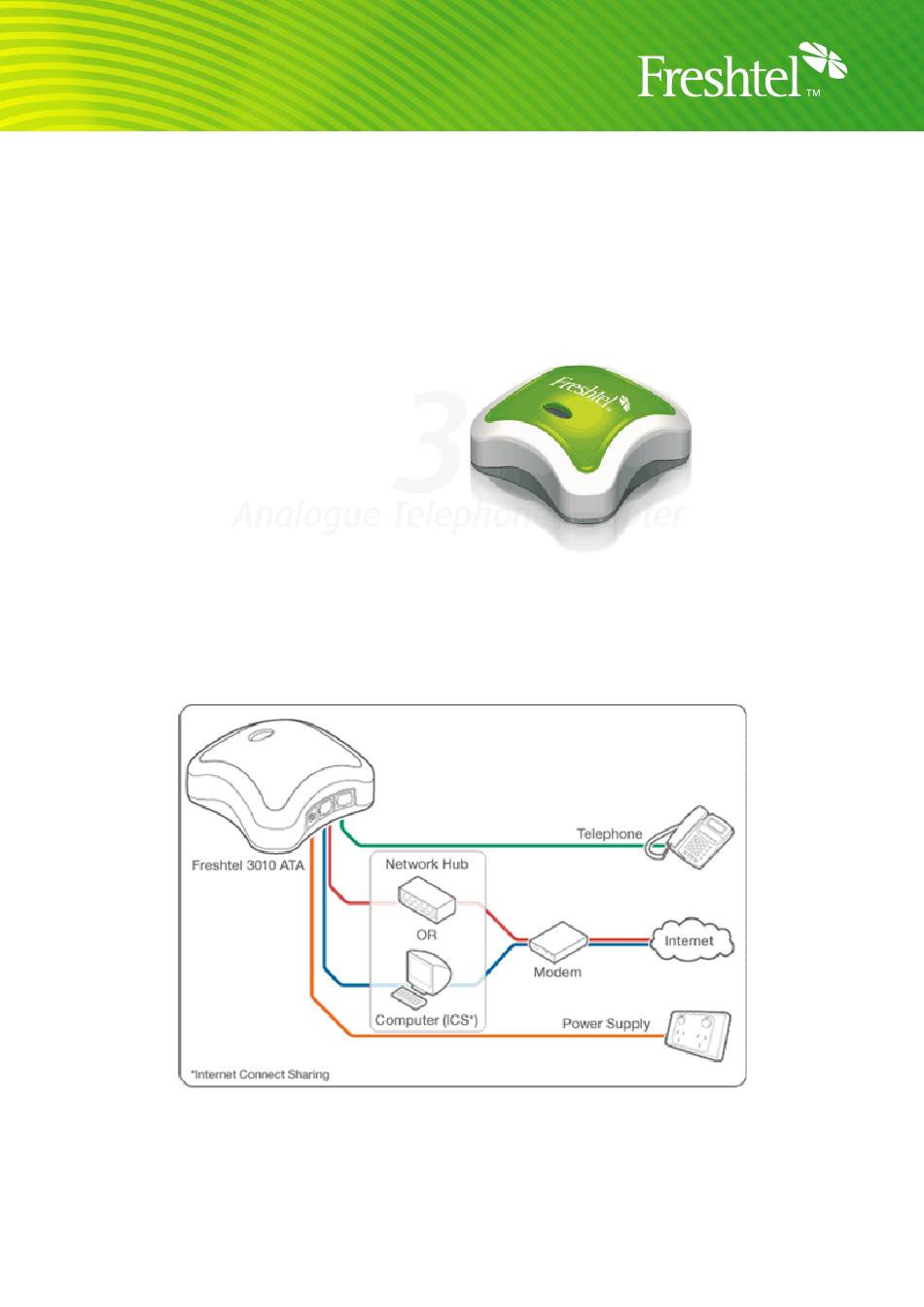

Use this illustration of the back of the ATA to connect it to your network.
NOTE: The Freshtel 3010 ATA needs to be connected via Ethernet and
comes pre-configured to acquire an IP Address via DHCP.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Freshtel 3010
- Page 1 Use this illustration of the back of the ATA to connect it to your network. NOTE: The Freshtel 3010 ATA needs to be connected via Ethernet and comes pre-configured to acquire an IP Address via DHCP.
- Page 2 5 minutes to complete. Once the startup sequence is complete, the light will flash ORANGE. This indicates that the ATA cannot connect to the Freshtel network. This happens if the ATA has not yet been configured, or if there is a network problem.
- Page 3 If your network uses a DHCP Server to assign IP Addresses to network devices, or if you are connecting the 3010 ATA to a home router such as a Linksys or Netgear router or a modem that supports DHCP/NAT, please do the following: 1.
- Page 4 Manually Assigning a Static IP Address Members using Static IP on their home network may wish to configure the ATA with a static IP. If you have obtained a static IP from your Internet Service Provider (ISP) and wish to configure your adaptor with your static IP settings, please follow the instructions below: You will first have to obtain the following information: •...
- Page 5 9. You will now need to reload the ATA by clicking on the Reload Now link at the top of the screen. After the 3010 ATA has reloaded, it will attempt to connect to your Internet phone call provider. If it connects successfully, the light on the ATA will be solid...
- Page 6 General Settings: The General Settings tab allows you to modify some settings of the Freshtel ATA. Volume Control: These settings affect the volume of the speaker and microphone on your phone handset. If the volume is too soft or too loud you can fine tune it by modifying these values.
- Page 7 NTP Server: Choose to either obtain the Network Time Protocol server address automatically or specify the address manually. IP QoS: If you are using the 3010 ATA with a commercial grade router, you may need to adjust the IP Quality of Service settings to prioritise your voice traffic. This is an advanced option which most people do not need to alter.
- Page 8 Automatic Configuration: Click the label “Download and install configuration file” to download the latest configuration file if you are using the 3010 ATA in a network which has an automatic configuration script available. Dialplan: You can enter advanced dialling rules in this box. You may already have some rules pre-configured by your Internet call provider.
