IBC Cleaner LC Instruction Manual

Thank you for choosing the IBC Brand Cleaner LC. The IBC Brand Cleaner LC is a high-performance device
designed for cleaning the ferrule end faces of LC connectors and MU connectors. Please carefully read these
instructions before using this device. Please keep the instructions for future reference.
1. Safety precautions
Though our device is deemed safe, improper usage or handling can still inflict injury to others.
IBC Brand Cleaner LC is designed to clean LC connectors and MU connectors only. US Conec is not
liable for damage caused in attempt to apply this device to other applications.
2. Notes on usage
Do NOT attempt to disassemble as this can cause damage to the device and void the warranty.
Do NOT try to re-use the cleaning cloth as this will eliminate the cleaner's effectiveness and void warranty.
Do NOT touch the cleaning cloth as this will cause contamination.
Do NOT pull the cleaning cloth, use only the device body.
Do NOT use this cleaner when the cloth is empty. This may can cause damage to the connector.
3. Notes on storage for extended periods
Do not leave the cleaner exposed to to direct sunlight, high temperature or high humidity over an extended
period. The dust cap should be closed at all times when device is not in use

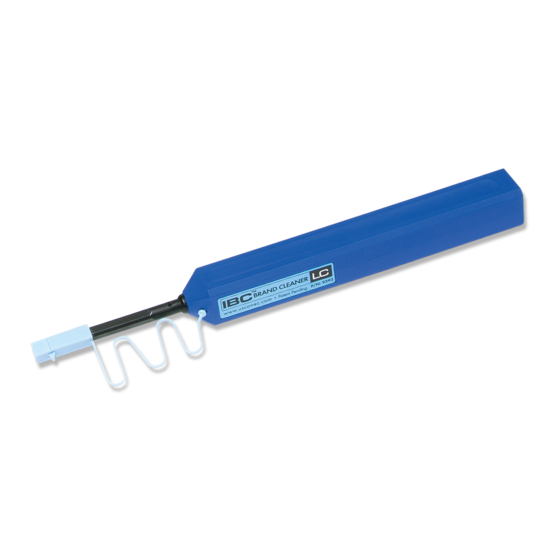

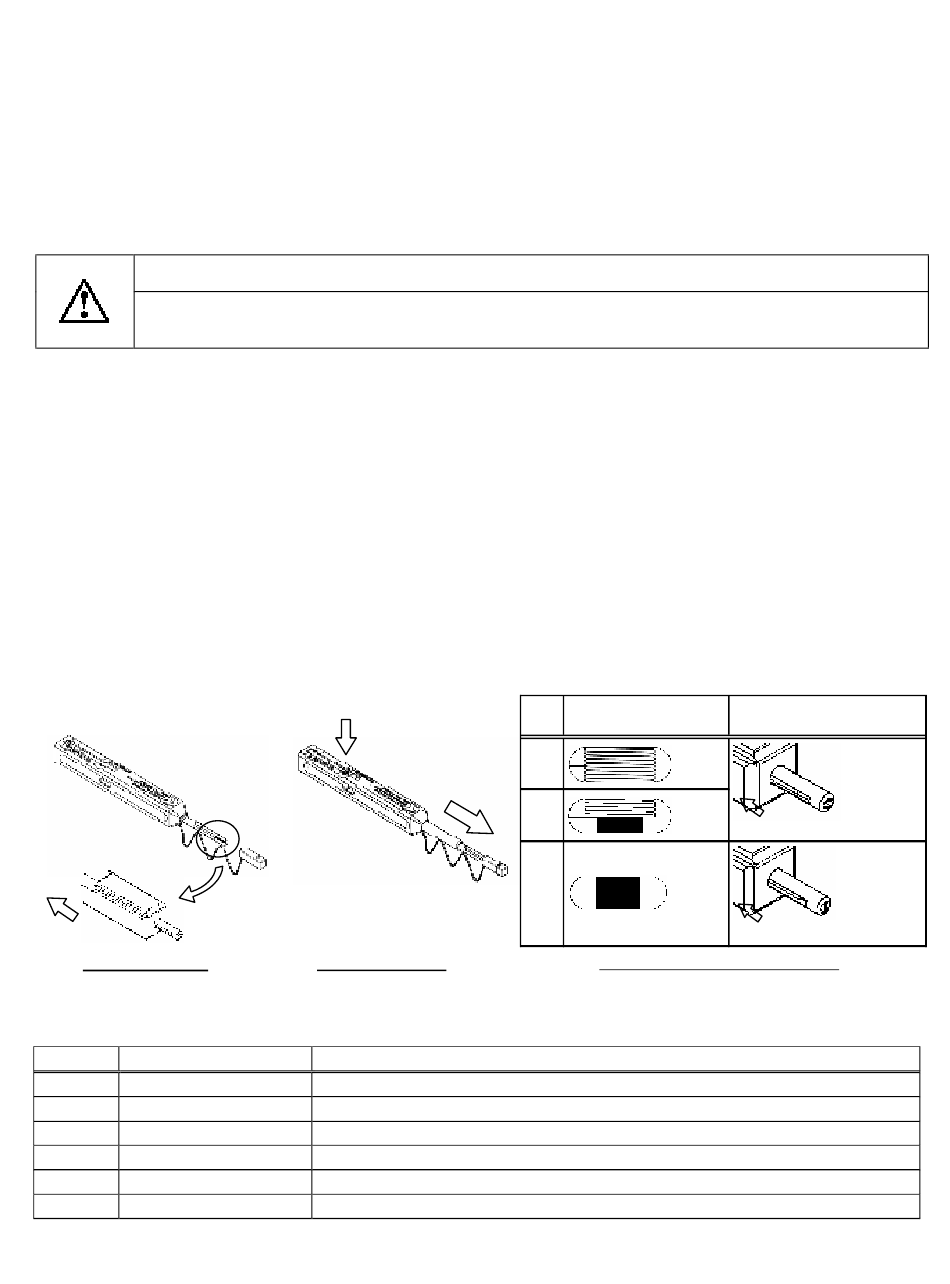

4. Cleaner construction
C. Lock Button
D. Outer Shell
B. Nozzle
F. Indicator
A. Tip
Slide
Standard Mode
No. Part Name
Tip
A
Nozzle
B
C Lock Button
Outer Shell
D
Guide Cap
E
Indicator
F
TM
IBC Brand Cleaner LC Instruction Manual
Push Lock Button
E. Guide Cap
Pull Nozzle while
pushing button.
Extended Mode
Lead the cleaning cloth to the optical connecter end face.
Lead tip to the optical connecter end face.
Push the button to extend and contract the nozzle.
Push the outer shell to clean the connector.
Acts as dust cap or cleaning adapter for connector plug.
Provides indication of remaining cleaning cloth.
残量 残量確認窓外観
View of Indicator
多
Full
Pull Nozzle
少
Little
無
Empty
Identification of remaining cloth
Function
先端部外観
View of the Nozzle end View of the Nozzle end
Cloth
(White)
Cloth
(White)
Slide
Red
Red
Slide
Tip (Black)
Cloth
(White)
Tip (Black)
No Cloth
(Black)
