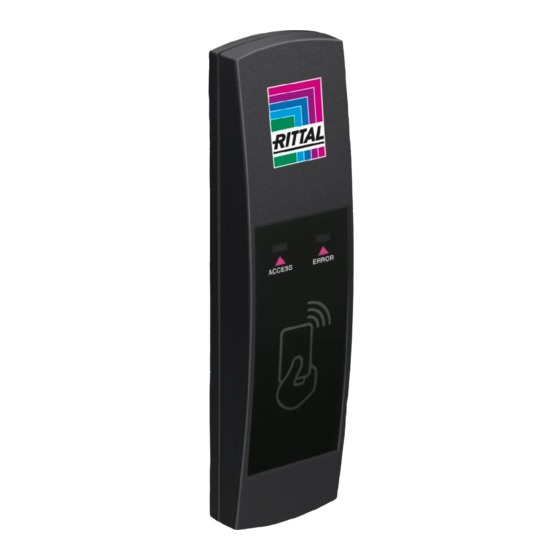

- Page 1 CMC III transponder reader VX DK 7030.232 DK 7030.233 Assembly and operating instructions...
- Page 2 Rittal GmbH & Co. KG Auf dem Stuetzelberg 35745 Herborn Germany Tel.: +49(0)2772 505-0 Fax: +49(0)2772 505-2319 E-mail: info@rittal.de www.rittal.com www.rittal.de We are always happy to answer any technical questions regarding our entire range of products. Rittal CMC III transponder reader VX...
-
Page 3: Table Of Contents
6.5.1 Downloading the file ........11 6.5.2 Editing the file ..........11 6.5.3 Uploading the file ..........12 Storage and disposal ......13 Storage ............13 Disposal ............13 Technical specifications ...... 14 Customer service addresses ....15 Rittal CMC III transponder reader VX... -
Page 4: Notes On Documentation
Additional compatible base systems can be CE labelling found on the internet at www.rittal.com for Rittal GmbH & Co. KG hereby confirms that the CMC model no. DK 7030.233. The term "base systems" is used in these instructions as III transponder reader VX is compliant with the EC EMC placeholder for the various systems. -
Page 5: Safety Instructions
General safety instructions Please observe the subsequent general safety instruc- tions for the installation and operation of the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the transponder reader. – Please do not make any changes to the transponder reader that are not described in this manual or in the associated manuals. -
Page 6: Product Description
The intended use also includes the observance of the documentation provided and fulfilling the inspection and maintenance conditions. Rittal GmbH & Co. KG is not liable for any damage which may result from failure to comply with the docu- mentation provided. The same applies to the non-ob- servance of the valid documentation for any deployed accessories and the base systems. -
Page 7: Transport And Handling
◾ Check the unit for any damage that may have oc- curred during transport. Note: Damage and other faults, e.g. incomplete delivery, should be reported immediately, in writing, to the shipping company and to Rittal. ◾ Remove the unit from the PE film. Rittal CMC III transponder reader VX... -
Page 8: Installation
VX sheet steel door (Fig. 2). ◾ Use a 90° countersink to deburr the holes for cable entry. ◾ Attach the transponder reader to the prepared loca- tion using the pan-head screws provided. Rittal CMC III transponder reader VX... -
Page 9: Installation On A Vx It Glazed Door Or Vx It Vented Door
◾ Connect this handle via the connection cable to the Access Control/DCM. ◾ Connect the transponder reader via the connection cable to the Access Control/DCM. ◾ Connect the CAN bus to the Access Control/DCM again. Rittal CMC III transponder reader VX... -
Page 10: Operation
◾ First select the "Processing Unit" node in the naviga- tion area. To delete an access authorisation via transponder ◾ Select the Configuration tab in the configuration card: area. ◾ Select the line with the required entry you wish to delete. Rittal CMC III transponder reader VX... -
Page 11: Monitoring Tab
Monitoring tab. 6.5.2 Editing the file The file can now be edited using a text editor. Rittal Note: recommends using "Notepad++" for this instead of the As the transponder reader does not have a standard "Notepad"... -
Page 12: Uploading The File
"access.cmc3" file. – Handle 2 is opened using access code "123456" ◾ Right-click the "access.cmc3" file and select the (line 12). User "Rittal" and the information "Info 2" are "Upload" action. entered in the CMC III PU logfile. ◾ If the file cannot be uploaded this way, first delete the –... -
Page 13: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the transponder reader consists mainly of the "housing"... -
Page 14: Technical Specifications
Mifare, Legic Advant, HID, FeliCa, (Legic Prime on request). The following tags can ISO 14443A Detailed information can be found in the internet at be read www.rittal.de for model no. DK 7030.232 or DK 7030.233. Frequency 13.56 MHz Connection cable (m) Inputs and outputs... -
Page 15: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III transponder reader VX... - Page 16 ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0...
