Water Heater Users Guide Version 2.0 Serial No: Contents 2 ..Fitting Water Heaters 6 ... Health & Safety 7 ... Dimensions & Electrical Specs 3 ... Connecting to Power 8 ..Accessories 4 ... Power Connector & Fuse Info 10 .. - Page 2 1. Fitting the Water Heater Mounting templates can be downloaded from the Transvend website: www.transvend.com. Ensure that all water heaters are fitted level and mounted in accordance with the instructions so that the tap cannot be accidentally operated or knocked.
-
Page 3: Connecting To Power
Electrical Specifications Voltage Current Power 12vdc 350W 12vdc 700W 24vdc 700W 110vac 6.4A 700W 230vac 3.0A 700W 2. Connecting to Power • IMPORTANT! Check your +ve and -ve negative supply cables are correctly labelled. DO NOT REVERSE THE POLARITY. • Check the serial label underneath the water heater for the current and wattage rating. -
Page 4: Power Connector & Fuse Info
Fuse Information When installing Transvend equipment it is important to fuse the water heater correctly. Transvend rec- ommend the use of either a MIDI / MEGA bolt-down fuse and the associated housing or an automotive MAXI fuse. Make sure that the fuse is rated in accordance with the water heater specification. - Page 5 Switch Label. Low Water Battery Voltage Warning Power on To view any activated operational features please see our website – www.transvend.com. • Turn the machine on using the On/Off Button on the front of the heater. • The Power On LED and the Low Water LED will illuminate.
-
Page 6: Health & Safety
If a water storage container is used then regular internal cleaning will be required. • Transvend recommends the use of ‘Milton Sterilising Fluid’ which is a chlorine based agent for the inside of the water container. Always follow the manufactures instructions carefully. - Page 7 6. Specifications 2 Litre Water Heaters (H 295mm x W 179mm x D 254mm) Model Voltage Power Current 105/10/A 12vdc 350W 105/10/B 12vdc 700W 106/10/C 24vdc 700W 107/10 110vac 700W 6.4A 108/10 230vac 700W 3.0A 3 Litre Water Heaters (H 293mm x W 231.5mm x D 254mm)
-
Page 8: Accessories
7. Accessories Transvend manufacture a range of different accessories for the 2 litre, 3 litre and 4 litre water heaters. The carry handle kit (see figure 7.1), replaces the fitting brackets and allows you to remove the water heater from the vehicle. The locking pullout cradle (see figures 7.2 & 7.3) also replaces the fitting brackets and is usually used when the water heater is located in a locker or a confined area. - Page 9 Figure 7.2 2 litre water heater fitted on to locking pullout cradle (retracted). Figure 7.3 2 litre water heater fitted on to locking pullout cradle (extended).
-
Page 10: Water Heater Family
8. Water Heater Family • Dimensional information for accessories can be found on www.transvend.com. Figure 8.1 2 litre water heater Figure 8.2 3 litre water heater Figure 8.3 4 litre water heater... - Page 11 Figure 8.4 2 litre water heater fitted with optional side mount brackets on the left Figure 8.5 2 litre water heater fitted with optional side mount brackets on the right Figure 8.6 2 litre water heater fitted with and without tap cover...
- Page 12 Transvend Ltd Unit 2B, Grange Farm Industrial Estate Tadlow Road, Wrestlingworth SG19 2HE, United Kingdom +44 (0)1767 631726 +44 (0)1767 631661 info@transvend.com www.transvend.com...
Need help?
Do you have a question about the 105/10/A and is the answer not in the manual?
Questions and answers

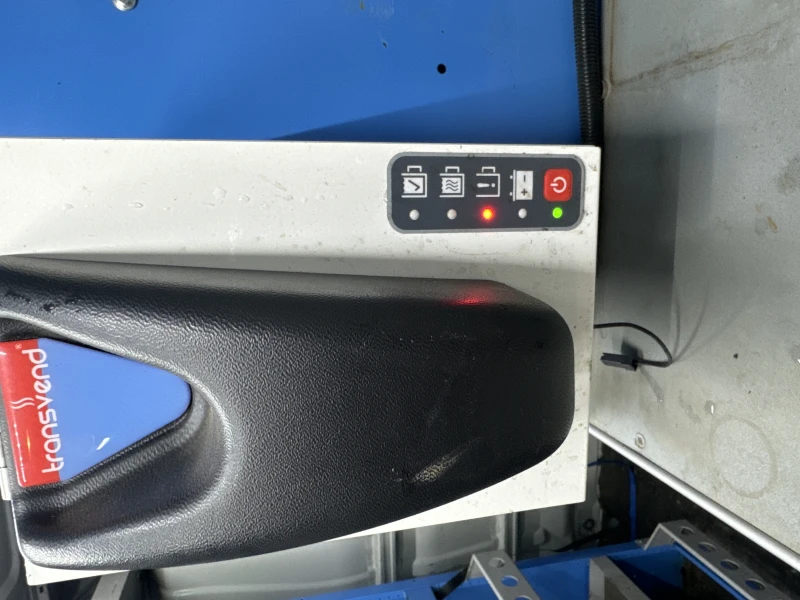

Got a new van with your water heater. No power when I press the red button ?
There could be several reasons why there is no power when pressing the red button on the TRANSVEND water heater model 105/10/A:
1. Fuse Issue – Ensure that the correct fuse (MIDI/MEGA bolt-down fuse or automotive MAXI fuse) is installed and rated according to the water heater specification.
2. Battery Voltage – If the battery voltage is too low, the heater may not power on.
3. Engine Running Sensor – If the heater is wired to the vehicle’s main battery, it may only operate when the engine is running.
4. Faulty Power Connection – Check if the power supply and wiring are properly connected.
5. Press to Heat Function – If this function is enabled, the heater only operates in a single heating cycle and requires manual activation for each cycle.
Checking these factors should help diagnose the issue.
This answer is automatically generated
Hi, the machine is not heating up. It says level low, even though water is on the max mark. Is there a common issue to resolve this? Regards
A common issue for the TRANSVEND 105/10/A water heater not heating up and showing a low-level warning despite having water at the max mark could be incorrect mounting. If the heater is not mounted as recommended, the water level float switch may not operate correctly, preventing heating. Ensure the heater is installed properly according to the guidelines. Additionally, check for proper servicing and maintenance, ensuring there is no blockage or malfunction in the float switch.
