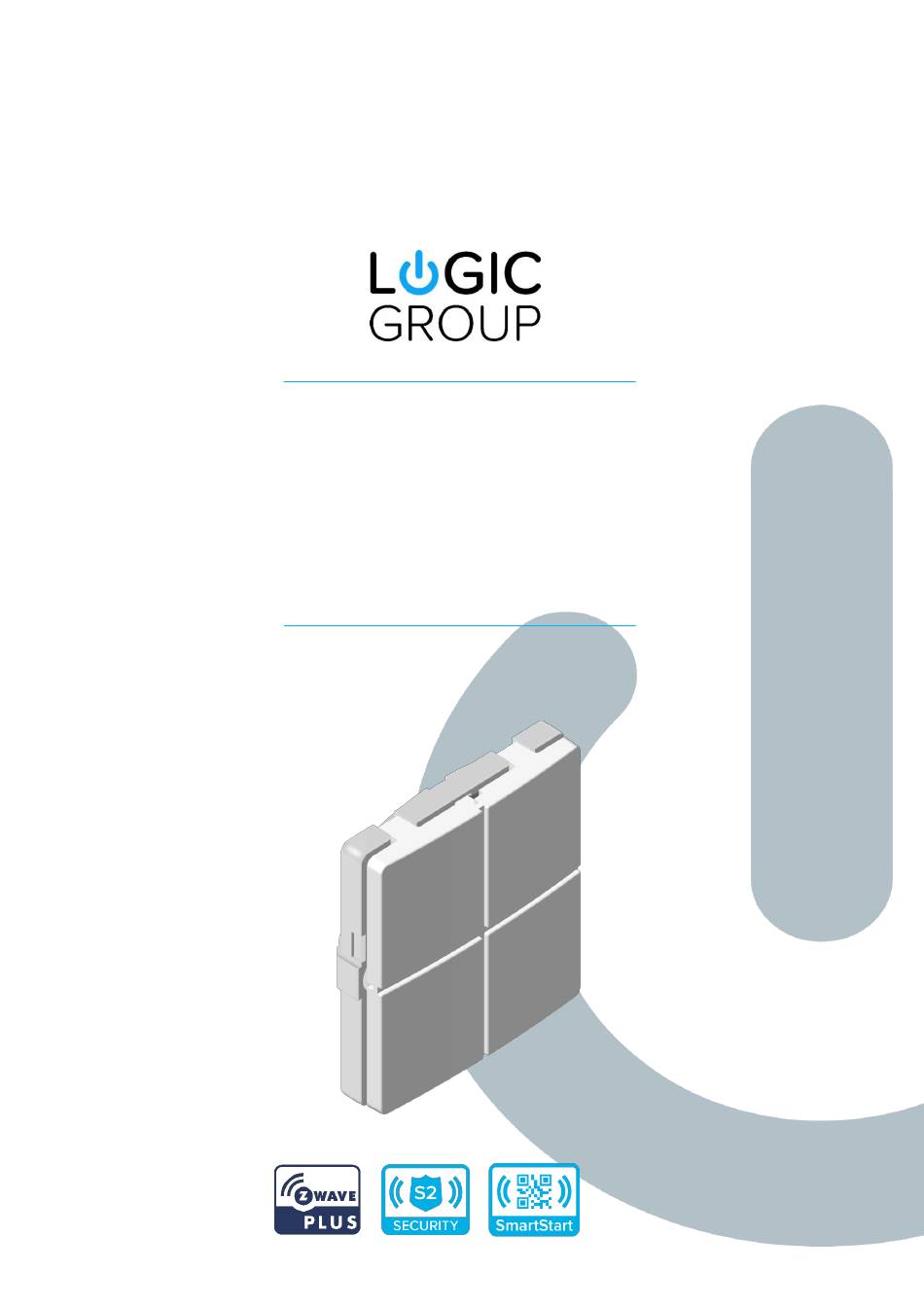

MATRIX ZBA7140
User's manual
EN
ZBA
MATRIX
Type: ZBA7140
Z-Wave Battery Wall Controller
Installation Guide and User's Manual
Logic Group A/S
Page 1 / 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRIX ZBA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logic Group MATRIX ZBA Series

  • Page 1 MATRIX ZBA7140 User’s manual MATRIX Type: ZBA7140 Z-Wave Battery Wall Controller Installation Guide and User’s Manual Logic Group A/S Page 1 / 31...
  • Page 2 MATRIX ZBA7140 User’s manual Logic Group A/S Vallensbækvej 22 B DK-2605 Brøndby +45 7060 2080 info@logic-group.com www.logic-group.com Logic Group A/S Page 2 / 31...

  • Page 3: Table Of Contents

    7.3.1 Z-Wave specific device information ..................... 16 7.3.2 Z-Wave specific information......................17 Factory reset ............................... 18 Association groups ............................. 19 Association groups ..........................19 Configuration parameters ........................21 Technical specifications .......................... 31 Logic Group A/S Page 3 / 31...

  • Page 4: Safety Instructions

     Please read and follow the manual carefully. Please read this and other device guides carefully. Failure to follow the recommendations set forth by Logic Group A/S may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and / or reseller will not be held responsible for any loss or damage resulting from not following any instructions in this guide or in other materials.

  • Page 5: Product Description

    This means that the small coin-cell battery can last between 5 – 10 years. MATRIX ZBA is estimated to a battery lifetime, at normal use, to approximately 5 years. Logic Group A/S Page 5 / 31...

  • Page 6: Installation Guidelines

    5.3 Removing the Pushbutton Cover The pushbutton cover is removed from the device by loosening it with a slotted screwdriver in the top (A) and then in the bottom (B). Hold the top while releasing the bottom. Logic Group A/S Page 6 / 31...

  • Page 7: Removing From Frame

    After unfastening from the wall, push the battery out of the compartment. A slotted screwdriver may be used to push at the point of the arrow in Figure 2. Figure 2: Pushing out the battery. A slotted screwdriver may be used at the point of the arrow. Logic Group A/S Page 7 / 31...

  • Page 8: Advanced Features

    Command Class Switch Multilevel Stop is sent. The internal status of the switch decides whether the Start command contains a dim up or a dim down command. Logic Group A/S Page 8 / 31...

  • Page 9: Sending Pre-Configured Dim-Levels

    So, byte 1 = 1, byte 2 = 50, byte 3 = 10, byte = 0. In hexadecimal it is 01 32 0A 00, and in decimal the value that the configuration parameter must be set to is: 20056576. Logic Group A/S Page 9 / 31...

  • Page 10: Button Functions

    “off” command. This functionality can be used to control devices for automatic windows or blinds, so the window is opening or closing if the button is held down, and as soon as it is released, it stops. Logic Group A/S Page 10 / 31...

  • Page 11: Control Of Other Devices

    In the figure the dimmer is controlled by group 5 (pushbutton 2) in device #5 by sending Multi- level Switch commands to the dimmer device #2. 5 -> 2 Multilevel Switch Figure 4: Controlling a light dimmer with pushbutton 2 Logic Group A/S Page 11 / 31...
  • Page 12 9 for device #5, 3 and 7 for device #7) with the Parameter #13 = 1 dimmer device #9. 5 -> 9 Multilevel Switch 9 <- 7 Multilevel Switch Figure 5: Pairing function with two MATRIX ZBA devices to control one dimmer device. Logic Group A/S Page 12 / 31...

  • Page 13: Central Scene Notifications

    2: Key held down 3: Key pressed two times 4: Key pressed three times 0: Key pressed one time 1: Key released 2: Key held down 3: Key pressed two times 4: Key pressed three times Logic Group A/S Page 13 / 31...

  • Page 14: Led Indication

    NB. It is important to be aware of, that MATRIX ZBA does NOT go into “deep-sleep” mode when the module is not included in a Z-Wave network. Do NOT store the module with the battery mounted, when not in use! Logic Group A/S Page 14 / 31...

  • Page 15: Behaviour Within The Z-Wave Network

    If MATRIX ZBA already belongs to a Z-Wave network, the remove process must be performed before adding it in a new network. Otherwise, the adding of the device will fail. (QR) Z-WAVE DSK Figure 6a: SmartStart Inclusion Figure 6b: Classic Inclusion/Exclusion Logic Group A/S Page 15 / 31...

  • Page 16: Security

    ROLE_TYPE_SLAVE_SLEEPING_REPORTING Z-Wave Plus Role Type ICON_TYPE_GENERIC_WALL_CONTROLLER Z-Wave Plus Icon Type ICON_TYPE_GENERIC_WALL_CONTROLLER Z-Wave Plus User Icon Type Manufacturer specific device information: Property Reported value 0x0234 Manufacturer ID 0x0004 Product Type ID 0x0129 Product ID Logic Group A/S Page 16 / 31...

  • Page 17: Z-Wave Specific Information

    COMMAND_CLASS_ZWAVEPLUS_INFO (V2) COMMAND_CLASS_TRANSPORT_SERVICE (V2) COMMAND_CLASS_SECURITY COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SUPERVISION (V1) COMMAND_CLASS_ASSOCIATION (V2) COMMAND_CLASS_ASSOCIATION_GRP_INFO (V3) COMMAND_CLASS_CONFIGURATION (V3) COMMAND_CLASS_DEVICE_RESET_LOCALLY (V1) COMMAND_CLASS_FIRMWARE_UPDATE_MD (V5) COMMAND_CLASS_MANUFACTURER_SPECIFIC (V2) COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION (V3) COMMAND_CLASS_POWERLEVEL (V1) COMMAND_CLASS_VERSION (V3) COMMAND_CLASS_WAKE_UP (V2) COMMAND_CLASS_BATTERY (V1) COMMAND_CLASS_CENTRAL_SCENE (V3) COMMAND_CLASS_INDICATOR (V3) Logic Group A/S Page 17 / 31...

  • Page 18: Factory Reset

    MATRIX ZBA can be factory reset by holding the switch (I) for at least 10 seconds, the LEDs will give a short flash. By following this procedure, all configuration parameters and the device network address will be reset back to the values they had when the device was manufactured. Logic Group A/S Page 18 / 31...

  • Page 19: Association Groups

    Nodes in this group receives Switch Multilevel Set / Switch Multilevel Start Level Change / Switch Multilevel Stop Level Change when pushbutton 3 is operated. It can, as an example, be used for controlling light dimmers. Max. nodes in the group: 5 Logic Group A/S Page 19 / 31...
  • Page 20 Nodes in this group receives Switch Multilevel Set / Switch Multilevel Start Level Change / Switch Multilevel Stop Level Change when pushbutton 4 is operated. It can, as an example, be used for controlling light dimmers. Max. nodes in the group: 5 Logic Group A/S Page 20 / 31...

  • Page 21: Configuration Parameters

    This parameter specifies the mode of the LED indication. Value Description LED indication is turned off. LEDs indicates the current level of the battery, when the device is included. (Default) LED colour is set by configuration parameter 5. Logic Group A/S Page 21 / 31...
  • Page 22 Messages in association group 9 are sent as secure. All messages in all groups are sent as secure. (Default) NB. The above values are bitmasks and can be added up to select several options. Logic Group A/S Page 22 / 31...
  • Page 23 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 23 / 31...
  • Page 24 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 24 / 31...
  • Page 25 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 25 / 31...
  • Page 26 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 26 / 31...
  • Page 27 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 27 / 31...
  • Page 28 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 28 / 31...
  • Page 29 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 29 / 31...
  • Page 30 : Use dimmer default timer value. (Default) 0 - 255 1 – 127 : Duration in seconds. 128 – 255 : Duration in minutes (minus 127) from 1 – 128 minutes, where 128 is 1 minute. Logic Group A/S Page 30 / 31...

  • Page 31: Technical Specifications

    Device type: Slave without repeater functionality. Generic Device Class: Wall Controller Specific Device Class: None Routing: FLiRS: Z-Wave Plus: Firmware Version: 1.01 Security: Security S0, Security S2 Inclusion: SmartStart Inclusion or Classic Inclusion Logic Group A/S Page 31 / 31...
