Summary of Contents for Asnac BOTEM CUBE

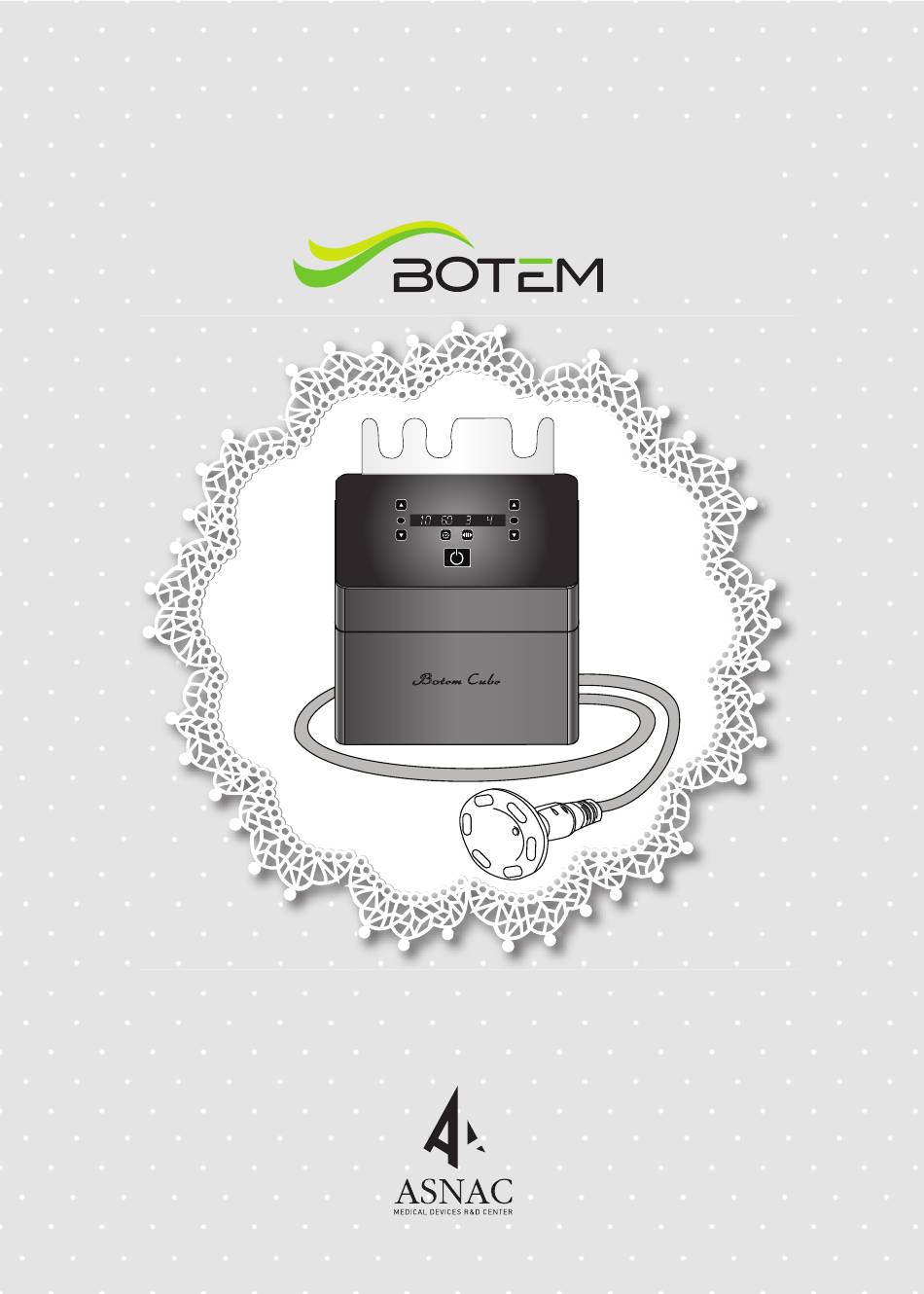

- Page 1 USER'S MANUAL High Frequency Massager(BOTEMCUBE) (Rev. 0) 2018. 8. 20.
-
Page 3: Table Of Contents
BOTEMCUBE Manual please be sure to read this manual and be aware of the device before using this product. ㆍ ㆍ Do not use this product for other than intended usage. Table of Contents Chapter 1. Information for Safe Operation Chapter 2. -
Page 4: Chapter 1. Information For Safe Operation
Information for Safe Operation 1. Intended use of the device Device applying High-frequency energy to human body to massage, etc. 2. Outline of the device Using physical energy such as pressure and stimulation and applying High-frequency energy to human body. 3. -
Page 5: Chapter 2. Description Of The Device
Description of the device 1. Main Body Cradle of handpiece cable Front Side ● LED Display Power and control button Logo Handpiece Cale Handpiece Rear Side ● Cradle of handpiece cable Vacuum pump filter DC Adapter socket Cable socket Ventilation part of cooling fan Accessory : Handpiece(Large, Medium, Small), Power Cable ●... - Page 6 Description of the device 2. Handpiece Handpiece L ● Handpiece M ● Handpiece S ● - 06 -...
-
Page 7: Chapter 3. Description Of The Function
Description of the function ① ⑩ ④ ⑤ ⑦ ⑨ ② ⑪ ③ ⑥ ⑧ ⑫ ⑬ LCD Screen ① High frequency(RF) level up button : Increase the RF level step by step. ② RF output display : Informs start of high frequency operation. ③... -
Page 8: Chapter 4. Performance
⑧ Output current : Max. 90mA ± 10% ⑨ Vacuum pressure : Max. 550mmHg ± 10% ⑩ Timer : 5 min.~60 min. 2. Product Specification Model BOTEM CUBE / ABC-01P Size(mm) 240(Length) X 250(Width) X 170(Depth) Weight 5kg/set Rated Voltage &... -
Page 9: Chapter 5. Operation Of The Device
Operation of the device 1. Connection of handpiece cable ① Connect one plug of handpiece cable to the connector socket of the main body. ② Connect the plug and socket at the right position of connection and complete the connection by turning the connector cap to the screw locking direction. - Page 10 Operation of the device 5. Control of time settings ① Setting the time by the time control buttons when the power is on. ② Increase 5 times each pressing the time button up to 60 minutes. (5,10,15,20 ~ 55,60) 6. Control of High frequency output ①...
-
Page 11: Chapter 6. Storage And Maintenance After Use
Storage and Maintenance after use 1. Maintenance after treatment ① Disconnect the DC adapter from the power socket and the power cord. ② Disconnect handpiece from the cable and clean it with alcohol, cotton swab and soft cloth for maintenance. ③... - Page 12 Storage and Maintenance after use 5. Clean of the vacuum pump filter ① Frequently check if filter is full of foreign substance at the back of main body. ② If the filter is full enough, turn the filter to the right. ③...
-
Page 13: Chapter 7. Safety Warning
Safety Warning - Make sure to understand and observe 'Safety Warning' since it is to prevent any accident or risk in advance through right and safe use of the device. - 'Safety Warning' includes all cautions both before and during use. - 'Safety Warning' is divided into 'Warning' and 'Caution,' which means as follows. - Page 14 Safety Warning Warning Clean the power cord and power plug with dry cloth when it is contaminated. * Dust or pollutant can cause electric shock or fire. Do not bend, tie or pull the power cord by force. * It can cause electric shock or fire due to short circuit. Dry your hand when plugging in and eliminating the power cord.
- Page 15 Safety Warning Warning Do not use the device in a bathroom or a place with high humidity. * It can cause electric shock or fire due to short circuit. Only use the RF cream for the skin care or massage the body. * It can cause injury.
- Page 16 Safety Warning Warning Do not bend or pull the handpiece cable by force. * It can cause injury or breakdown of the device. Do not use with other inductive electric appliances. * It can cause breakdown of the device. Stop using the device and immediately contact to the service center when it makes strange sound, smell or smoke.
- Page 17 Safety Warning Caution Do not apply excessive force on the device when installing it. * It can cause breakdown of the device. Install the device on flat and hard floor. * It can cause vibration or noise. * It can cause breakdown of the device. Install the device for the back side of main body not to lean against the wall.
- Page 18 Safety Warning Caution Check for abnormal operation or damage of handpiece before contact with skin. * It can cause burn or injury. Lower the high frequency and vacuum suction level when a patient complains of pain during use. * It can cause burn or breakdown of the device. Stop using the device immediately when any abnormality on skin is detected.
- Page 19 Do not use the device in the same place where there is equipment generating strong electromagnetic wave (e.g. X-ray, MRI, etc). ☞ Contact : Asnac Corp., Service Center : 051-634-2929 - 19 -...
-
Page 20: Chapter 8. When The Device Cannot Be Used
When the device cannot be used Do not use the device under conditions below. - Children - Pregnant woman - Disease (Heart disease, Skin disease, Liver disease, Kidney disease, Malignant tumor , Cancer, Diabetes) - Abnormal blood pressure - Perceptual disorder - Patient with infectious disease - hose who are taking medicine for infection - Sensitive Skin... -
Page 21: Chapter 9. Checklist Before After-Sales Service Request
Checklist before after-sales service request If the device does not work even after checking and making corrective actions, contact to the service center. Problem C h e c k a n d C o r r e c t i v e A c t i o n s The Red LED light is displayed on ①... -
Page 22: Chapter 10. Labelling And Marking
2) Product Label Product Name High Frequency Stimulator BOTEM ASNAC Corp. 3F, 31 Sasang-ro 35 Beon-gil, Sasang-gu, Busan, Korea Tel: 82-51-634-2929 Fax: 82-51-955-2929 Homepage : http://www.asnac.co.kr Weight Quantity 1 SET Read User's Manual Before Operating Input Voltage 100-240V~ Consumption Electricity... -
Page 23: Product Warranty
• As to matters not described above, compensation for damages is to be offered in accordance with standard of consumer dispute settlement in Framework Act on Consumers. ☞ Before requesting the service, look through the checklist of user's manual. ☞ Contact : Asnac Corp., Service Center : 051-634-2929 - 23 -... - Page 24 3F, 31, Sasang-ro 35beon-gil, Sasang-gu Busan, South Korea Tel. 051-634-2929 Fax. 051-955-2929...
