Summary of Contents for TiGHT AV SW-H411A
- Page 1 SW-H411A HDMI 2.0 4x1 Presentation Switcher with Audio Extraction All Rights Reserved Version: SW-H411A_2020V1.0...
- Page 2 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 4: Table Of Contents
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 2 1.3 Customer Service ....................2 2. Specification ....................... 3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ...................... -
Page 5: Product Introduction
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 1. Product Introduction Thanks for choosing the HDMI 2.0 4x1 Presentation Switcher. The switcher allows selection of four different sources (three HDMI inputs and one DisplayPort input) and will switch the selected video to HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. -
Page 6: Package List
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 1.2 Package List 1x SW-H411A HDMI 2.0 4x1 Presentation Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x IR Receiver 1x IR Remote 1x 3-pin Terminal Block ... -
Page 7: Specification
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 2. Specification Video Video Input (1) HDMI/MHL, (2) HDMI, (1) DP Video Input Connector (3) Type-A female HDMI, (1) DisplayPort HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit MHL Input Resolution Up to 1080P@60Hz DP Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit Video Output... - Page 8 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Control (1) FW, (1) EDID, (1) IR IN, (1) RS232, (1) TCP/IP (1) Micro-USB, (1) 4-pin DIP switch, Control Connector (1) 3.5mm mini jack, (1) 3-pin terminal block, (1) RJ45 General 4K@60Hz 4:4:4 ≤ 5m, HDMI 2.0 Cable Length 4K@60Hz 4:2:0 ≤...
-
Page 9: Panel Description

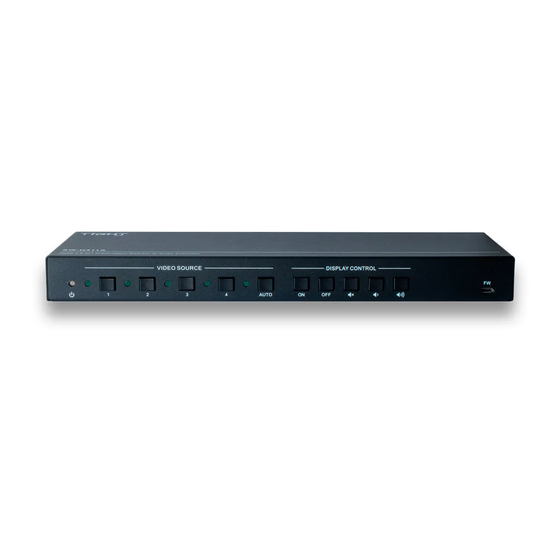

HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 3. Panel Description 3.1 Front Panel DISPLAY CONTROL AUTO ① Power LED: The LED illuminates red when the device is in standby, or illuminates ② VIDEO SOURCE: green when the device is power on. Press 1~4 button to select input source respectively, and its corresponding LED ... -
Page 10: Rear Panel
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 3.2 Rear Panel 1 2 3 4 1. HDMI/MHL IN 2. HDMI IN 3. HDMI IN 4. DP IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP ① VIDEO SOURCE: Three HDMI ports to connect HDMI video sources. ... -
Page 11: Button Control
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, the Auto Mode LED goes out. If need to change the input source, please directly press the 1, 2, 3 or 4 buttons, and the corresponding LED illuminates green immediately. -
Page 12: Edid Setting
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 5.4 EDID Setting The Extended Display Identification Data (EDID) is used for the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with different capabilities are connected to the switcher, the 4-pin DIP switch on the rear panel can be used to set the EDID to a built-in fixed value. -
Page 13: Ir Remote Control
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 6. IR Remote Control Connect the IR IN port to an IR receiver, the switcher can be controlled by the below IR ① Enter or exit standby mode. remote. ② Video input selection buttons (1~4) and AUTO ③... -
Page 14: Gui Control
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7. GUI Control The switcher also be controlled via TCP/IP, and the default static IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in webpage: Username: admin Password: admin... -
Page 15: Switching Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.1 Switching Tab Click the AUTO button to enable automatic switching mode. Click 1~4 button to select input source respectively. 7.2 Display Control Tab... -
Page 16: Audio Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction ON: Display On. OFF: Display Off. : Mute/unmute display audio. : Volume down display audio. : Volume up display audio. 7.3 Audio Tab Turn on or turn off the digital audio output. ... -
Page 17: Edid Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.4 EDID Tab Note: Before select EDID in this tab, please ensure the 4-pin DIP switch on the rear panel is on the “1111” position. Built-in EDID: There are ten built-in EDID values can be selected by this tab. ... -
Page 18: Rs232 Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.5 RS232 Tab Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in this box to control the third-party device which is ... -
Page 19: Interface Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.6 Interface Tab Modify the title bar label and button labels. 7.7 Access Tab... -
Page 20: Network Tab
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Modify the login password. Lock or unlock the front panel buttons. 7.8 Network Tab Set Static IP or Dynamic Host Configuration Protocol (DHCP). The default IP mode is DHCP, press and hold Volume Up and Volume Down buttons for 3 sec to enable Static IP Mode.The default Static IP address is 192.168.0.178. -
Page 21: Gui Upgrade
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 7.9 GUI Upgrade Please visit http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the update file and click Apply button, and then it will start upgrade process. -
Page 22: Device Control
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 8. Device Control 8.1 RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending the RS232 commands. The list of command is used to control the switcher. The RS232 control software (e.g. docklight) needs to be installed on the control PC to send RS232 commands. -
Page 23: Rs232 Commands
LOCK. Lock front panel buttons. Front Panel Locked! UNLOCK. Unlock front panel buttons. Front Panel UnLock! RST. Factory reset. Factory Default! SW-H411A V1.0.0 POWON! Front Panel UnLock! Local RS232 Baudrate Is 9600! GUI IP DHCP:ON! GUI_IP:192.168.0.178 HDMI Out Switch STA. - Page 24 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Command Function Example and Feedback TVVOL+. Volume up the display. CEC_TV_VOLUP! TVVOL-. Volume down the display. CEC_TV_VOLDOWN! CEC_TV_VOLMUTE/UN TVMUTE. Mute/unmute the display. MUTE! SetVolume:60. Set volume of analog L/R audio output to [x]. SetVolume:[x].
- Page 25 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Command Function Example and Feedback Step 2: Set the 4-pin DIP switch to “1111” status. Step 3: Send the command “EDIDW1101.”, DIP1001! and the feedback is “Please Send The EDID Please Set DIP 1111 File!”.
- Page 26 HDMI 2.0 4x1 Presentation Switcher with Audio Extraction Command Function Example and Feedback 9600 19200 38400 57600 115200 CMD_ON Save The “[Y]” can be 0 or 1. Success! If the “[Y]” is “0”, clear the saved 455665 command “xxx”. If the “[Y]”...
-
Page 27: Firmware Upgrade
HDMI 2.0 4x1 Presentation Switcher with Audio Extraction 9. Firmware Upgrade Please follow the steps as below to upgrade firmware by the FW port on the front panel: 1) Prepare the latest upgrade file (.bin) and rename it as “USERAPP.bin” on PC. 2) Power off the switcher, and connect the FW port of switcher to the PC with USB cable.
