A425801

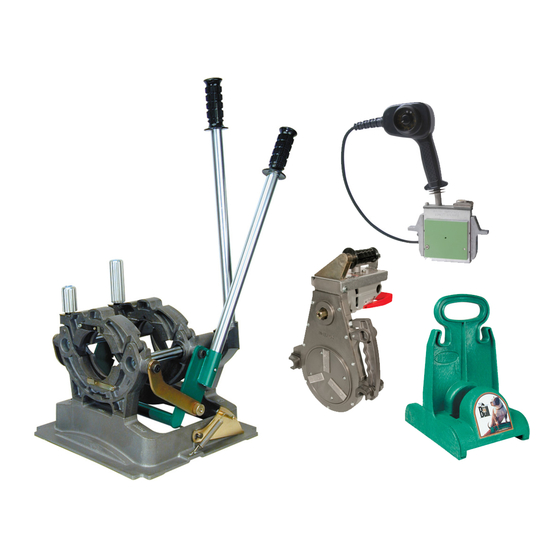

No. 14 Pitbull Jaw Bushing Replacement Kit
This instruction sheet describes the steps necessary to replace the guide rod bushings and
seals in a No. 14 Pitbull movable jaw.
Kit Contents: Removal tool (425801), Bushing installation tool (425802), Seal
installation tool (413006), Support plate (413004), Reamer (MJL00070)
Tools Necessary: Arbor Press (Minimum Working Height 10"), Slotted Screwdriver
1. Remove the movable jaw from the Unit.

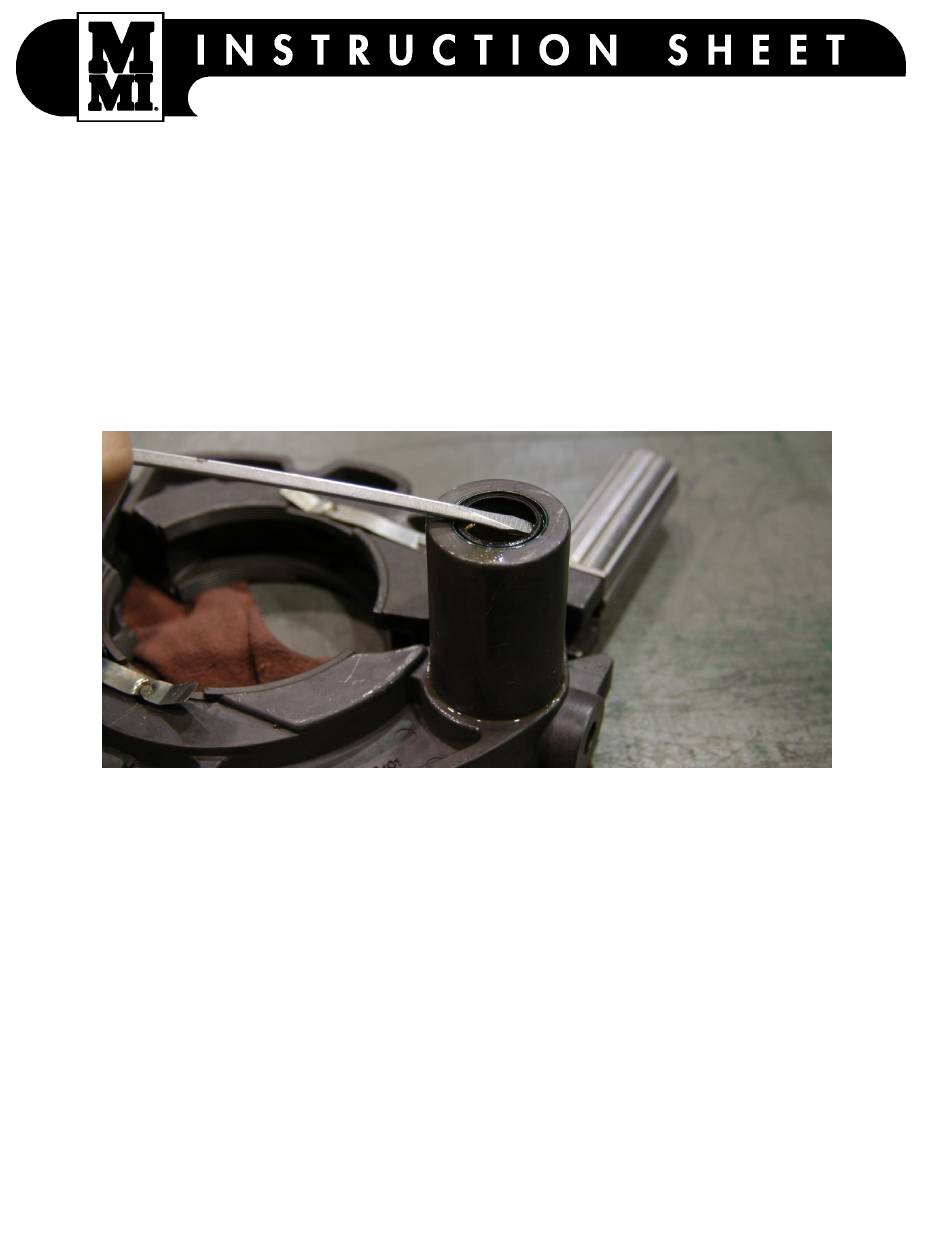

2. Remove the seals and wipers from one face of the movable jaw as shown in Fig. 1.
Fig. 1
3. Align the jaw to the support plate using the bushing installation tool (425802) as
shown in Figs. 2 & 3. (Note: The seals on the back side of the jaw will retain the jaw
bushing installation tool in place and guarantee alignment with the bore in the support
plate.)
42580101
1
2/17/09
