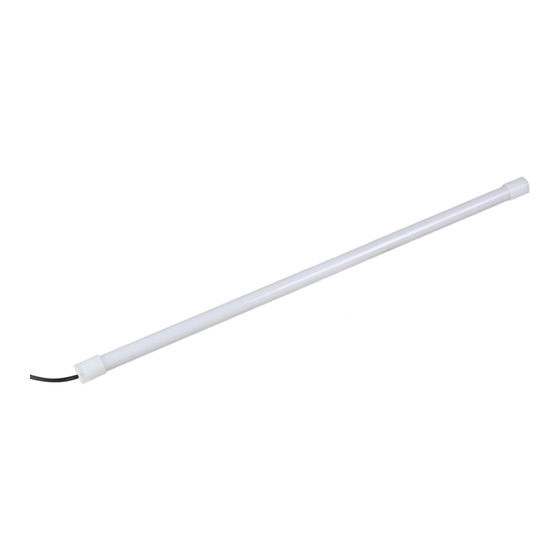

- Page 1 TUBE LED RGBW 24 VDC LED-TB-05 / 1-047-860 LED-TB-09 / 1-047-861 LED-TB-14 / 1-047-862 LED-TB-18 / 1-047-863 Instructions de montage Installation guide TENSION CONSTANTE CONSTANT VOLTAGE Version 10/19 LED-TB...
- Page 2 Caractéristiques techniques : Puissance 4 W / mètre / canal (couleur) Alimentation Tension constante CV (Constant Voltage) 4 x 24 VDC Anode commune Intensité variable 100 Lm / W Rendement lumineux Module de contrôle DMX DMX-CV / 1-046-758 Classe IP IP65 -25 °C ~ 95 °C Température max.
- Page 3 Dimensions / Dimensions: 24 mm min. 19 mm 7,5 mm 15,1 mm Angle d’éclairage : Illuminate angle:...
- Page 4 Schéma de raccordement DMX / Connection DMX: Noir | Black Rouge | Red Vert | Green Bleu | Blue Blanc | White OUTPUT 2 OUTPUT 2 OUTPUT 1 OUTPUT 2 OUTPUT 2 DMX-CC DMX-CV 1-046-759 1-046-758 DMX DRIVER RGBW URRENT 350 mA CONSTANT VOLTAGE Lightgroup Lightgroup...
