TROUBLESHOOTING CHART:

Problem Cause
1. No discharge a. No water
b. Valve not open
c. Eductor clogged
d. Foamer/Sprayer pivot not
in proper location
2. No concentrate draw a. Clogged foot strainer
b. Metering tip or eductor has scale
build-up
c. Low water pressure
d. Switch in "OFF" position
e. Air leak in chemical pick-up tube
f. Clear plastic tip installed in inlet
pick-up stem
3. Excess concentrate draw a. Metering tip not in place
4. Failure of unit to turn off a. Trigger lock is on
Hydro Systems 3798 Round Bottom Road, Cincinnati, OH 45244 Phone: (513) 271-8800 Fax: (513) 271-0160
Solution
a. Open water supply
b. Trigger not fully depressed
c. Look for obstruction, remove if possible
d. Rotate to stops, top or bottom
a. Clean or replace
b. Clean (descale)* or replace
c. Minimum 25 PSI (with water running)
required to operate unit properly
d. Switch to "ON" position
e. Put clamp on tube or replace tube if brittle
f. Replace with colored metering tip
a. Press correct tip fi rmly into barb on pick-up stem
a. Release trigger lock
10092190
10/09
FOAMER/SPRAYER
MODEL 5823 & 5824
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS
Please use this equipment carefully and observe all warnings andcautions.
***************************************************NOTE ********************************************
protective clothing and eyewear when dispensing chemicals or other materials or when working in the vicinity of all chemicals, fi lling or
WEAR
emptying equipment, or changing metering tips.
observe safety and handling instructions of the chemical manufacturer.
direct discharge away from you or other persons or into approved containers.
ALWAYS
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise CAUTION when maintaining your equipment.
reassemble equipment according to instruction procedures. Be sure all components are fi rmly screwed or latched into position.
KEEP
equipment clean to maintain proper operation.

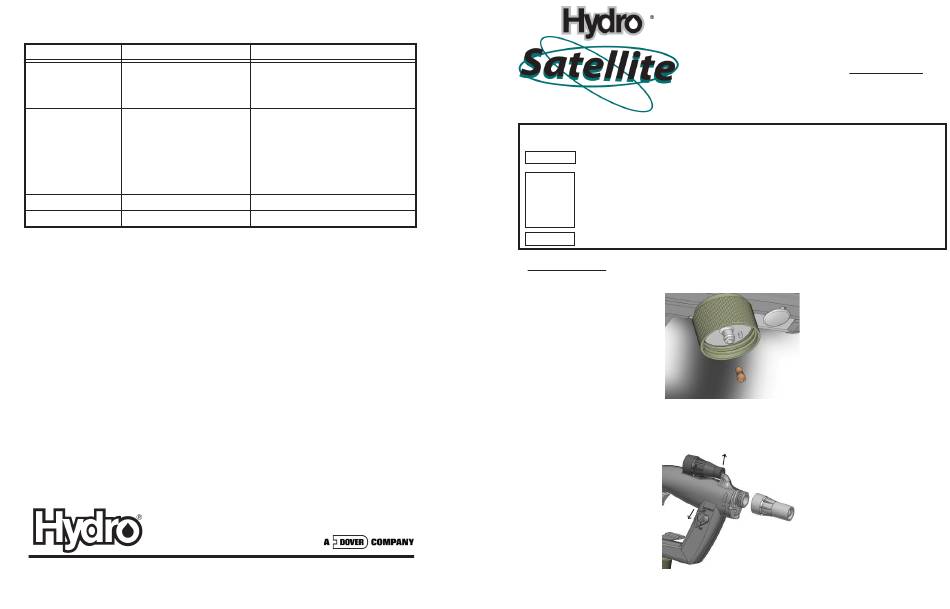

Installation and Operation:

1. Remove dispensing unit from box.
2. Select metering tip using guide on
next page. Install metering tip into barb
in center of cap. Cut product inlet tube to
desired lentgh for selected bottle, slide
weight over end of tube, insert footvalve
into end of tube. NOTE: REMEMBER
TO CHECK FOOT VALVE STRAINERS
PERIODICALLY FOR CLOGGING:
CLEAN IF NECESSARY.
3. Insert product inlet assembly into bottle and secure dispensing unit to bottle. Use velcro strap to further secure bottle
handle to dispensing unit.
4. Connect water supply hose of at least 3/8" ID to water inlet swivel.
(Minimum 25 PSI pressure, with water running, is required for proper operation.)
5. Install Foam or Spray Nozzle
to front of dispenser. Move product
switch to "ON" to dispense product.
Switch to "OFF" to rinse. Rotate
front nozzle for jet rinse.
6. To remove Foam or Spray
ON
Nozzle. Lift up on front. Snap other
Nozzle in place when not in use.

Package Should Contain:

1. Satellite dispenser
2. Product inlet tubing, 1/4" x 12"
3. Ceramic weight.
4. Footvalve
5. Metering tip kit
6. Instruction sheet.
LIFT
C
ONTINUED ON NEXT PAGE
....
