AI Synthesis AI003 Manual

Looping adsr

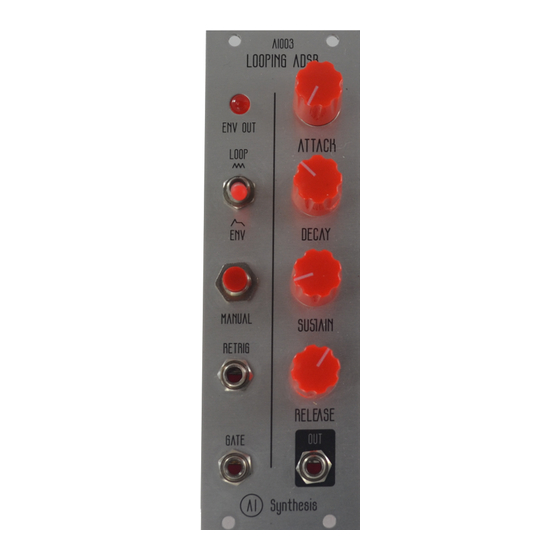

AI Synthesis AI003 Looping ADSR:

Manual

This is the Manual for the

A I003

L ooping E nvelope generator, you can purchase it by going to:

http://aisynthesis.com/product/looping-adsr-envelope-generator-diy-kit/

1. About the Looping ADSR

If you are new to DIY electronics, this is the third module you should build. The first module, the

A I001

Multiple

is ideal for beginners, as it teaches how to solder and signal flow. The

A I002 Mixer

familiarizes you with common electronic components, and is powered.

The AI003 is an idea third module as it is slightly more complicated than the mixer, but still much

easier than most modules, and acts as a great bridge between beginner and intermediate builds. The

Looping ADSR Envelope Generator DIY Kit is an ADSR Envelope Generator with the ability to also

function as a variable wave LFO. This module can be used to feed control voltage to a filter or vca to

modulate, for instance the volume of a sound source, or the cutoff of a filter.

Table of Contents

Do you have a question about the AI003 and is the answer not in the manual?

Page 1 The AI003 is an idea third module as it is slightly more complicated than the mixer, but still much easier than most modules, and acts as a great bridge between beginner and intermediate builds. The Looping ADSR Envelope Generator DIY Kit is an ADSR Envelope Generator with the ability to also function as a variable wave LFO.
