Summary of Contents for Müssel ASG 300

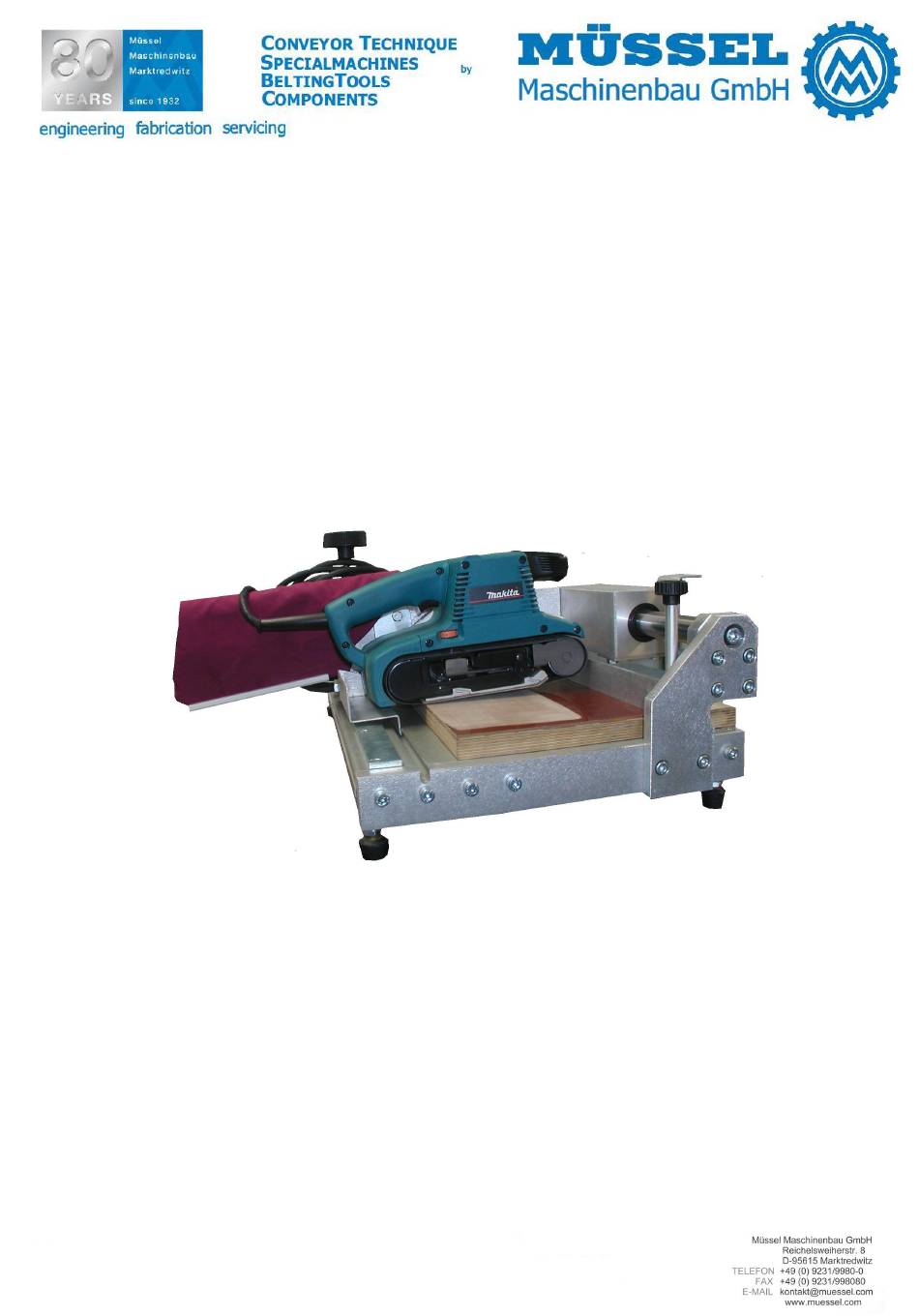

- Page 1 Operating Instructions Grinding Machine ASG 300 and ASG 1000 Müssel Maschinenbau GmbH Reichelsweiherstraße 8 95615 Marktredwitz GERMANY Tel.: +49 9231 9980-0 Fax: +49 9231 9980-80 E-Mail: kontakt@muessel.com Operating instruction: B013 Edition: 01/2015 Subject to alterations.
- Page 2 Maschinenbau GmbH and to thank you for the confidence you placed in us. This operating instruction provides you with important information for the proper and safe use of the grinding machine, ASG 300, ASG 1000. Owing to our experience over decades in the development and the fabrication of finishing tools for...
-
Page 3: Table Of Contents
Contents General Information Name and address of the manufacturer Identification of the machine CE-Declaration Conformity General Safety Instructions Basics Organisational measures Personnel selection and -qualification Safety instructions for specific operating phases Mobile devices Safety instructions Product Description Components and proper usage Mode of operation Technical data Accessories... - Page 4 Operating instruction: B013 Edition: 01/2015 Subject to alterations.
-
Page 5: General Information
Müssel Maschinenbau GmbH Reichelsweiherstraße 8 95615 Marktredwitz GERMANY Identification of the machine Product designation: Grinding machine Serial/Type designation: ASG 300, ASG 1000 Serial number: see type label Year of construction: see type label CE-Declaration see fixed label Operating instruction: B013 Edition: 01/2015 Subject to alterations. -
Page 6: Conformity
This declaration loses its validity upon the machine becoming altered or modified without the manufacturer’s approval. Product designation: Grinding machine Serial/Type designation: ASG 300, ASG 1000 Serial number: see type label see type label Year of manufacture: The following harmonized standards were applied: EN 60204-1 Electrical equipment of machines The particular operating instructions must be observed. -
Page 7: General Safety Instructions
General Safety Instructions The following document contains important information on serious risks when operating the tool described or important technical information on the tool or processes used. Symbols are used to highlight this important information and indicate as follows: This symbol is always to be found in connection with an endangerment and its respective signal word. -
Page 8: Personnel Selection And Qualification
Never make any modifications, additions or conversions which might affect safety without the supplier´s approval. Additional mountings or modifications have as consequence that the responsibility for the accordance with the EU-directive has to be assured by the person who carries out the mountings and the modifications. -
Page 9: Product Description
Product Description Components and proper usage The grinding machine is a portable fitting tool for fabricating (preparing) belting material. The belting material is grounded in a wedge shape. The grinding machine consists of the following components: Belt grinder Top part Grinding table Mode of operation Grinding machines of the ASG ... -
Page 10: Technical Data
Technical data ASG 300 ASG 1000 Belt width max. (at 90°) 1000 Belt width max. (at 80°) Belt width max. (at 60°) Belt thickness max. Length Width 1 165 Height Weight (net) 32,0 42,0 Voltage Capacity 1010 1010 Belt speed... -
Page 11: Preparing The Product For Usage
Preparing the product for usage Before operating the tool, the following steps must be carried out each time to ensure the tool works properly. Check the following points: Position Grinding machines and their components may only be put on surfaces that are suitable for fabricating. -
Page 12: Handling
Handling General, proper usage Grinding machines of the ASG ... type are used to fabricate (prepare) belting material, for example to prepare wedge splices. The maximum width of belting material that can be processes is 300 mm or 1000 mm at a cut-off angle of 60°. Adjusting grinding machine Put the grinding machine down on an even pad. - Page 13 Stick the double-sided adhesive tape exactly on the flange of the front cutting edge. Cut the overlaying adhesive tape off! Stick a second stripe of double-sided adhesive tape rearward the first stripe. Remove the membrane from the adhesive tape. Loosen the expander by opening the knurled-head-bolt. Please insert the prepared belt material in the grinding machine positioning the carrying side from the top to the backside and flush fit it on double-sided adhesive tape of the front cutting edge.
-
Page 14: Bevelling The First End Of The Splice
Swing the belt grinder ahead considering that the cable connection is located beyond the grinding area. Please adjust the belt grinder in such a way that the front belting edge is slightly in contact. Bevelling the first end of the splice (carrying side to the top) Switch the belt grinder on. -
Page 15: Bevelling The Second End Of The Splice
The process is completed when a wedge with a thin aspect on the front is generated. Please open the belt grinder by swinging it upwards, loosen the expander and remove the belt. Note: It is easier to remove the belt material while using a brush with some ethyl alcohol between the double-sided tape and the belt material. -
Page 16: Maintenance Work
Maintenance work Before operating the tool, the following maintenance work must be carried out each time to ensure that the tool works properly. If damage is established during maintenance that cannot be rectified on site, the tool must no longer be used and must be sent for repair to the manufacturer. Check the following each time before use: •...
