HYPNOTIC CONCEPTS LLC
`

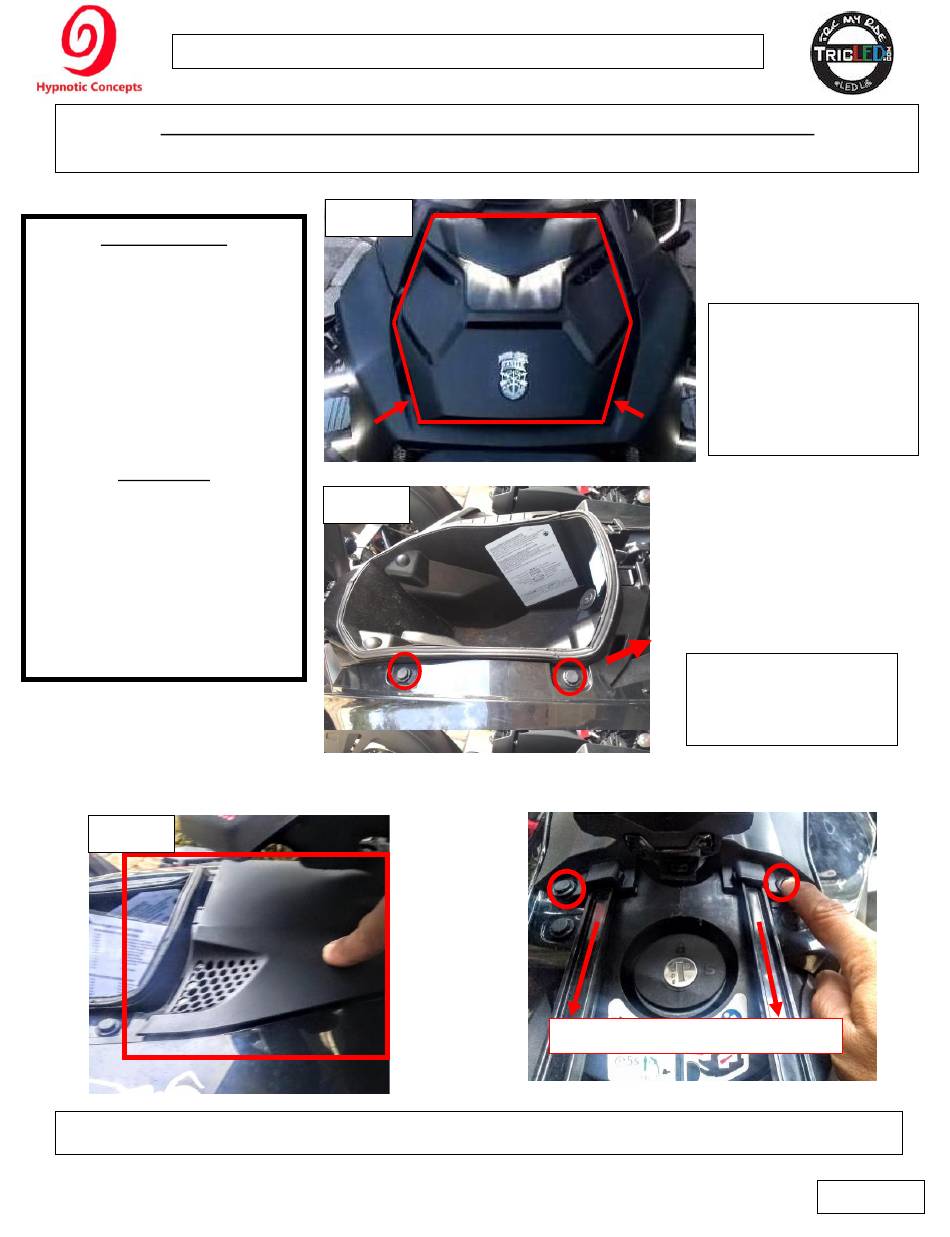

CAN-AM RYKER- 2" Auxiliary Driving Fog Lights Installation Instructions
**Please read thoroughly before proceeding with installation in order to ensure proper fit & functionality**
TOOLS NEEDED:
5mm Allen wrench
19mm wrench
19mm socket
(2) 10mm wrenches
Torque wrench
Needle nose pliers
Pin/nail punch
Small Hammer
PARTS LIST:
(2) TricLED waterproof
fog lights
(2) Control Arm Brackets
(2) Fog Light Brackets
(1) Push Button Bracket
(1) Harness with Push Button
(2) 6mm x 35mm bolts
(2) nylon spacers
(2) 6mm x 15mm bolts
(2) 6mm lock nuts
(4) 6mm washers
STEP 3.
Remove the upper fairing by sliding the fuel tank flap towards the rider and removing the 2 pushpins.
* info@hypnotic-concepts.com * 813-658-5774
STEP 1.
STEP 2.
emove the front hood
R
by lifting on the inner
tabs and pulling the
hood down away from
the Ryker.
emove side-fairings by
R
removing 3 pushpins
from both sides.
Slide gas tank flap towards rider
Page 1 of 9
Advertisement
Summary of Contents for Hypnotic Concepts SM-6873
- Page 1 HYPNOTIC CONCEPTS LLC * info@hypnotic-concepts.com * 813-658-5774 CAN-AM RYKER- 2" Auxiliary Driving Fog Lights Installation Instructions **Please read thoroughly before proceeding with installation in order to ensure proper fit & functionality** STEP 1. TOOLS NEEDED: 5mm Allen wrench 19mm wrench...
- Page 2 STEP 4. STEP 3. Before removing the storage compartment, remove the 2 screws from the front of the Remove hex nut with 19mm wrench and washer from storage compartment and disconnect the USB the upper ball joint located on the top of the upper power wires from the back of the storage suspension arm on both sides of the RYKER.
- Page 3 STEP 6. Attach control arm bracket to the upper control arm and ball joint. Reinstall the factory washer and nut that you removed in STEP 4 and tighten snug but DO NOT torque to spec. You will need to adjust the brackets to your liking once install of harness is complete. STEP 7.
- Page 4 STEP 8. Route the wire for each fog light underneath the bottom of the forward, upper control arm and secure with zip ties, then continue to route the wire and secure the wires underneath the cross bar with zip ties. STEP 9.
- Page 5 STEP 10. Towards handlebar Steering Column The end of the wiring harness has a black push button on it. Route that push button along the factory wiring harness thru the area where the upper fairing was removed in STEP 2 & follow the steering column until the push button is past the handlebar.
- Page 6 STEP 12. Next, remove the two bolts from the handlebar clamp of the side you will be mounting your push button bracket to. You will not be reusing these factory bolts. Place the (2) nylon spacers in the holes where the factory bolts were removed. Place the push button bracket on top of the nylon spacers and align the bolt holes.
- Page 7 Use the diagram below as a reference to continue to the next step. Attach the 12v accessory power harness provided in the kit to the 2 pin connector on the wire harness & route the power harness through the hole where the factory harness leads out towards the right fairing as your looking at the Ryker.
- Page 8 Plugs into 2 pin connector Remove the factory accessory connection and locate the 2 pin connector on the wiring harness provided (refer to the wiring diagram on the next page). Insert the female connector from the 12v accessory harness into one of the ports on the Ryker that will hold it in place.
- Page 9 If the fog lights do not turn on and off properly, start over from STEP 1 to ensure the installation was done properly. **Please read instructions thoroughly before proceeding with installation in order to ensure proper fit and functionality** HYPNOTIC CONCEPTS LLC * info@hypnotic-concepts.com * 813-658-5774 Page 9 of 9...
