1) Features:
Easy operation and settings with touch key function
displayed on LCD.
TPI Function.
Temperature Differential adjustable.
Easy Installation: Separate Base plate to aid
installation.
Daily Program period can be changed subject to
personal activities or commercial applications.
Informative Display.
Both Set & Room Temperature Displayed.
Anti-freeze protection in standby mode.
Lock or unlock keys to prevent unauthorized
changes.
Temperature Reading Calibration(offset).
Daily programming status indicator.
Battery low indicator.
Vacation setting to program a setback temperature
to save energy.
Comfort Override mode maintains the room
temperature on the desired setpoint during a set
period of time from 1~9 hours.
User settings can be retained when the thermostat
is power off.
2)Technical data:
Temperature control range : 5 ~ 35°C
Comfort setpoint adjustment range: 5 ~ 35°C
Temperature adjustment scale : 0.5°C
Temperature offset calibration range: ±3,5°C
Temperature reading calibration increments: 0.5°C
Antifreeze protection: 5.0°C (Standby mode Only)
Switching differential (Hysteresis) : 0.5°C /1 °C /1.5 °C
/2°C Default 0.5°C
Temperature sensor : 10K Ohm NTC
Temperature accuracy: ±0.5°C (@21°C)
Temperature display resolution: 0.1°C

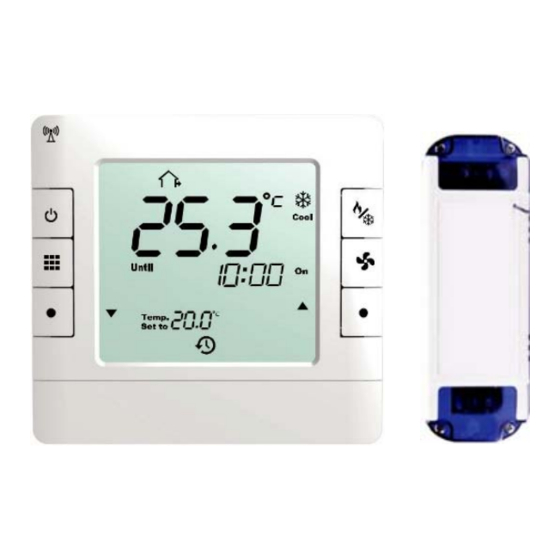

COMFORT DUO RF
COMFORT DOU RF-RV Wireless Thermostat
Installation Guide
COMFORT DOU RF is a surface-mounted
transmitter unit and COMFORT DOU RF-RV, a
receiver unit, it is designed to control the
heating and cooling systems efficiently with
precise control.
Sampling resolution: 1 minute interval
Material : Non flammable plastics
Storage temperature : -10°C ~ 60°C
Dimensions: 120W x 112 H x 27 D mm
3) Installation
4) Design and function
(1)
(3) (6)： Function key
(4)
(5)
1
Please force the upper edge of the cover to open
it and insert batteries (AA Alkaline Batteries x 2).
： Switch on/off
(2)
： Heat / Cool / Auto mode select.
: Fan mode select.
: Confirm
: Cancel
: NEXT ITEM, jump to next function setting
： Run Prog. Select.
Advertisement
Table of Contents
Summary of Contents for Eco2All COMFORT DUO RF
- Page 1 COMFORT DUO RF COMFORT DOU RF-RV Wireless Thermostat Installation Guide COMFORT DOU RF is a surface-mounted transmitter unit and COMFORT DOU RF-RV, a receiver unit, it is designed to control the heating and cooling systems efficiently with precise control. Sampling resolution: 1 minute interval...
- Page 2 COMFORT DUO RF : Next Item, jump to next item setting PROG.: 2 period / per day : PROG COPY, to run ”PROG COPY” function Program Time Cool Heat : Exit the setting mode and return to Run PROG 6:00 25ºC...
- Page 3 COMFORT DUO RF Press to return to Run PROG mode. Enter the item you want to configure by pressing (Confirm). Exit the setting mode and return to Run PROG mode by pressing 2 Set DATE 4-1. Set PROG Press the key to select the A.
- Page 4 COMFORT DUO RF 4-2. PROG copy E. Press after desired days for “copy” are completed. The display returns to start PROG Press the key to select the settings for PROG. setting mode. Press the key to start programming. Press 5 Set Differential...
- Page 5 COMFORT DUO RF 6 Temperature Reading calibration Temperature Offset is a feature that lets you adjust the In order to pair with RV-receiver, room temperature reading +/- 3.5°C. This helps if your please set a code from 0~15. thermostat is in a slightly warm or cold spot. To update...
- Page 6 COMFORT DUO RF Press to activate the temporary override mode, 6) OPERATION appears on the display. The time indicates when the MANUAL override will expire. Press key to cancel the Contents MANUAL override mode and return to Run PROG 1.---RUN PROG 7.---Key lock...
- Page 7 COMFORT DUO RF 2. Press the key to deactivate the Standby function Press key to cancel temperature and return to Run PROG mode. Power icon HOLD mode and return to Run and frost protection icon will disappear from LCD. PROG mode.
- Page 8 COMFORT DUO RF Operating Instruction 10 System Mode RF code (ID) setting 1. Press " " to change system mode. 2. The system will enter the HEAT ->>COOL ->>> AUTO-mode by pressing " " alternately. 3. The HEAT mode means system enter heating setting mode, the LCD will show HEAT.
