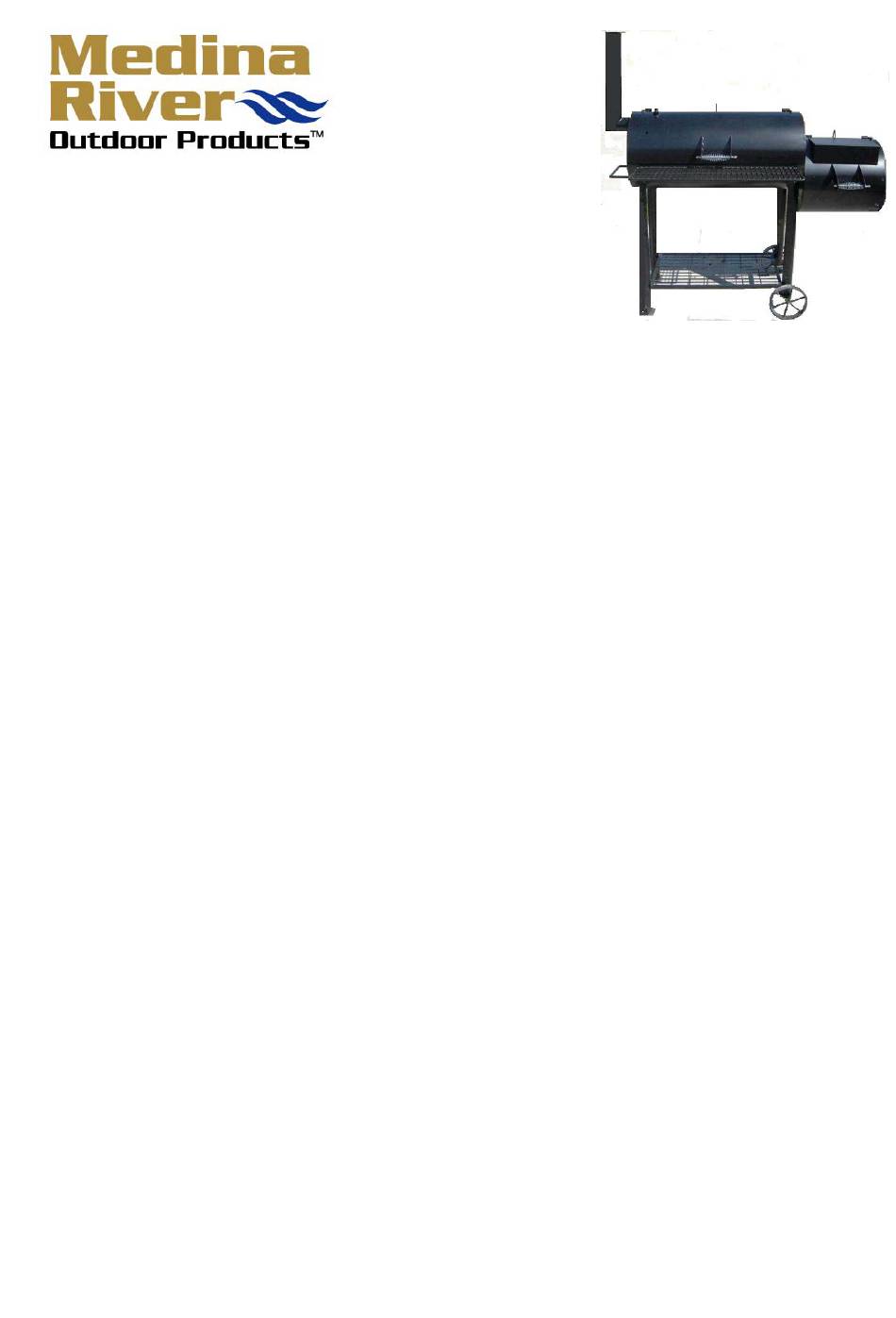

Assembly Instructions Jumbo Smoker # 067
If you have problems assembling or a part missing call 832 603 0863
CAUTION.....This Smoker is heavy it should be assembled by two or more people.
CAUTION.....Wear protective gloves during assembly...there are sharp edges.
(1) Remove the smoker, fire box, legs, grates, shelf, thermometer, and smoke stack
from the box. Un-wrap and separate.
(2) Locate the bolt & nut package. In the package you have:
4 each 1 ¼" bolts to attach the legs
4 each 3 ¼" bolts to attach the lower shelf
5 each ¾" bolts with nuts to attach the fire box
2 each acorn nuts for wheel assembly
(3) Install the 4 legs using the 1 ¼" bolts (4 each). Note: the nut is pre-attached to
the leg stud so all you have to do is locate and align the leg holes. NOTE: the
legs with the wheels go on the smoker on the end that the fire box is going to
be located on (the wheels should point out, not in...the legs without the
wheels will go on the front of the smoker where the pull handle is located.
Once you have the holes lined up simply screw the bolt into place. Tighten it
firmly but do not over tight to the point that you warp or dent the leg. Make
sure that the bolt is in firm enough that the leg does not rattle or move. HINT!!
Lay the smoker chamber on its side to perform this operation. If you have a
workbench available lay the smoking chamber on the table. Be careful if you
lay the smoking chamber on a table....secure it so it can not roll or fall off of
the table.
(4) When installing the wheels on the rear legs of the smoker put the long shaft
of the wheel to the inside next to the leg. It is easy to identify the leg where the
wheel is installed. It is the one with the threaded bolt sticking out. Remember,

Installing the legs

Installing the wheels
